Shadowspec UNITY Owner's Manual page 25

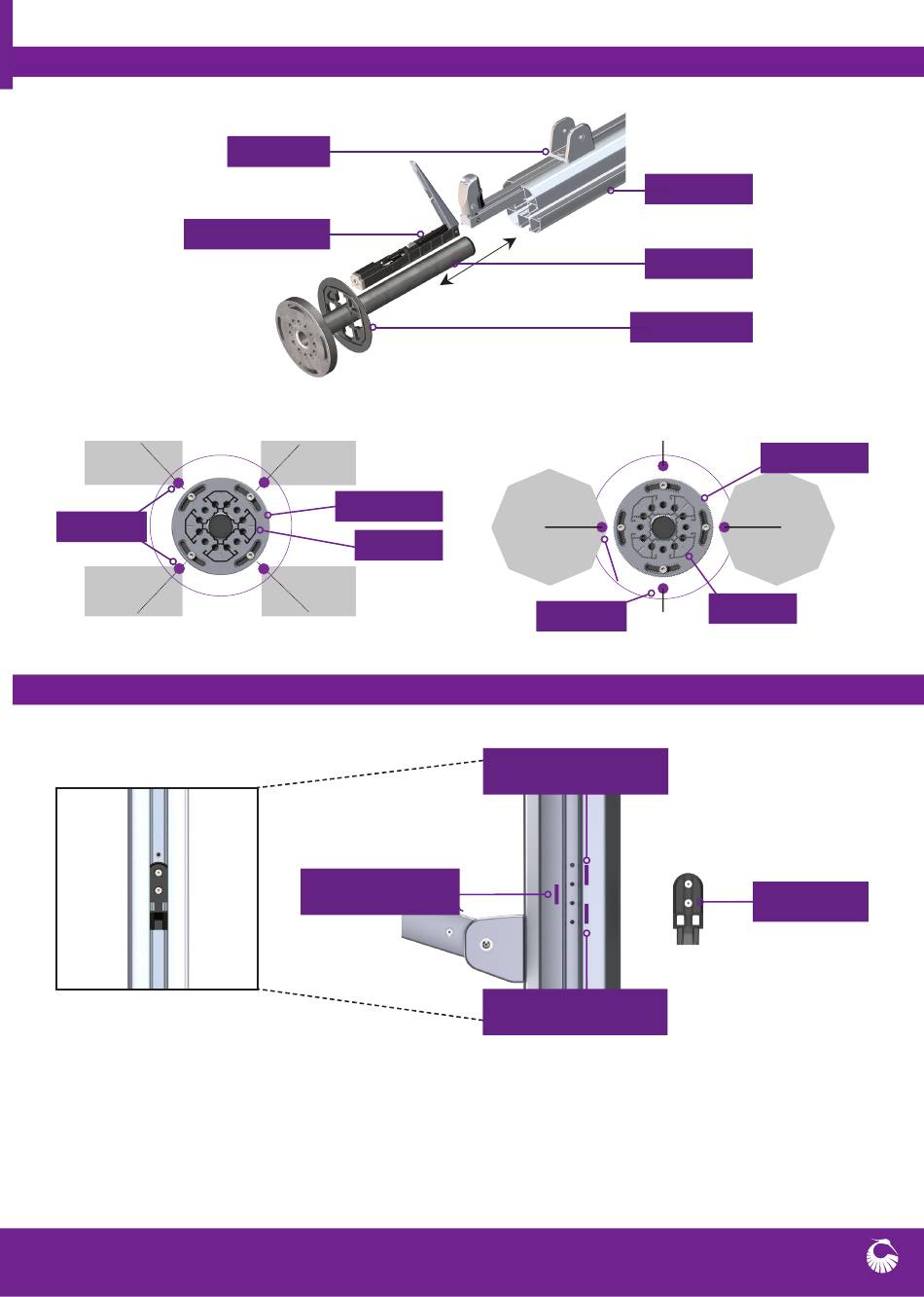

Figure M - Carriage and Rotation Lock Lever Assembly
Rotation Lock Lever
i.
Mast Orientation for Square Canopies
Canopy
Bolt Holes
Canopy
Figure N - Top Catch Permanent Operational Position
Note: The Top Catch can be moved to adjust the tightness of your canopy. The Middle position is the factory default
position, the Upper Position will tighten the canopy and the Bottom position will loosen the Fabric Canopy.
Tip:
Fabrics are malleable and stretch over their life time, you may find that down the line, you may need to adjust
your top catch to maintain taughtness
Carriage
Canopy
Untiy Spigot
Mast
Canopy
Middle Position
(Default)
Unity Mast
Untiy Spigot
Rotation Plate
ii.
Mast Orientation for Octagon Canopies
Canopy
Bolt Holes
Upper Position
(Tighten Fabric Canopy)
Bottom Position
(Loosen Fabric Canopy)
Untiy Spigot
Canopy
Mast
Top Catch
25
