Shadowspec UNITY Owner's Manual page 20

Surface Plate - Equipotential Bonding Point
For umbrellas installed within an arms reach of a body of water, then Equipotential Bonding must be performed by a
licensed electrical person prior to the product being used.
Note: The following instructions assume your pool area has been installed with an earth system built in.
The following work should be performed by a registered electrictian.

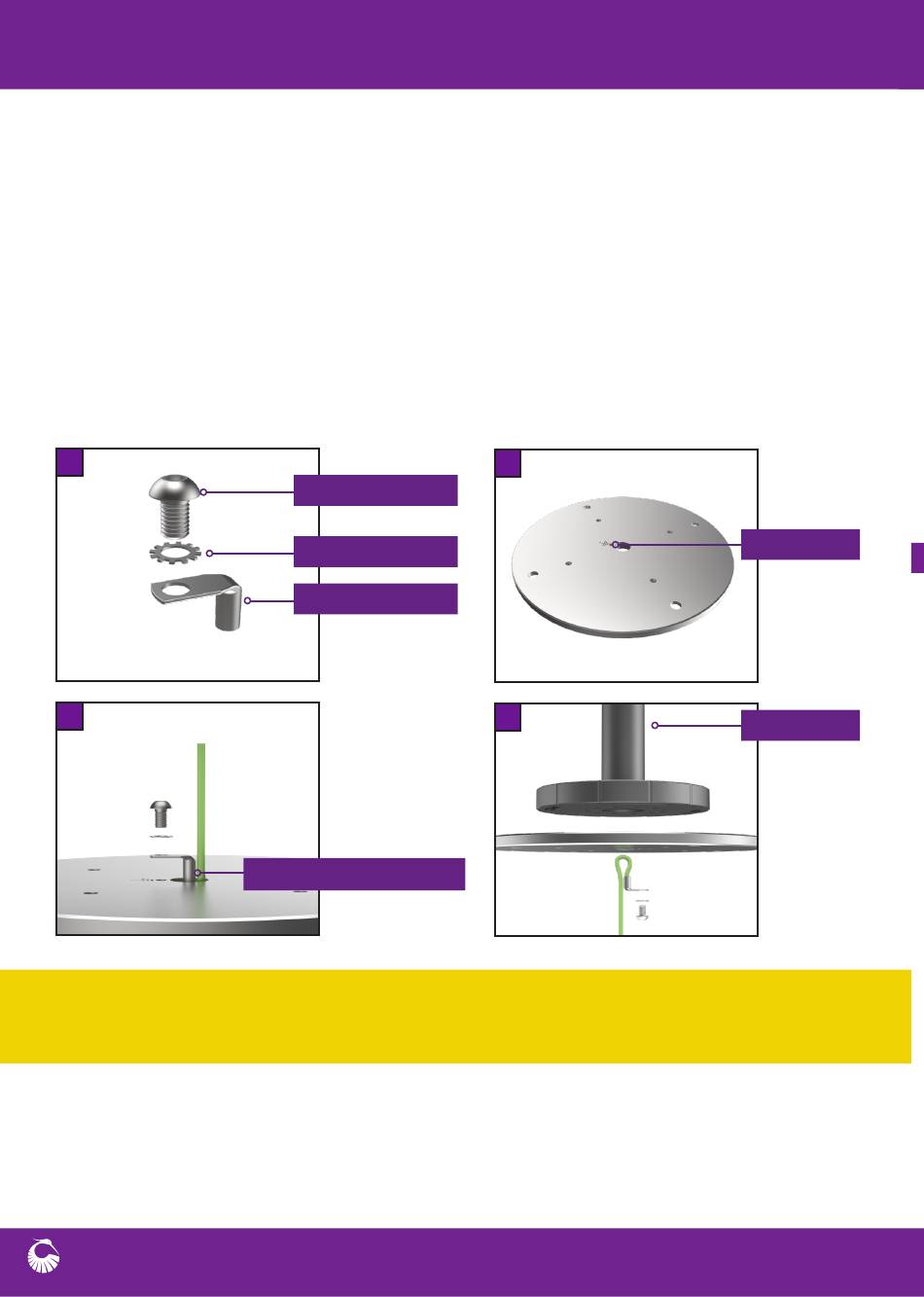

Step 1 Join your pre-installed earthing cable to the supplied Lug
Step 2 Use the supplied screw to affix the Lug underneath the Surface Plate
Note: You will need to install the Lug on top of the Surface Plate on Unity installations.
Step 3
Drop the earth cable through the central cable hole.
Step 4 Ensure the earth cable is attached at the other end to the pre-installed earth loop.
1.
3.
This product is subject to Equipotential Bonding compliance in accordance with the Australian/New Zealand Standards (AS/NZS 3000:
2018 Electrical Installations) otherwise known as the Wiring Rules and the USA code, NFPA 70, National Electrical Code (NEC) - 2020
edition - Article 680. If this product is installed within arms reach (NZ/AU*) or 5' (USA*) of a body of water including spa, swim spa or
pool, then Equipotential Bonding MUST be performed by a licensed electrical person prior to the product being used. This is a mandatory
requirement. As the purchaser of this product, you are responsible for ensuring compliance with this requirement at your own expense.
* Please verify the minimum distance required as stipulated by your specific regional regulations outside NZ/AU/USA
20
Stainless Steel Screw
Lock Washer
Right Angle Lug
Attach underneath Surface Plate
NOTICE
Equipotential Bonding Compliance Obligation
2.
4.
Bonding Point
Unity Spigot
