Shadowspec UNITY Owner's Manual page 21

Option 4 - Wall Base Bracket
For installation you will require:
• 4 X M16 Bolts and Washers.
• Hex Key Set - Included with umbrella.
• Additional Spanner/Socket wrench required for M16 Bolts.
• Wall Mount Bracket.
(Follow the indications on
Step 1
Choose your site carefully.
Step 2 Please ensure the wall you're mounting to is sound, strong and appropriate - seek appropriate advice if you
have any reservations.
Step 3 Affix the Spigot to the Wall Mount using the supplied bolts.
Step 4 Position the Wall Mount against the wall but on the ground so that the weight of your umbrella is partially
supported by the ground. Ensure a stable and solid support is provided by the ground -
Step 5 Mark hole locations on the wall and drill pilot holes
Step 6 Drill holes ensuring that they are parallel to each other and secure the Wall Mount bracket to the wall.

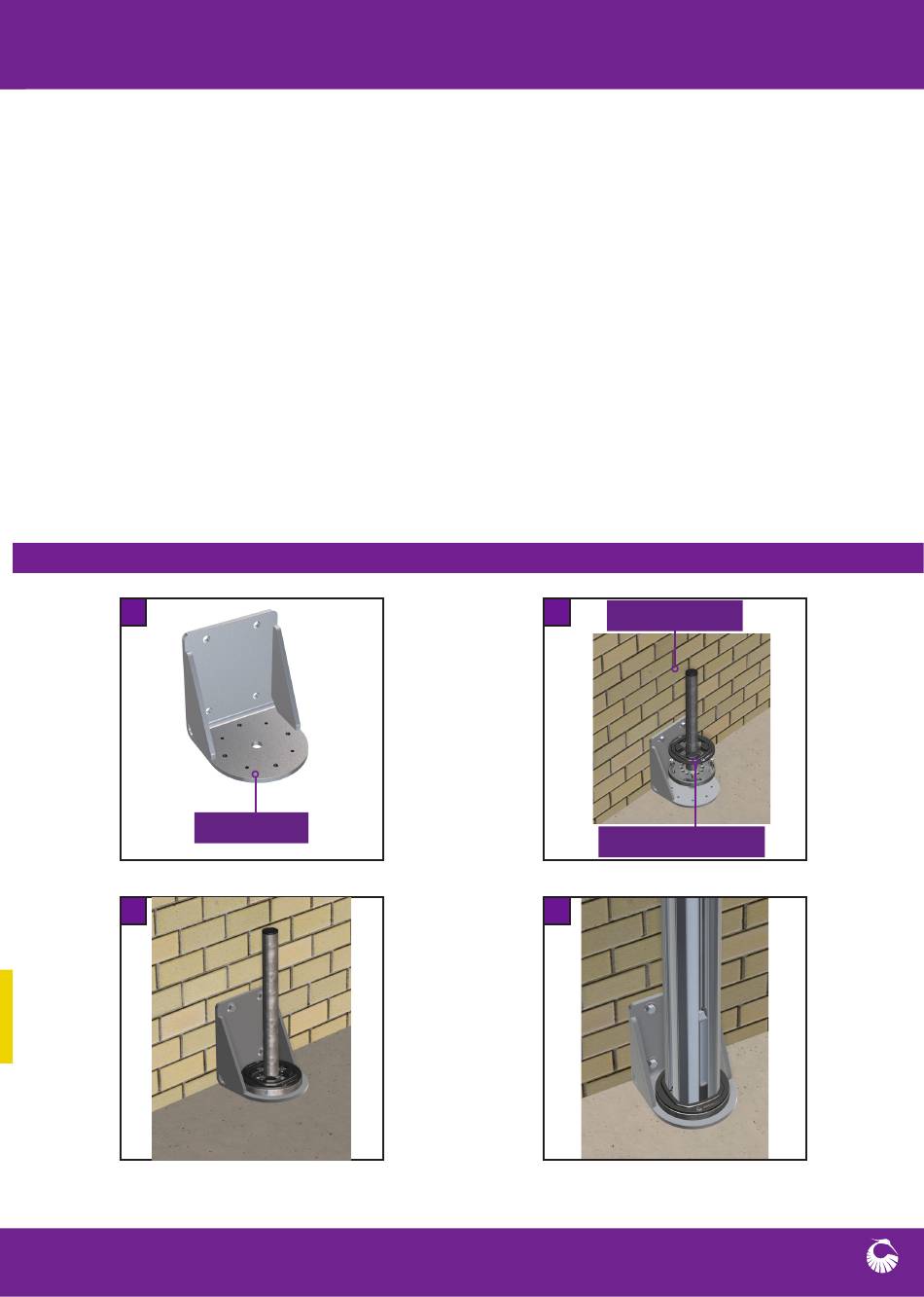

Figure L - Wall Mount
1.
Wall Mount
3.
to install the necessary parts)
Figure L
2.
Unity Spigot
Unity Rotation Plate
4.
NOTE: Refer to Spigot orientation diagram -
Figure L.
Page 10
21
