Stage 5 - Fabric Canopy Installation

Step 1
Click the Shadowglide Button to release the Frame and lower it to the middle of the Mast to make it easier
to attach the Fabric Canopy.

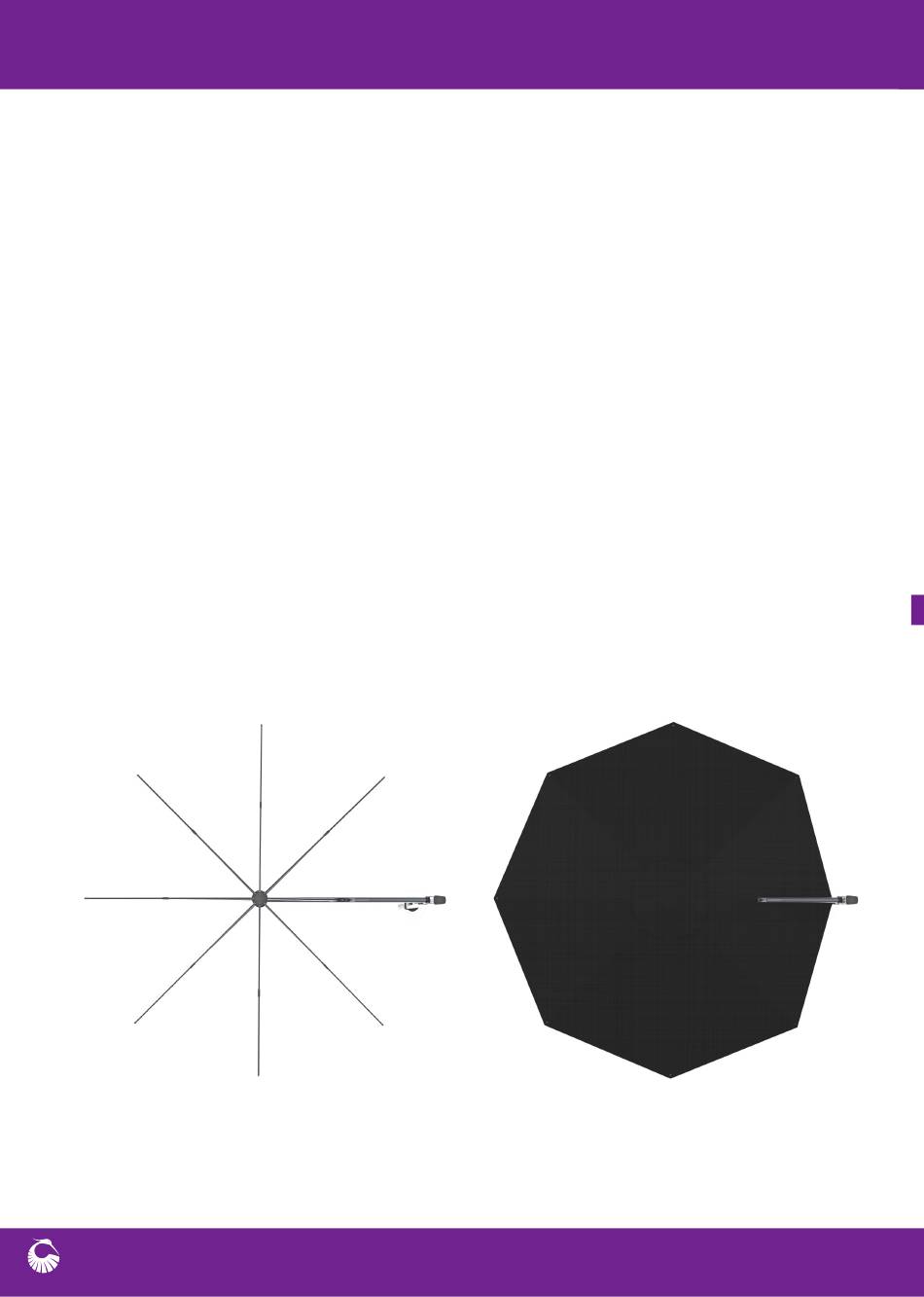

Step 2 Using a step ladder, (carefully) place the Fabric Canopy onto the Frame.
Step 3 Align the eyelets on the Fabric Canopy with it's correct Rib Tip and using your Hex Key, fix the Fabric Canopy
in place.
Note: Ensure they're tight to prevent them coming loose over time.
Step 4 Align the split in the canopy with the Through-Spar and apply the Fabric Canopy velcro to the Through-Spar,
securing the canopy.
Step 5
Align the final Fabric Canopy eyelets at the base of the Through-Spar and secure the final screw to the
Securing Point using your Hex Key as per
Step 6 Lift the Shadowglide Carriage to the top, slowly, to test the tension of the Fabric Canopy. See
tension adjustability options for the Fabric Canopy.
Step 7
Repeat for each Additional Frame (2-4).
Tip: Reposition the bottom velcro strip if needed so it is perfectly symmetrical onto the Through-Spar.
28
Step 3.
for
Figure N
