Shadowspec UNITY Owner's Manual page 23

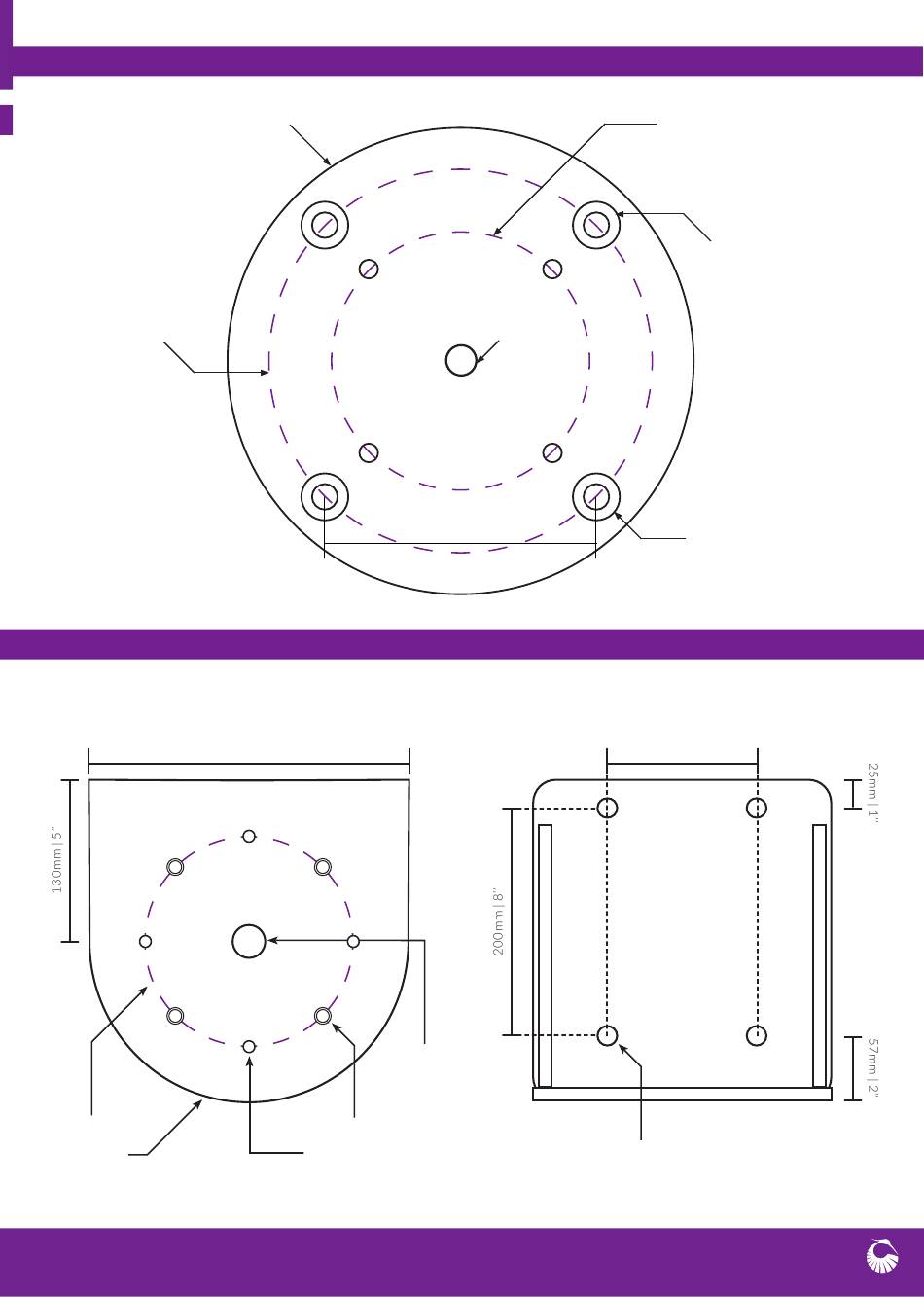

Surface Plate - Spec Sizes
Surface Plate - Spec Sizes
Ø 320mm |1' 3/5''
Ø 270mm | 11''
Wall Base Bracket - Spec Sizes
260mm | 10''
Ø 170mm | 7''
R130mm | 5''
Ø 20mm | 4/5''
191mm | 8''
26.5mm | 1''
M10 x 1.5 (4 Places)
Ø 11.5mm | ½'' (4 Places )
Ø 170mm | 7''
Ø 17mm | 7/10''
Countersunk
Turn plate over for
non-countersunk fixings
130mm | 5''
Ø 18mm | ¾'' (4 Places )
