Summary of Contents for Lantronix SISTP1040-551-LRT

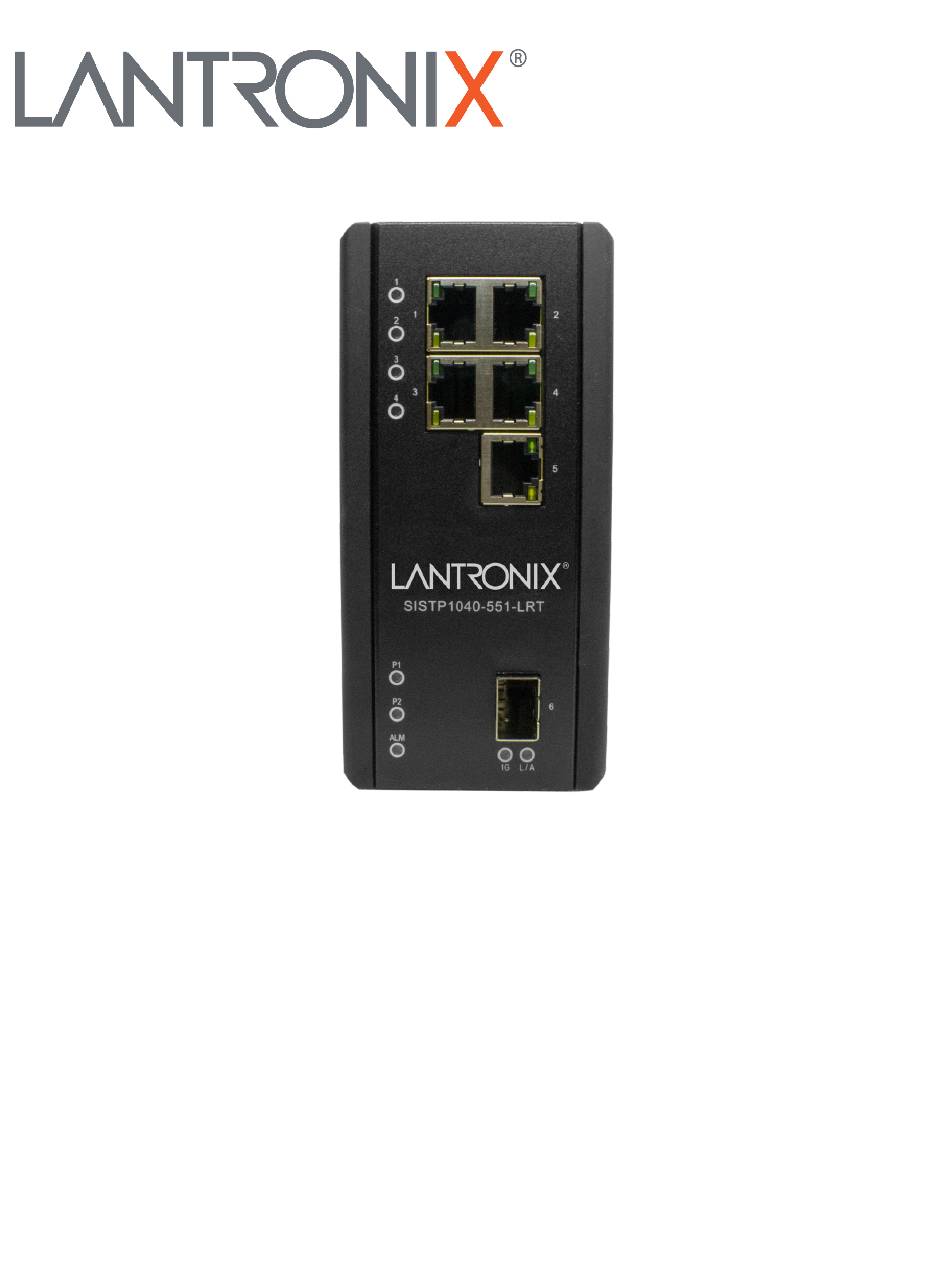

- Page 1 SISTP1040-551-LRT Unmanaged Hardened Gigabit Ethernet PoE++ Switch Install Guide Part Number 33841 Revision A January 2022...
- Page 2 SISTP1040-551-LRT Install Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Table Of Contents
Lantronix SISTP1040-551-LRT Install Guide Table of Contents Introduction ...............................4 Product Description ..............................4 Ordering Information ...............................4 About This Manual ..............................4 Related Manuals ..............................4 Features ..................................4 PoE Features ..............................5 Specifications ................................5 Application Example ...............................6 Installation .................................7 Package Checklist ..............................7 Cautions and Warnings ............................7 Safety Instructions ..............................7... -
Page 4: Introduction
(1) 100/1000 dual speed SFP slot. It can deliver up to 90 Watts on each PoE++ port simultaneously. The SISTP1040-551-LRT can be used to power PoE lighting, high powered IP cameras and digital signage. It has redundant input power connections to ensure safe, reliable operation in temperatures of -40°C to +75°C. -
Page 5: Poe Features
Lantronix SISTP1040-551-LRT Install Guide • 2k MAC forwarding addresses Industrial design: fanless, wide operating temperature range (-40 to +75°C), Dual power input (48~57 • VDC), IP30 DIP switch to enable/disable Power alarm, Broadcast storm limit, Jumbo Frame support, PoH mode / •... -
Page 6: Application Example
Lantronix SISTP1040-551-LRT Install Guide Application Example The switch is ideal for applications such as PoE Lighting, IP camera with heater, digital signage, and situations involving PDs that require higher power PoE. 33841 Rev. A... -
Page 7: Installation
Lantronix SISTP1040-551-LRT Install Guide Installation Package Checklist Verify that the box contains these items: One SISTP1040-551-LRT switch Two Wall-mount brackets One DIN-Rail Clip Four M4 Screws (for Wall mount brackets and DIN Clip) One DC power Terminal Block One printed Quick Start Guide One documentation postcard Contact your sales representative if any item is missing. -
Page 8: Dimensions
Lantronix SISTP1040-551-LRT Install Guide Dimensions 33841 Rev. A... -
Page 9: Front, Top, And Back Panels
Lantronix SISTP1040-551-LRT Install Guide Front, Top, and Back Panels The front panel provides the LEDs and Ethernet interface connections (RJ45, Fiber/SFP). The top panel contains the Power and Alarm connections, Ground screw, and DIP switch. The back panel contains holes for DIN-Rail and Wall Mounting. -
Page 10: Din-Rail Mounting
Lantronix SISTP1040-551-LRT Install Guide DIN-Rail Mounting 1. Screw the DIN-Rail bracket onto the switch with the provided bracket and screws. 2. Hook the unit over the DIN rail. 3. Push the bottom of the unit towards the DIN Rail until it snaps into place. -
Page 11: Ground Connection
Lantronix SISTP1040-551-LRT Install Guide Ground Connection The switch must be properly grounded for optimum system performance. Use 18 AWG minimum, green and yellow wires. Ethernet Interface Connection (RJ45 Ethernet) The switch provides two types of interfaces: electrical (RJ45) and optical (SFP). To connect the Ethernet interface via RJ45: 1. -
Page 12: Ethernet Interface Connection (Fiber, Sfp)
(RX) port of the other device, and the receive (RX) port of the switch connects to the transmit (TX) port of the other device when making your fiber optic connections. Note: see the related SFP device manual for important Safety warnings. See the Lantronix SFP page for our full line of SFP transceivers. -
Page 13: Dip Switch Settings
Lantronix SISTP1040-551-LRT Install Guide DIP Switch Settings The top panel 5-position DIP switch is labeled SW and is located directly below the terminal block connector. The default setting for all is Off . DIP # State Description Note Enable the Power alarm. -
Page 14: Poe Poh / Poe 802.3Bt Mode
Lantronix SISTP1040-551-LRT Install Guide 4. PoE PoH / PoE 802.3bt Mode PoH (Power over HDBaseT): HDBaseT is a global standard for distribution of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single cable, for up to 100 meters (328 feet). -
Page 15: Alarm Relay Connection
Lantronix SISTP1040-551-LRT Install Guide Alarm Relay Connection The alarm relay output contacts (ALM) are located in the middle of the DC terminal block connector as shown right and below. By inserting the wires and setting the DIP switch of the respective Port Alarm to “ON”, the relay output alarm will detect any port failures and... -
Page 16: Power Connection
Lantronix SISTP1040-551-LRT Install Guide Power Connection The switch can be powered from one or two power supplies. Switch power input ranges are: 48V-57V for PoE • • 50V-57V for PoE+ 52V-57V for PoE++ • 1. Insert the terminal block into the switch top panel receptacle. -
Page 17: Power Supply Information
Lantronix SISTP1040-551-LRT Install Guide Power Supply Information Lantronix offers two compatible power supply options: PS-DC-DUAL-5624T and 25160. 25160 Hardened DIN Rail Mounted Power Supply Input: 90-264VAC, 127-370VDC. Output: 48-55VDC, 10A, 480W 25160 Features 94% High Efficiency • 150% Peak Load •... -
Page 18: 25160 Dimensions And Terminal Pin Assignments
Lantronix SISTP1040-551-LRT Install Guide 25160 Dimensions and Terminal Pin Assignments 25160 Views Front Back 33841 Rev. A... -
Page 19: Ps-Dc-Dual-5624T Power Supply
Lantronix SISTP1040-551-LRT Install Guide PS-DC-DUAL-5624T Power Supply Stand-Alone Hardened Power Supply; 345 Watt Isolated Power Supply with 56VDC and 12/24VDC Dual Output. See the PS-DC-DUAL-5624T Power Supply Install Guide for more information. See the PS-DC-DUAL-5624T product page at https://transition.com/products/accessory/ps-dc-dual-series/. 33841 Rev. A... -
Page 20: Troubleshooting
Lantronix SISTP1040-551-LRT Install Guide Troubleshooting LED Status Indicators LED Name Condition/Color Meaning On Green Power is applied/supplied to Power 1. No power is applied/supplied to Power 1 On Green Power is applied/supplied to Power 2. No power is applied/supplied to Power 2. -
Page 21: Troubleshooting Procedure
If the switch fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action. First isolate the problem to the SISTP1040-551-LRT; troubleshoot any other network gear (e.g., other switches, remote devices such as IP cameras, WAPs, midspan injectors, etc.) to isolate the problem to the SISTP1040-551-LRT. -
Page 22: Regulatory Agency Information
Lantronix SISTP1040-551-LRT Install Guide Regulatory Agency Information Vibration, shock & freefall: IEC60068-2-6, -27, -32 Certification compliance: CE/FCC Electrical safety: EN/UL62368-1/CSA C22, EN61010-1/CE EMC: FCC Part 15 Subpart B Class A, CISPR 32 (EN55032) Class A, EN61000-6-2/4, EN-50121-4 RoHS and WEEE:... -
Page 23: European Regulations
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. -
Page 24: Declaration Of Conformity
Declaration of Conformity Manufacture’s Name: Lantronix, Inc. Manufacture’s Address: 7535 Irvine Center Drive, Suite100, Irvine, CA 92618, USA Declares that the product(s): SISTP1040-551-LRT Conform(s) to the following Product Regulations: FCC Part 15 Subpart B Class A, EN 55032:2012, EN 55024:2010... -
Page 25: Record Device And System Information
Describe your network environment (layout, cable type, cable distance, etc.): __________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ Any previous Return Material Authorization (RMA) numbers: _______________________________________ List Lantronix or third party equipment in the network (e.g., PCs, servers, switches, routers, or hubs, remote devices (camera, etc.), SFPs, etc.): ___________________________________ ________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 26 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Phone: +1.952.358.3601 or 1.800.260.1312 Email: techsupport@transition.com Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33841 Rev. A...
