Lantronix SISPM1040-L3 Series Quick Start Manual

SISPM1040-xxxx-L3
(SISPM1040-2248-L3, SISPM1040-3248-L3,
& SISPM1040-3166-L3)
Quick Start Guide

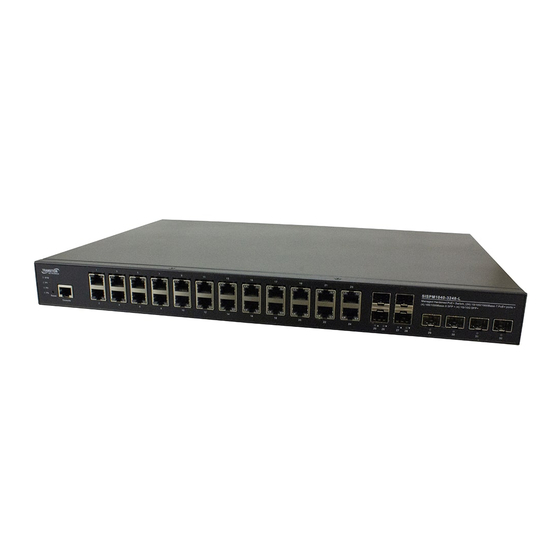

The Lantronix SISPM1040-xxxx-L3 are next generation Industrial L3+ managed GbE switches. These affordable
managed switches provide a reliable infrastructure for your business network.
Note: See the full Install Guide for important information: Product Description, Ordering Information, Related
Manuals, Features & Specifications, Application Example, Pre-Installation, Safety, Unpacking, Package Contents,
Front Panel, LED Descriptions, Reset Button, Back Panel, Installing the Switch, Mounting the Switch, Installing
SFP/SFP+ Modules, Installing DAC Cables, Connecting PDs, Connecting Power Cords, Connecting DI/DO Relay
Wires, DI/DO Use Case, Power Supply Info, Initial Switch Config, Troubleshooting, Compliance & Safety
Information, Cautions, Warnings, & Electrical Safety Warnings.

Ordering Information:

SISPM1040-2248-L3: Rack mountable hardened L3 switch with
10/100/1000 PoE+ ports, four 100/1000 dual speeds SFP ports, and
SISPM1040-3248-L3: Rack mountable hardened L3 switch with
10/100/1000 PoE+ ports, four 100/1000 dual speeds SFP ports, and
SISPM1040-3166-L3: Rack mountable hardened L3 switch with
PoE+ ports, four 100/1000 dual speed SFP ports and

Unpacking:

1. Carefully unpack all SISPM1040-xxxx-L3 contents. 2. Verify receipt of all components; listed
below. 3. Place the Switch and related materials in the desired install location. 4. Save the SISPM1040-xxxx-L3
shipping carton and packing materials for possible future use.

Package Contents:

a printed Quick Start Guide, Mounting kit (Option), and one RJ45 to DB9 Serial Console Cable (Option).

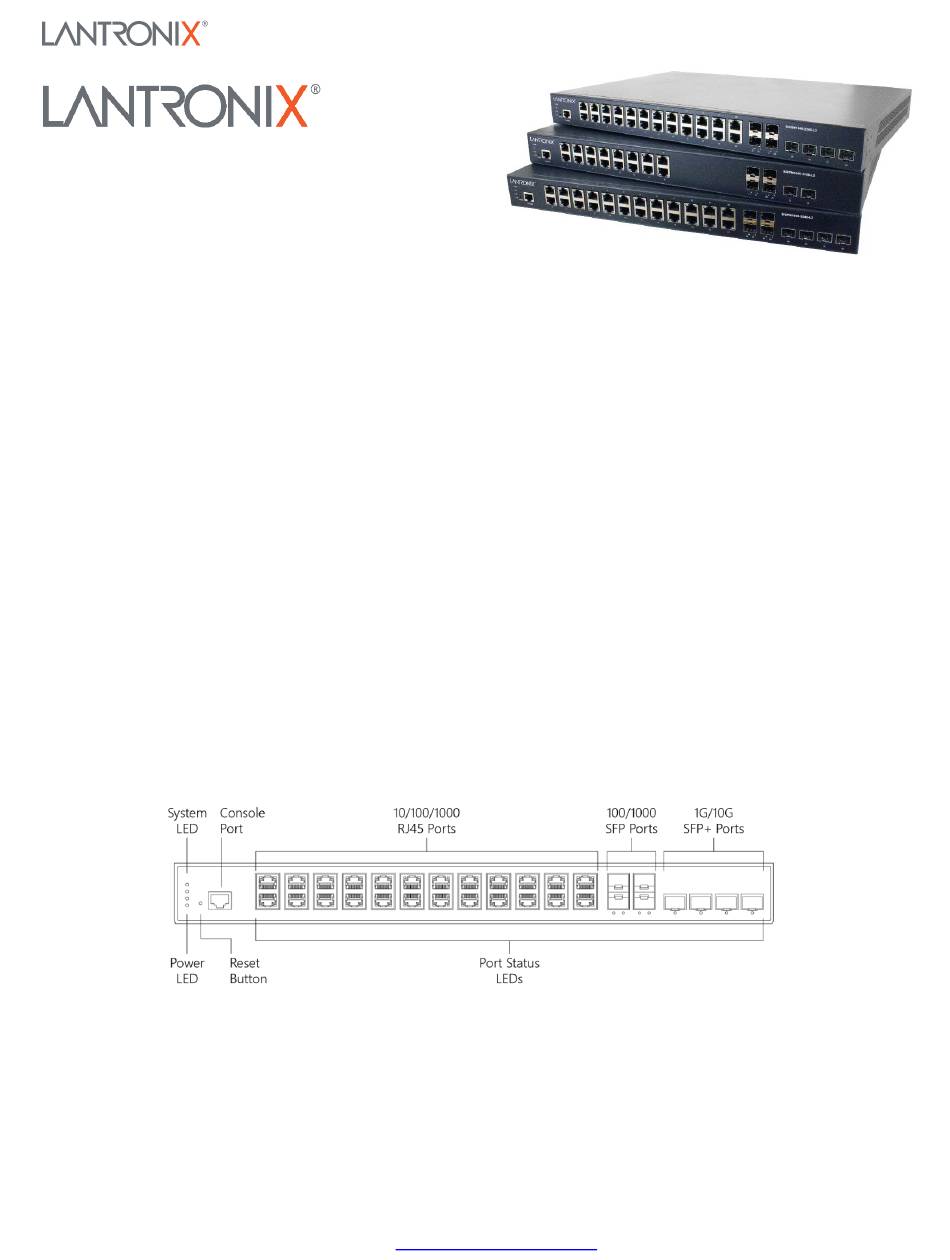

Front Panel:
The switch front panel provides the LEDs, ports, and Reset button:
LED Descriptions:
There are three types of LEDs as follows:
System LED: Indicates if the switch is powered up correctly or not, or, indicates if there is a system alarm
triggered for troubleshooting. Green On = the switch is powered ON correctly. Green Off = the switch is not
receiving power. Red On = an abnormal state (e.g., over the operating temperature range) was detected.
Power LEDs ( P1/P2: DC LED, P3: AC LED): Indicates if the switch is powered up correctly or not.
P1/P2 Green On = The switch is powered ON correctly. Green Off = The switch is not receiving DC power.
Power3 Green On = The switch is powered ON correctly. Green Off = The switch is not receiving AC power.
33854 Rev. A
Make sure you received one Switch, AC Power cord (Option), four adhesive rubber feet,
The LEDs on the front panel provide users with switch status checking and monitoring.
https://www.lantronix.com/
SISPM1040-xxxx-L3 Quick Start Guide
136Gbps switching capacity,
four 1G/10G SFP+ slots.
136Gbps switching capacity,
four 1G/10G SFP+ slots.
80Gbps switching capacity,
two 1G/10G SFP+ slots.
twenty-two
twenty-four
sixteen 10/100/1000
Page 1 of 4
