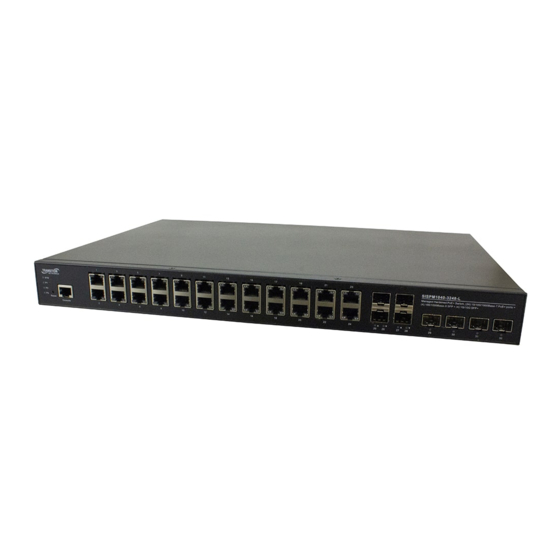

Lantronix SISPM1040-3 L Series Install Manual

Managed hardened gigabit ethernet poe+ rack mountable
Hide thumbs Also See for SISPM1040-3 L Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Managed Hardened Gigabit Ethernet PoE+ Rack
SISPM1040-3166-L Managed Hardened PoE+ Switch, (16) 10/100/1000Base-T PoE+ ports +
SISPM1040-3248-L Managed Hardened PoE+ Switch, (24) 10/100/1000Base-T PoE+ ports +
SISPM1040-3xxx-L
Mountable Switches
(4) 100/1000Base-X SFP + (2) 1G/10G SFP+
(4) 100/1000Base-X SFP + (4) 1G/10G SFP+
Install Guide
Part Number 33762
Revision G April 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SISPM1040-3 L Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lantronix SISPM1040-3 L Series

Summary of Contents for Lantronix SISPM1040-3 L Series

  • Page 1 SISPM1040-3xxx-L Managed Hardened Gigabit Ethernet PoE+ Rack Mountable Switches SISPM1040-3166-L Managed Hardened PoE+ Switch, (16) 10/100/1000Base-T PoE+ ports + (4) 100/1000Base-X SFP + (2) 1G/10G SFP+ SISPM1040-3248-L Managed Hardened PoE+ Switch, (24) 10/100/1000Base-T PoE+ ports + (4) 100/1000Base-X SFP + (4) 1G/10G SFP+ Install Guide Part Number 33762 Revision G April 2022...
  • Page 2 Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.

  • Page 3: Safety Warnings And Cautions

    Anyone using this product in such an application without express written consent of an officer of Lantronix does so at their own risk and agrees to fully indemnify Lantronix for any damages that may result from such use or sale.

  • Page 4: Table Of Contents

    Lantronix SISPM1040-3xxx-L Install Guide Contents ........................3 Safety Warnings and Cautions ..........................5 Chapter 1 - Introduction About This Manual ..............................5 Related Manuals ..............................5 Key Features ................................6 Benefits ..................................6 Ordering Information ..............................7 Specifications ................................7 Software Features ..............................17 Applications ................................

  • Page 5: Chapter 1 - Introduction

    Use a Web browser or the CLI to initially configure the switch, and Troubleshoot the switch. • Note that this manual provides links to third party web sites for which Lantronix is not responsible. Related Manuals A printed Quick Start Guide is shipped with each device.

  • Page 6: Key Features

    Lantronix SISPM1040-3xxx-L Install Guide Key Features DMS (Device Management System) built in  Compliant with IEEE 802.3af PoE and 802.3at PoE+  PoE Configuration, PoE Scheduling, PoE Power Delay, and PoE Auto Power Reset, Always on PoE  IEEE 1588v2 PTP (TC) ...

  • Page 7: Ordering Information

    Input: 90-264 VAC, 127-370 VDC; Output: 48 ~ 55 VDC, 10A, 340 Watts (Optional 25160 Second Power Supply) SISPM1040-3248-L-xx Optional Power Cord; order separately where xx = NA, JP, etc. EDCA-DIO-01 Enclosure Door Contact Alarm SFPs See Lantronix webpage. Specifications Port Configuration Total RJ45 Uplinks SFP+ Model...
  • Page 8 Lantronix SISPM1040-3xxx-L Install Guide Voltage and Frequency Model AC Input Voltage and Frequency DC Input Voltage SISPM1040-3248-L 100-250 VAC, 50~60 Hz 52 – 57 VDC SISPM1040-3166-L PoE Power Model Available PoE Power # of Ports that Support PoE (15.4W) and PoE+ (30.0W)
  • Page 9 Lantronix SISPM1040-3xxx-L Install Guide Compliance FCC Class A; CE; Safety: EN60950, NEMA TS-2 and UL Agency NEMA TS 2-2016 (2.2.7 Transients Temperature and Humidity). 2.2.8 Vibration. 2.2.9 Shock). Compliant Agency IEC61850-3, IEEE 1613, UL, Class 1 Div 2 Mechanical Stability...
  • Page 10 Lantronix SISPM1040-3xxx-L Install Guide Power Consumption SISPM1040-3166-L Maximum Power Consumption (without PoE): 36 Watts SISPM1040-3248-L Maximum Power Consumption (without PoE): 36 Watts No Load: Voltage Current Watt 1.2A 14.4W Full Load: Test Voltage Current Watt 2.22A 26.64W DC Power Consumption: DC power consumption measured after 60 minutes under full loading with wire speed forwarding.
  • Page 11 Lantronix SISPM1040-3xxx-L Install Guide 52V DC DC Current DC Power Operating Status Consumption Voltage Consumption Interface Non-loading None 0.43 22.36 1G TP Port x 24 Standby mode 1G SFP x 4 8.01 416.52 10G SFP x 4 1G TP Port x 24...
  • Page 12 Lantronix SISPM1040-3xxx-L Install Guide 57V DC DC Current DC Power Operating Status Consumption Voltage Consumption Interface Non-loading None 0.41 23.37 1G TP Port x 24 Standby mode 1G SFP x 4 7.92 451.44 10G SFP x 4 1G TP Port x 24...
  • Page 13 Lantronix SISPM1040-3xxx-L Install Guide AC Power Consumption: AC power consumption measured after 60 minutes under full loading with wire speed forwarding. 1. 100V AC Input AC Current AC Voltage Power Apparent Real Power Status Operating Interface Consumption Factor Power (VA)
  • Page 14 Lantronix SISPM1040-3xxx-L Install Guide 3. 220V AC Input AC Current AC Voltage Power Apparent Real Power Status Operating Interface Consumption Factor Power (VA) Non-loading None 0.10 0.72 22.00 15.84 Non-PoE 1G TP Port x 24 Standby mode 1G SFP x 4 0.17...
  • Page 15 Lantronix SISPM1040-3xxx-L Install Guide AC and DC Power AC 110V + DC 52V DC Current DC Power Operating Status Consumption Voltage Consumption Interface Non-loading None 0.43 23.22 1G TP Port x 24 Standby mode 1G SFP x 4 7.96 429.84...
  • Page 16 Lantronix SISPM1040-3xxx-L Install Guide AC 110V + DC 57V DC Current DC Power Operating Status Consumption Voltage Consumption Interface Non-loading None 0.43 23.22 1G TP Port x 24 Standby mode 1G SFP x 4 7.96 429.84 10G SFP x 4...

  • Page 17: Software Features

    Lantronix SISPM1040-3xxx-L Install Guide Software Features Layer 2 Switching Standard Spanning Tree 802.1d  Spanning Tree Rapid Spanning Tree (RSTP) 802.1w  Protocol (STP) Multiple Spanning Tree (MSTP) 802.1s  Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs) Port-based VLAN ...
  • Page 18 Lantronix SISPM1040-3xxx-L Install Guide Locks MAC addresses to ports, and limits the number of learned MAC addresses Port Security Prevents illegal IP address from accessing to specific port in the switch IP Source Guard Supports RADIUS and TACACS+ authentication. Switch as a client...
  • Page 19 Lantronix SISPM1040-3xxx-L Install Guide Used by network devices for advertising their identities, capabilities, and  IEEE 802.1ab (LLDP) neighbors on an IEEE 802ab local area network Support LLDP-MED extensions  Web GUI Interface Built-in switch configuration utility for browser-based device configuration...
  • Page 20 Lantronix SISPM1040-3xxx-L Install Guide 1588v2 PTP. OAM (IEEE802.3ah), CFM (IEEE802.1ag), PM (ITU-T Y.1731), ELPS (ITU-T Carrier Ethernet G.8031) , ERPS (ITU-T G.8032), Y.1564 Ethernet OAM IEEE 802.3ah Link Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management) IEEE 802.1ag & ITU-T Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management)

  • Page 21: Applications

    Lantronix SISPM1040-3xxx-L Install Guide Applications High-resolution IP camera, IP PTZ camera  High-performance wireless access points  Intelligent Transportation System (ITS)  Oil and gas field sites  33762 Rev. G https://www.lantronix.com/ Page 21 of 48...

  • Page 22: Front Panels

    Lantronix SISPM1040-3xxx-L Install Guide Front Panels The SISPM1040-3248-L front panel is shown below: The SISPM1040-3166-L front panel is shown below: 33762 Rev. G https://www.lantronix.com/ Page 22 of 48...

  • Page 23: Led Descriptions

    Lantronix SISPM1040-3xxx-L Install Guide LED Descriptions The LEDs on the front panel provide switch status checking and monitoring. There are three types of LEDs: System LED: Indicates if the switch is powered up correctly or not, or, indicates if there is a system alarm triggered for troubleshooting.

  • Page 24: Reset Button

    Lantronix SISPM1040-3xxx-L Install Guide Port Status LEDs: Color Function Light off: port disconnected or link failed Green Light on: link-up (1G) TP Port Green/Amber Amber Light on: link-up (10/100M) Blinking: activity (receiving or transmitting data) Light off: port disconnected or link failed...

  • Page 25: Back Panels

    Lantronix SISPM1040-3xxx-L Install Guide Back Panels The back panel of the -3166 and -3248 are shown below. AC Input: 100~ 250 VAC 50/60Hz: AC Input Voltage and Frequency: 100-250 VAC, 50~60 Hz DC INPUT 52-57 VDC (P1 and P2) and Ground Screw: DI/DO: Digital Input / Digital Output.

  • Page 26: Chapter 2 - Installing The Switch

    For 802.3at Environment B applications, i.e., building to building, copper to copper endpoint connections: 1) use an Ethernet network isolator module (PoE disabled), or 2) use mid-span injector(s), such as Lantronix’ MIL-L100 or, L1000i-at, between this switch’s PSE port and link partner PD port.

  • Page 27: Mounting The Switch In A 19-Inch Rack

    Lantronix SISPM1040-3xxx-L Install Guide Mounting the Switch in a 19-inch Rack 1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten with a screwdriver to secure the brackets. 2. Place the switch on a rack shelf in the rack. Push it in until the oval holes in the brackets align with the mounting holes in the rack posts.

  • Page 28: Installing Sfp Modules

    Lantronix SISPM1040-3xxx-L Install Guide Installing SFP Modules You can install or remove a mini-GBIC SFP module from an SFP port without having to power off the switch. Note: The SFP ports should use UL Listed Optional Transceiver product, Rated 3.3Vdc, Laser Class 1.

  • Page 29: Connecting The Ac Power Cord

    Lantronix SISPM1040-3xxx-L Install Guide Connecting the AC Power Cord The SISPM1040-3xxx-L ships with one standard Power Supply installed. You can order one AC Power cord as a separate option. 1. Connect the AC power cord to the AC power receptacle of switch.

  • Page 30: Connecting The Dc Power Cord

    Lantronix SISPM1040-3xxx-L Install Guide Connecting the DC Power Cord The SISPM1040-3248-L/SISPM1040-3166-L has one AC power input and Dual DC power input. It doesn’t support a secondary AC Power Supply option. It provides redundancy between AC and dual DC power inputs and the AC power input has high priority.

  • Page 31: Connecting The Di/Do Relay Wires

    Lantronix SISPM1040-3xxx-L Install Guide Connecting the DI/DO Relay Wires 1. Insert the negative (ground)/positive DI/DO Relay wires into the +/- terminals, respectively. 2. To keep the DI/DO Relay wires from pulling loose, use a small flat-blade screwdriver to tighten the wire-clamp screws on the front of the terminal block connector.
  • Page 32 Lantronix SISPM1040-3xxx-L Install Guide Digital Input and Digital Output Use Case The switch supports Digital Input and Digital Output. The Digital Input enables the switch to detect and log external device status (such as door intrusion detector). The Digital Output could be used to tell administrators if the switch port shows link down, link up or power failure.

  • Page 33: Power Supply Specifications

    Lantronix SISPM1040-3xxx-L Install Guide Power Supply Specifications Power supply options include: • 25160 • 25104 • PS-DC-DUAL-56xxT Standalone Power Supply 25160 - 480W Din Rail Power Supply (SDR-480-48) Part number: 25160; see the 25160 webpage for product details. Rated Power: 480W Input 90 –...
  • Page 34 Lantronix SISPM1040-3xxx-L Install Guide Power Supply Views (25160) Front: Back: Top: Bottom: 33762 Rev. G https://www.lantronix.com/ Page 34 of 48...
  • Page 35 Lantronix SISPM1040-3xxx-L Install Guide Power Supply Dimensions (25160) Width: 85.5 mm (3.36 in.) Height: 125.2 mm (4.92 in.) Depth: 128.5 mm (5.05 in.) ADMISSIBLE DIN-RAIL: TS35/7.5 OR TS35/15 33762 Rev. G https://www.lantronix.com/ Page 35 of 48...
  • Page 36 Lantronix SISPM1040-3xxx-L Install Guide Power Supply Pin Descriptions (25160) Terminal Pin No. Assignment (TB1) Pin No. Assignment AC/N AC/L Terminal Pin No. Assignment (TB2) Pin No. Assignment DC OUTPUT +V DC OUTPUT -V Relay Contact DC OK Relay Contact Contact Close PSU turns on / DC OK.
  • Page 37 PS-DC-DUAL-56xxT 340W Standalone Power Supply Lantronix PS-DC-DUAL-56xxT Standalone Power Supplies are designed to provide power to the Lantronix SISPM1040-384-LRT-C. This standalone power supply can be installed in a 19” Rack with 1RU high. The Power Supply provides 340W at 56VDC and is targeted for PoE applications.

  • Page 38: Chapter 3 - Initial Switch Configuration

    Lantronix SISPM1040-3xxx-L Install Guide Chapter 3 - Initial Switch Configuration Initial Switch Configuration via Web Browser After powering up the switch for the first time, you can perform the initial switch configuration using a web browser. For managing other switch features, see the Web User Guide for details.

  • Page 39: Initial Switch Configuration Via Cli

    Lantronix SISPM1040-3xxx-L Install Guide If your PC is configured correctly, you will see the Login page of the switch as shown below. If you do not see the above Login page, try these steps: Refresh the web page. Check to see if there is an IP conflict issue.

  • Page 40: Chapter 4 - Troubleshooting

    Lantronix SISPM1040-3xxx-L Install Guide Chapter 4 - Troubleshooting Basic Troubleshooting 1. Make sure your switch model supports the feature or function attempted; see Key Features on page check the Release Notes for your particular firmware version. 2. Verify the install process; see Chapter 2 –...

  • Page 41: Troubleshooting Table

    Lantronix SISPM1040-3xxx-L Install Guide Troubleshooting Table The following table provides information to help troubleshoot problems by taking actions based on the suggested solutions. Table 5: Troubleshooting Table Symptom Possible Cause Suggested Solution 1. Check if correct power cord is connected firmly to the switch and to the AC/DC outlet socket.

  • Page 42: Led Troubleshooting

    Lantronix SISPM1040-3xxx-L Install Guide LED Troubleshooting Table 6: LED Troubleshooting Color State Description The port is enabled and established a link to connected device, and the Green connection speed is 1000Mbps. The port is transmitting/receiving packets, and the connection speed is...

  • Page 43: Device Label And Packaging Label

    Lantronix SISPM1040-3xxx-L Install Guide Color State Description The port is enabled and established a link to connected device, and the Blue connection speed is 10Gbps. The port is transmitting/receiving packets, and the connection speed is Blue Blinking 10Gbps. The port is enabled and established a link to connected device, and the...

  • Page 44: Record Device And System Information

    Describe any action(s) already taken to resolve the problem (e.g., changing mode, rebooting, etc.): ________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ The model and serial numbers of other Lantronix products in the network: _____________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ Describe your network environment (layout, cable type, etc.): ________________________________________________________...

  • Page 45: Chapter 5 - Regulatory And Safety Information

    Lantronix SISPM1040-3xxx-L Install Guide Chapter 5 - Regulatory and Safety Information Compliance and Safety Statements FCC, Class A: This product has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 46: Class I, Division 2 / Classe I, Division 2

    Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems ("High Risk Activities"). Lantronix and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.

  • Page 47: Electrical Safety Warnings

    Lantronix SISPM1040-3xxx-L Install Guide WARNING: Turn the external power source OFF and ensure that the power module is disconnected from the external power source before performing any maintenance. Failure to observe this warning could result in an electrical shock, even death.
  • Page 48 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: http://www.transition.com/support. Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33762 Rev. G https://www.lantronix.com/ Page 48 of 48...
