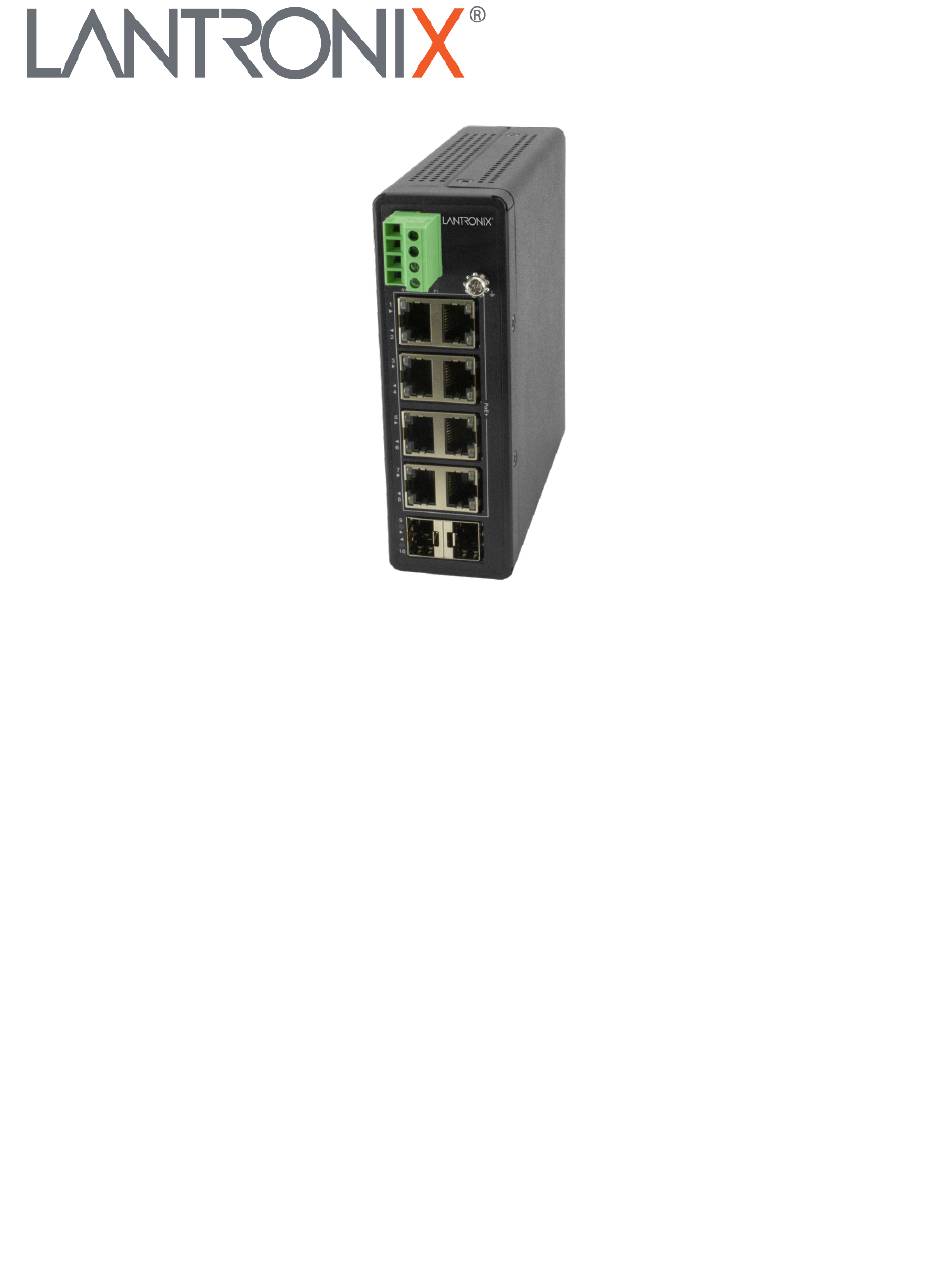

- Page 1 SISTP1040-382B-LRT Unmanaged Hardened Gigabit Ethernet PoE+ Switch with Low Voltage Input (8) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP Slots Install Guide Part Number 33806 Revision D January 2024...
-
Page 2: Revision History
Intellectual Property © 2022-2024 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. -
Page 3: Safety Warnings And Cautions
Anyone using this product in such an application without express written consent of an officer of Lantronix does so at their own risk and agrees to fully indemnify Lantronix for any damages that may result from such use or sale. -
Page 4: Table Of Contents
Lantronix SISTP1040-382B-LRT Install Guide Contents Revision History ...............................2 Safety Warnings and Cautions ..........................3 Product Description ............................6 Features ...................................6 Ordering Information ..............................6 About This Manual ..............................7 Related Manuals ..............................7 Specifications ................................7 Specifications ................................8 DC Power Consumption ............................10 Front Panel ................................11 LED Descriptions ............................... - Page 5 Lantronix SISTP1040-382B-LRT Install Guide User Information ..............................40 RoHS, REACH and WEEE Compliance Statement ..................40 Electrical Safety Warnings ..........................41 Box and Device Labels ............................42 Recording Model Information and System Information ..................43 Page 5 of 44 33806 Rev. D...
-
Page 6: Product Description
Solar, Vehicle, or Factory systems, there are no standard power input requirements of 52 to 57 volts for PoE devices. The SISTP1040-382B-LRT uses booster technology to let you deploy the PoE switches with power input of 12, 24, or 48~57 volts. It can still deliver up to 30 Watts on each PoE+ port. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. -
Page 7: About This Manual
This manual describes how to install, configure, and troubleshoot the switch, including how to check switch status by reading the LEDs, reset the switch, install the switch, and troubleshoot the switch. Related Manuals • SISTP1040-382B-LRT Quick Start Guide, 33805 • Release Notes (version specific) Specifications Standards IEEE 802.3, 802.3u, 802.3z, 802.3ae, 802.3x, 802.1p, 802.3az, 802.3af, 802.3at... -
Page 8: Specifications
Lantronix SISTP1040-382B-LRT Install Guide Specifications Port Configuration Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console 2 SFP Hardware Performance Forwarding Switching Mac Table Jumbo Frames Capacity (Mpps) Capacity (Gbps) (Bytes) 14.88 Environmental Range Operating Operating Temperature Storage Temperature Altitude Humidity Fahrenheit... - Page 9 Lantronix SISTP1040-382B-LRT Install Guide Mechanical Stability Vibration IEC 60068-2-6 Shock IEC 60068-2-27 Freefall IEC 60068-2-32 FCC part 15 approval Class A CE marking CISPR22/EN55022 Class A CISPR24/EN55024 Class A VCCI Japan EN61000-3-2 Ed.3.0 Amendment A1 1998 Amendment A2 1998 Class A IEC 61000-3-3 Ed2: 2008 Electromagnetic Compatibility –...
-
Page 10: Dc Power Consumption
Lantronix SISTP1040-382B-LRT Install Guide DC Power Consumption Non Load Input: Voltage Unit Current Unit Power Unit 12VDC 0.387 4.644 24VDC 0.326 5.664 DC : Voltage Unit Current Unit Power Unit 0.55 0.21 0.963 Full Loading 60W PoE Load: Input: Voltage... -
Page 11: Front Panel
Lantronix SISTP1040-382B-LRT Install Guide Front Panel The switch front panel is shown and described below. LED Descriptions The front panel LEDs provide switch status checking and monitoring. The three LED types are: Power LEDs: indicate if the switch is powered up correctly or not. - Page 12 Lantronix SISTP1040-382B-LRT Install Guide The following tables describes the switch LED indicators. Table 1: Power LEDs Color State Description The switch is powered On correctly. Lit Green when Power on Switch is Ready. Green Power1 The switch is not receiving power from Power1.
- Page 13 Lantronix SISTP1040-382B-LRT Install Guide Check the port status by reading the LED behaviors using the table below. Table 3: Port Status LEDs Color State Description The port is enabled and established a link to connected device, and the Green connection speed is 1000Mbps.
- Page 14 Lantronix SISTP1040-382B-LRT Install Guide Table 4: Port LED Behavior Port Color Function LED off: port disconnected or link failed. Green LED on: 1G Link Present, No Activity. Amber LED on: 100M/10M Link Present, No Activity. Link/ Green blinking : 1G Activity. Port is sending or receiving data.
- Page 15 Lantronix SISTP1040-382B-LRT Install Guide Port LED Example: TP Link up at 1G speed SFP Link up at 1G Speed POE Light on Link up at 100M speed Page 15 of 44 33806 Rev. D https://www.lantronix.com/...
-
Page 16: Back Panel And Bottom Panel
Lantronix SISTP1040-382B-LRT Install Guide Back Panel and Bottom Panel Side Panel Bottom Panel Reset Button Press the recessed Reset button to reboot the switch. Page 16 of 44 33806 Rev. D https://www.lantronix.com/... -
Page 17: Applications
Lantronix SISTP1040-382B-LRT Install Guide Applications • Vehicle Internet of Things • Battery Bank/Solar Panel Powered PoE+ • IP surveillance, supplying power and data to IP cameras Page 17 of 44 33806 Rev. D https://www.lantronix.com/... -
Page 18: Installing The Switch
Lantronix SISTP1040-382B-LRT Install Guide 2. Installing the Switch Package Contents Make sure you have received the following items. Contact your sales representative if any item is missing or damaged. Save the packaging for possible future use. • One Switch •... -
Page 19: Mounting The Switch On A Din Rail
Lantronix SISTP1040-382B-LRT Install Guide Mounting the Switch on a DIN Rail 1. Attach the DIN Rail mounting kit to rear panel of the chassis. Insert screws and tighten with a screwdriver to secure the kit. Figure: Attach DIN Rail Kit to the Switch 2. -
Page 20: Mounting The Switch On Wall (Optional)
Lantronix SISTP1040-382B-LRT Install Guide Mounting the Switch on Wall (Optional) 1. Attach the wall mounting plates to rear panel of the chassis. Insert screws and tighten with a screwdriver to secure the plates. Figure: Attach Wall Mounting Plates to the Switch Figure: Wall Mount Plates Dimensions 2. -
Page 21: Grounding
Lantronix SISTP1040-382B-LRT Install Guide Grounding After the Switch is mounted and connected, the front panel grounding screw can be used for grounding. Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface before connecting devices. -
Page 22: Installing Sfp Modules
You can install or remove a mini-GBIC SFP module from an SFP port without having to power off the switch. The Switch lets you install a Small Form-Factor Pluggable (SFP) device of your choice to make a fiber connection via the 100/1000Base-X SFP Ports. See the Lantronix SFP page for SFP models. -
Page 23: Connect Poe+ Ports Via Tp Copper Cable
Lantronix SISTP1040-382B-LRT Install Guide Connect PoE+ Ports via TP Copper Cable The Switch also provides 10/100/1000Base-T. Supported cabling: PoE per IEEE 802.3af PoE supports Cat 3 and Cat 5. PoE per IEEE 802.3at PoE+ supports Cat 5. See “PoE / PoE+ Spec Comparison”... -
Page 24: Ieee 802.3Bt Power Input Ripple And Noise Specification
Lantronix SISTP1040-382B-LRT Install Guide IEEE 802.3bt Power Input Ripple and Noise Specification f< 500 Hz 500 Hz to 150 kHz Noise 150 kHz to 500 kHz 0.15 500 kHz to 1 MHz Connecting DC Power After the Switch is mounted, connected, and grounded, use the Terminal Block (Euro Block) to provide DC Power Inputs P1 and P2. -
Page 25: Optional Power Supply 25175
Lantronix SISTP1040-382B-LRT Install Guide 3. Optional Power Supply 25175 25175 Features • Variable AC input range • Protected against Short Circuit, Overload, Over Voltage, Overheating • Convection air cooling • DIN rail mountable - can be mounted on a TS35 Standard DIN rail (TS35/7.5 or 15) •... - Page 26 Lantronix SISTP1040-382B-LRT Install Guide 25175 Environment Operating Temp: -20°C to +70°C Storage Temp: -40°C to +85°C Humidity: 20% to 95% (non-condensing) Weight 1.32 lbs. [0.6 kg] MTBF 456.3Khrs (MIL-HDBK-217F (2⁰5 C) 25175 Certifications Safety: UL508, TUV 62368-1; IEC60068-2-6 (Vibration); EMC Emission: EN55032(CISPR32), EN61204-3 Class B, EN61000-3-2, EN61000- 3-3;...
- Page 27 Lantronix SISTP1040-382B-LRT Install Guide 25175 Product Views with Dimensions Dimensions are in mm. Page 27 of 44 33806 Rev. D https://www.lantronix.com/...
-
Page 28: 25175 Installation
Lantronix SISTP1040-382B-LRT Install Guide 25175 Installation 1. Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit in use to prevent it from overheating. Also, a 10-15 cm clearance must be kept when the adjacent device is a heat source. - Page 29 Lantronix SISTP1040-382B-LRT Install Guide For rail fastening： （a）Tilt the unit slightly rearwards. （b）Fit the unit over top hat rail. （c）Slide it downward until it hits the stop. （d）Press against the bottom for locking. （e）Shake the unit slightly to ensure the locking action.
- Page 30 Lantronix SISTP1040-382B-LRT Install Guide Pour ne pas compromettre la protection contre les risqué d’incendie, remplacer par un fusible de même type et de memes caractéristiques nominales. Note 1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become conductive due to occasional condensation.
- Page 31 Lantronix SISTP1040-382B-LRT Install Guide +V ADJ Screw A small front panel hole provides access to a small Phillips screw; turn clockwise to increase or decrease voltage. Adjustable from 24V to 28VDC. No adjustment is usually needed. The 25175 power supply ships from the factory set to 24 VDC.
-
Page 32: Troubleshooting
Lantronix SISTP1040-382B-LRT Install Guide 4. Troubleshooting General Troubleshooting 1. Make sure your switch model supports the feature or function attempted; see Features on page 6. 2. Check if the correct power cord is connected firmly to the switch and to the DC outlet socket. See... -
Page 33: Poe Modes And Compliance
Lantronix SISTP1040-382B-LRT Install Guide PoE Modes and Compliance PoE Deployment Environments A and B IEEE802.3at-2009 defines two deployment environments in section 33.4.1: Environment A: when both PSE and PD are located indoors, inside the same building. In this environment, there has to be electrical isolation between the PoE circuitry and the data circuitry inside a PSE. - Page 34 Lantronix SISTP1040-382B-LRT Install Guide Typical PD Power Requirements 1.8 Watts: Lantronix’ M/GE-ISW-SFP-01-PD (Class 1 Powered Device (0.44 Watts - 3.84 Watts). • 13W: IP Camera, VoIP Phone, Wireless Access Point, Networked Audio. • 30W: IP Telephone, WiMAX Access Point, PTZ Camera, Remote Computer Terminal.
- Page 35 Lantronix SISTP1040-382B-LRT Install Guide Troubleshooting PoE Problems 1. Get as much detail as possible regarding the symptom, including any system messages from the PoE switch. For example, does a PD not power up at all, or does it power up briefly and then power down? 2.
- Page 36 Lantronix SISTP1040-382B-LRT Install Guide problem, while other switches or PDs may show a greater immunity to the problem. This is a typical occurrence during lightning storms or AC power maintenance. In a worst-case scenario, a PoE power supply may appear to shut down, with no PoE output voltage to any port. It’s possible the switch’s Ethernet functions appear normal, and only the PoE functions are disrupted or degraded, or the switch may power down completely due to the AC disturbance.
-
Page 37: Related Information
Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, CA 92618, USA Declares that the products: SISTP1040-382B-LRT Conforms to the following Product Regulations: FCC Part 15 Class A, EN 55032:2015AC/AC:2016 Class A; EN61000-3-2:2014, EN61000-3-3:2013, AS/NZS CISPR 32:2015 Class A;... -
Page 38: Cautions And Warnings
Lantronix SISTP1040-382B-LRT Install Guide Cautions and Warnings Definitions Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to person. Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to read and understand the information identified by this symbol could result in poor equipment performance, damage to the equipment, or injury to persons. - Page 39 Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems ("High Risk Activities"). Lantronix and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.
-
Page 40: User Information
Lantronix SISTP1040-382B-LRT Install Guide User Information Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A device, pursuant to part 15 of the FCC Rules. -
Page 41: Electrical Safety Warnings
Lantronix SISTP1040-382B-LRT Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal enstallers i overensstemmelse med sikkerhedsadvarslerne. -
Page 42: Box And Device Labels
Lantronix SISTP1040-382B-LRT Install Guide Box and Device Labels The Model number, Part Number (P/N), and Serial Number (S/N) are printed on the shipping box and on the bottom of the Switch. This information will be helpful when calling or emailing Technical Support. -
Page 43: Recording Model Information And System Information
Describe any action(s) already taken to resolve the problem (e.g., changing switch mode, rebooting, etc.): ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ The serial and revision numbers of all involved Lantronix products in the network: ________________________________________________________________________________________ ________________________________________________________________________________________ A description of your network environment (layout, cable type, PoE / PoE+ / PoE++, PD, etc.): ___________... - Page 44 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 44 of 44 33806 Rev. D https://www.lantronix.com/...
