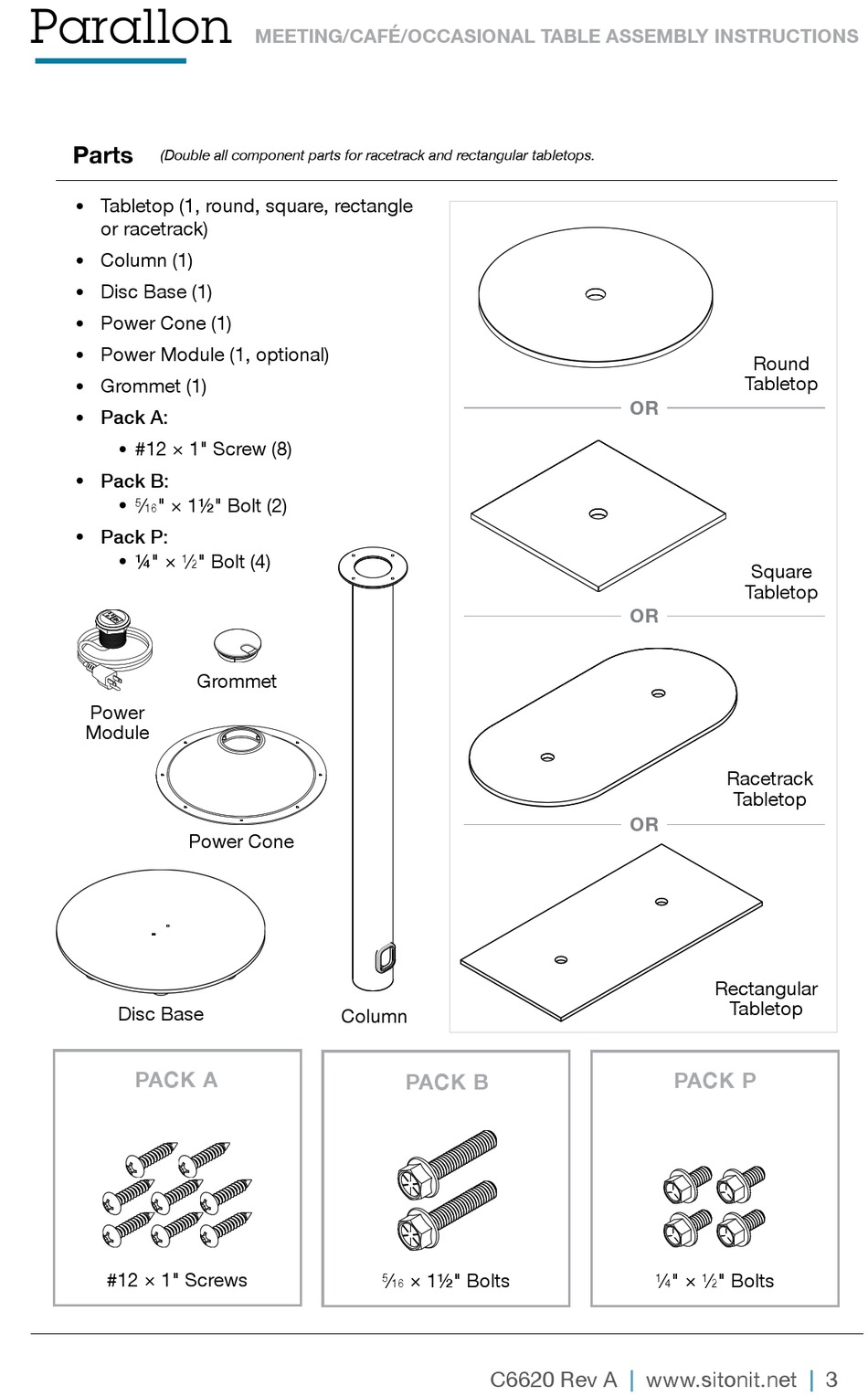

Parallon
Parts
(Double all component parts for racetrack and rectangular tabletops.
•
Tabletop (1, round, square, rectangle
or racetrack)
•
Column (1)
•
Disc Base (1)
•
Power Cone (1)
•
Power Module (1, optional)
•
Grommet (1)
•
Pack A:
•
#12 × 1" Screw (8)
•
Pack B:
•
⁄ " × 1½" Bolt (2)
5
16
•
Pack P:
•
¼" x ⁄
1
2
Power
Module
Power Cone
Disc Base
PACK A
#12 x 1" Screws
MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS
" Bolt (4)
Grommet
Column
PACK B
⁄ x 1½" Bolts
5
16
C6620 Rev A
Round
Tabletop
OR
Square
Tabletop
OR
Racetrack
Tabletop
OR
Rectangular
Tabletop
PACK P
⁄ " x ⁄ " Bolts
1 1
4 2
|
