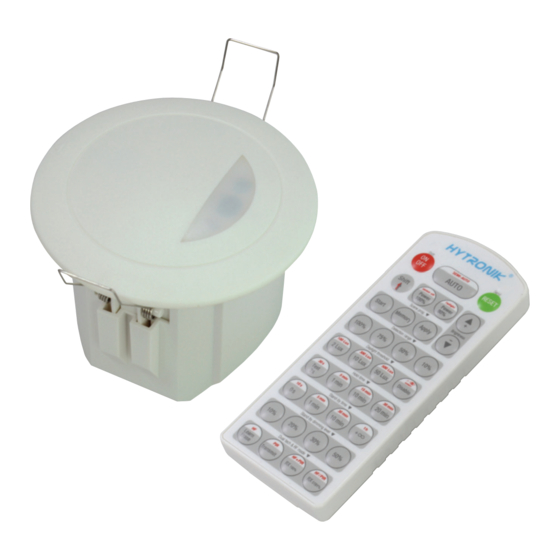

Stand-alone HF Motion Sensor
HMW22
Daylight Harvest with Remote Control
Mechanical Structure
70mm
4
3
1
Infrared receiver
Lens
2
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certification
Hytronik Microwave motion sensor
293
HF
Photocell
LED indicator
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover (covers the
high-voltage terminals).
(4) Ceiling (drill hole
HMW22
220~240VAC 50/60Hz
<0.5W
800W
1600W
20s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489,
EN62479
Semko, CB, CE, EMC, RED, SAA
64.7
Ø
70mm).
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection angle
Environment
Operation temperature
IP rating
HMW22
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 12m x 6m
360
O
Ta: -20
C ~ +60
IP20
RED
www.hytronik.com
O
O
C
IP20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HMW22
Summary of Contents for Hytronik HMW22
- Page 1 Safety and EMC Operation temperature Ta: -20 C ~ +60 EMC standard (EMC) EN55015, EN61000 IP rating IP20 Safety standard (LVD) EN60669, AS/NZS60669 EN300440, EN301489, Radio Equipment (RED) IP20 EN62479 Semko, CB, CE, EMC, RED, SAA Certification www.hytronik.com Hytronik Microwave motion sensor...
- Page 2 ON in the presence, and dims down in the absence, then switches off in the long absence. Note: end-user can choose either function or function for application. Default function is manual override. www.hytronik.com Hytronik Microwave motion sensor...
- Page 3 HRC-11 mode. (Absence detection mode) Power output Press the buttons to select light output at 80% (at initial 10,000 hours) or 100%. Note: “Sensor off” and “Twilight” functions are disabled. www.hytronik.com Hytronik Microwave motion sensor 2956...
- Page 4 Stand-by dimming level Press the button in zone “stand-by dimming level” to set the stand-by dimming level at 10% / 20% / 30% / 50%. Dual tech & RF mode All buttons are disabled. www.hytronik.com Hytronik Microwave motion sensor...
- Page 5 Note: settings can also be changed by remote control 100% 30min 200Lux +∞ HRC-11. The last action controls. 100% 30min 400Lux +∞ 100% 100Lux Wiring Diagram Detection Pattern LED+ L’ N N L LED - HMW22 1-10V 1-10V LED Driver www.hytronik.com Hytronik Microwave motion sensor...
