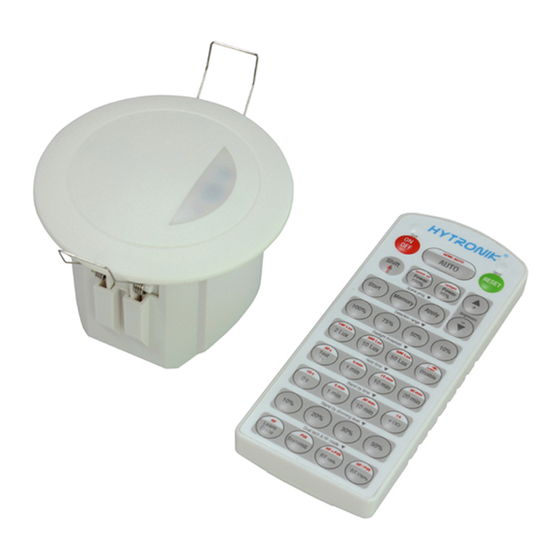

Stand-alone HF Motion Sensor
HMW25
Tri-level Control for Independent DALI
Mechanical Structure
70mm
4
3
1
Infrared receiver
Rotary switch preset
Lens
2
Note:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Operating voltage
Stand-by power
Switched power
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
EN62479, EN60669-1, EN60669-2
Radio Equipment (RED)
Certi cation
Subject to change without notice.
HF
Photocell
LED indicator
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover (covers the
high-voltage terminals).
(4) Ceiling (drill hole
HMW25
220 ~ 240VAC 50/60Hz
<0.5W
Max. 20pcs devices, 40mA
20s
EN55015, EN61000
EN300440, EN301489,
EN62479
Semko, CB, CE, EMC, RED, RCM
64.7
Ø
70mm).
Rotary Switch
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection range
Detection angle
Environment
Operation temperature
IP rating
Edition: 26 Feb. 2020
Intelligent
One-Key
Photocell
Commissioning
Detection Pattern
TX
0
6
Ambient daylight
synchronization
Programing
control
6
HMW25
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 12m x 6m
360
Ta: -20
O
C ~ +50
IP20
RED
Ver. A0
threshold
O
O
C
IP20
Page 1/5
Advertisement
Related Manuals for Hytronik HMW25
Summary of Contents for Hytronik HMW25
- Page 1 Stand-alone HF Motion Sensor HMW25 Tri-level Control for Independent DALI Mechanical Structure 70mm 64.7 Photocell LED indicator Infrared receiver (1) Sensor inset Rotary switch preset (2) Lens pluggable Intelligent One-Key Photocell Commissioning (3) Protection cover (covers the Detection Pattern high-voltage terminals).
-
Page 2: Functions And Features
Tri-level Control (Corridor Function) Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice before switch-off. The sensor offers 3 levels of light: 100%-->dimmed light (natural light is insuf cient) -->off; and 2 periods of selectable waiting time: motion hold-time and stand-by period;... - Page 3 Synchronisation Function By connecting the “SYNC” terminals in parallel (see wiring diagram), no matter which sensor detects motion, all HMW25 in the group will turn on the lights when surrounding natural light is below the daylight threshold. The detection area could be widely enlarged in this way.
- Page 4 Dual tech & RF mode All buttons are disabled. Wiring Diagram LED+ LED+ LED Driver LED Driver LED _ DALI+ DALI+ DALI DALI HMW25 HMW25 DALI DALI Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 4/5...
-
Page 5: Detection Pattern
Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
