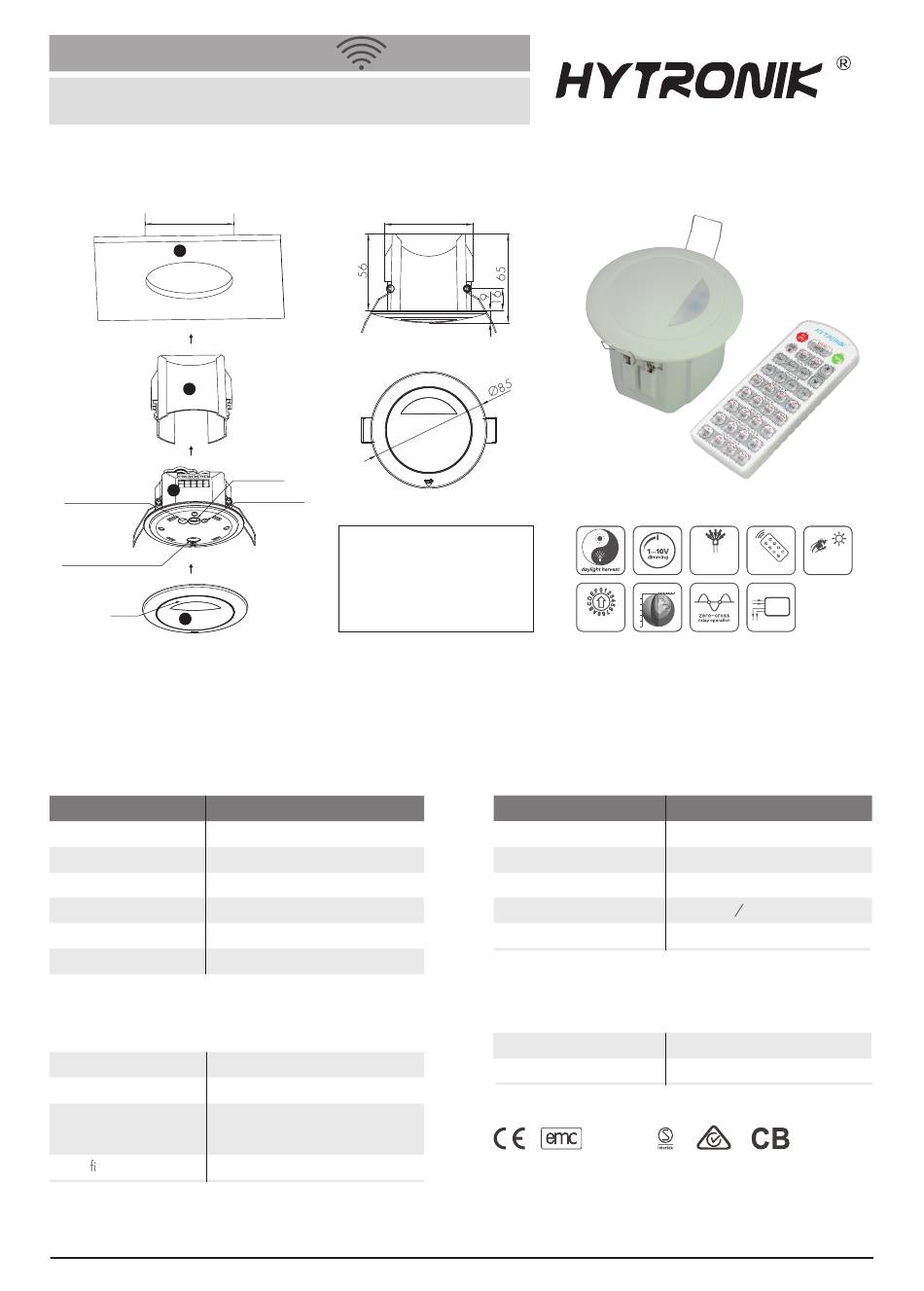

Stand-alone HF Motion Sensor
HMW22
Daylight Harvest with Remote Control
Mechanical Structure
70mm
4
3
1
Infrared receiver
Rotary switch preset
Lens
2
Note:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Subject to change without notice.
HF
Photocell
LED indicator
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover (covers the
high-voltage terminals).
(4) Ceiling (drill hole
HMW22
220~240VAC 50/60Hz
<0.5W
800VA
1600W
20s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489,
EN62479
Semko, CB, CE, EMC, RED, RCM
64.7
Ø
70mm).
Rotary Switch
Programing
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection range
Detection angle
Environment
Operation temperature
IP rating
Edition: 26 Mar. 2024
Intelligent
One-Key
Photocell
Commissioning
Detection Pattern
0
6
Loop in
Loop out
6
HMW22
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 12m x 6m
360
O
Ta: -20
O
C ~ +50
IP20
RED
Ver. A0
Ambient daylight
threshold
O
C
IP20
Page 1/5
Advertisement
Related Manuals for Hytronik HMW22
Summary of Contents for Hytronik HMW22
- Page 1 Stand-alone HF Motion Sensor HMW22 Daylight Harvest with Remote Control Mechanical Structure 70mm 64.7 Photocell LED indicator Infrared receiver (1) Sensor inset Rotary switch preset (2) Lens pluggable Intelligent Ambient daylight One-Key Photocell threshold Commissioning (3) Protection cover (covers the Detection Pattern high-voltage terminals).
-
Page 2: Functions And Features
Functions and Features Daylight Harvest Light will not switch on The light switches on The light turns on at full or dims to maintain the lux level. The light output when natural light is automatically with regulates accroding to the level of natural light available. suf cient, even there is presence when natural motion detected. - Page 3 Settings (Remote Control HRC-11) Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”/ “RESET” to exit this mode. Press button “RESET”, perform the latest DIP Switch/Rotary Switch settings. *The default settings are: Detection range 100%; Hold-time 5min; Stand-by time +∞; Stand-by dimming level 10%;...
- Page 4 Sensitivity & More functions In AUTO /SEMI-AUTO modes, press buttons in zone “Detection range” to set 100% 75% detection range at 100%/75%/50%/10%. 50% 10% Tri-level This key is not appliable on this product. Harvest This key is not appliable on this product. Master Daylight threshold 2 Lux...
-
Page 5: Detection Pattern
Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
