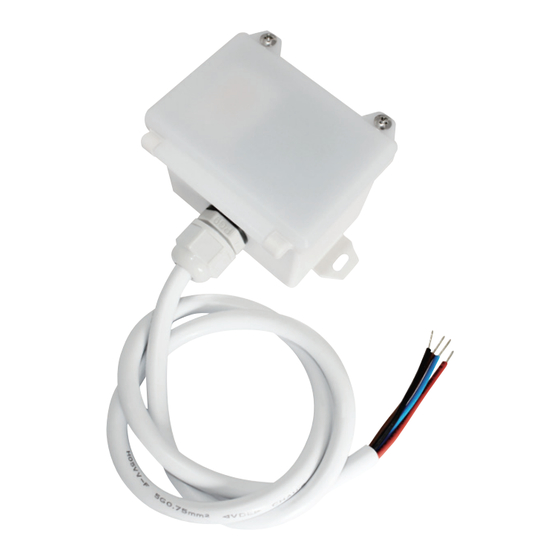

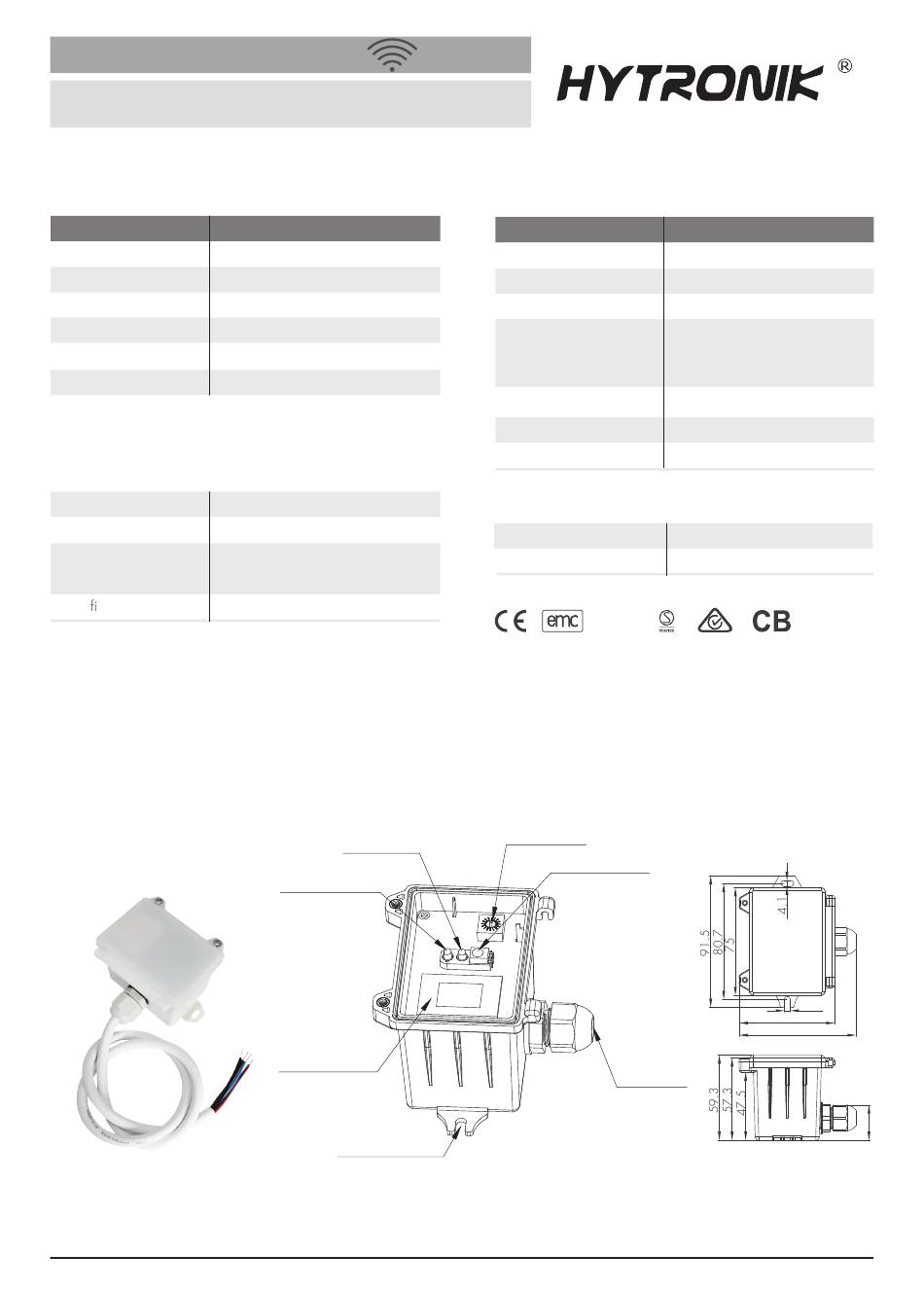

IP65 High Bay HF Motion Sensor
HMW39/RF
DALI Dimming with RF Wireless Transmission
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Rated load
Load ratings:
HC034RF (IP20)
400VA (capacitive); 1200W (resistive)
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
Subject to change without notice.
HF
HMW39/RF
220~240VAC 50/60Hz
<1.5W
Maximum 40mA
20s
EN55015, EN61000
EN60669-1, EN60669-2-1
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
LED indicator
Daylight sensor
Sensor module
Installation rack
Sensor & RF Data
Model No.
Sensor principle
Operation frequency
Transmission power
Installation Height : 20m (forklift)
Detection range
Detection Range (Ø) :20m
Detection angle
RF frequency
RF transmission distance
Environment
Operation temperature
IP rating
RED
Rotary switch
Infrared receiver
Cable entry
Edition: 5 Sep. 2023
HMW39/RF
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
15m (person)
360
O
868MHz (FSK mode)
30m indoor, 50m outdoor
O
O
Ta: -20
C ~ +50
C
IP65
IP65
4.1
66.6
81.5
Ver. A0
Page 1/8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HMW39/RF
Summary of Contents for Hytronik HMW39/RF
- Page 1 IP65 High Bay HF Motion Sensor HMW39/RF DALI Dimming with RF Wireless Transmission Technical Data Input Characteristics Sensor & RF Data Model No. HMW39/RF Model No. HMW39/RF Sensor principle High Frequency (microwave) Mains voltage 220~240VAC 50/60Hz Stand-by power <1.5W Operation frequency 5.8GHz +/- 75MHz...
- Page 2 Sensor module The motion detected by the master unit HMW39/RF passes to all other units programmed on the same group via RF transmission. The transmission can reach 30 meters indoor and 50 meters in open areas. A daylight sensor is also built-in to prevent the light switching on when surrounding natural light is suf cient.
- Page 3 Tri-level Control (Corridor Function) Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice before switch-off. The sensor offers 3 levels of light: 100%-->dimmed light (natural light is insuf cient) -->off; and 2 periods of selectable waiting time: motion hold-time and stand-by period;...
- Page 4 RF Grouping by Rotary Switch (Maximum 15 channels) 15 channels are available for fast grouping via rotary switch on both HMW39/RF and the receiver HC034RF. Simply selecting the same channel on each unit, the grouping is automatically completed. Noted: channel "0" is not for fast grouping, and sensors can only be grouped by remote control.
- Page 5 Settings (Remote Control HRC-11) Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”/ “RESET” to exit this mode. Press button “RESET”, perform DIP Switch/Rotary Switch settings. The default settings are: Auto mode; Detection range:100%; Hold time:1min; Stand-by time:5min;...
- Page 6 Daylight threshold 2 Lux 100 Lux Press buttons in zone “Daylight threshold” to set daylight sensor at 2Lux/ 10Lux / 50Lux Shift Send 10 Lux 300 Lux / 100Lux / 300Lux/500Lux / Disable. SEMI-AUTO RESET 50 Lux 500 Lux AUTO Note: To set daylight sensor at 100Lux / 300Lux/500Lux , press “Shift”...
- Page 7 RF grouping by HRC-11 Beeper is on for 3min Short press “Learn/Erase” button on RC to activate pairing mode, and the receiver unit starts to beep once every second for 3min. Short press ”Learn /Erase” button Note: up to 30 units can be paired. The receiver unit LED indicator flash 3 times Short press “Transmit”...
- Page 8 Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2.Regarding precautions for RF sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->RF Sensors - Precautions for Product Installation and Operation...
