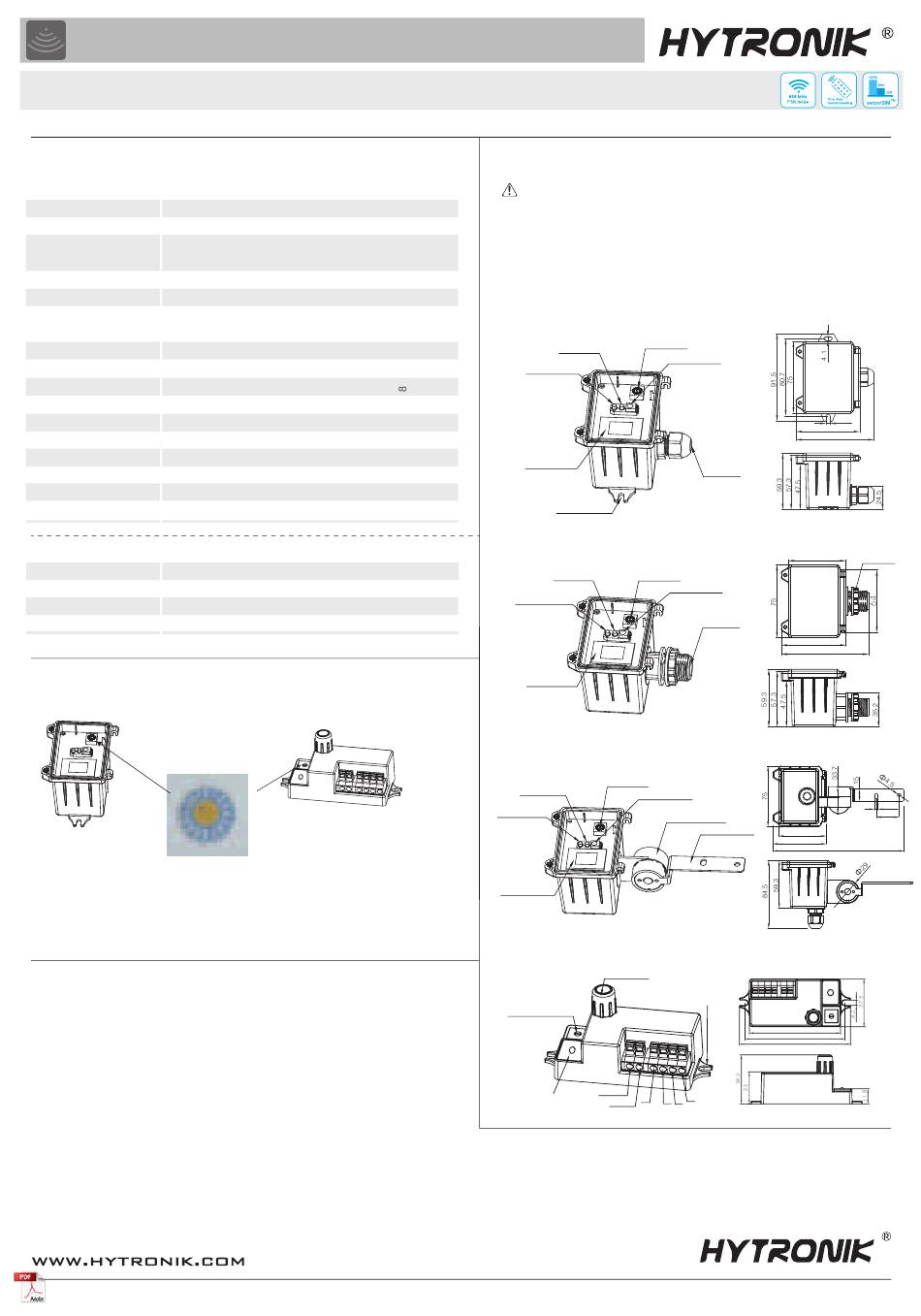

Installation and Instruction Manual
HF
HIGH BAY RF WIRELESS MICROWAVE MOTION SENSOR HMW38/RF + HC034RF
1. Technical Specifications
HMW38/RF
Product type RF wireless microwave motion sensor (tri-level control)
Operating voltage 220~240VAC 50/60Hz
1000W (resistive);
Rated load
800VA (capacitive)
Power consumption < 1.5W
Detection angle 360
Installation Height : 20m (forklift) 15m (person)
Detection area (Max.)*
Detection Range (Ø) :20m
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2 ~ 500Lux, Disable
RF transmission distance 30 meters in the open area
RF frequency 868MHz (FSK mode)
Warming up time 20s
Operating temperature -20
IP rating IP65
HC034RF
Product type RF wireless receiver
Operating voltage 220-240V 50Hz
Rated load Capacitive:400W; Resistive:1200W
IP rating IP20

3. Rotary Switch for RF grouping

commander
15 channels are available for fast grouping via rotary switch on both HMW38/RF and HC034RF.
By simply selecting the same channel on each unit, the grouping is automatically completed.
Noted:channel "0" is not for fast grouping, and sensors can only be grouped by remote control.

4. Functions

4.1 Tri-level Control (Corridor Function)

Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas
it requires a light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time:
motion hold-time and stand-by period; Selectable daylight threshold and freedom of detection
area.

4.2 Lux Off Function

The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
o
o o
C ~ +50 C
receiver

2. Installation

Warnings:
1. Installation must be carried out by a qualified engineer in accordance with local
regulations.
2. Disconnect power supply before installing.
3. Install to a solid surface - vibrations may cause mis-triggering.
4. Ensure environmental conditions are suitable for electronic equipment
A. Ceiling mount
Rotary switch
LED indicator
Daylight sensor
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
Rotary switch
LED indicator
Daylight sensor
Sensor module
C. Attach to the shade by clamp
Rotary switch
LED indicator
Infrared receiver
Daylight sensor
Sensor module

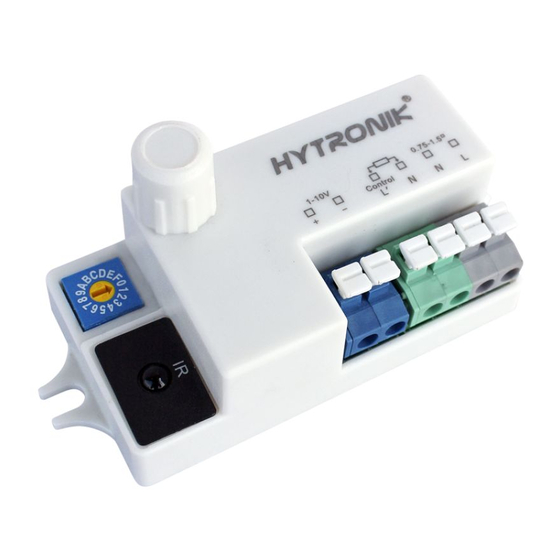

HC034RF (RF receiver)
RF antenna
Rotary switch
for RF grouping
1-10V+
Infrared remote receiver L'
1-10V-

4.3 Load Indication

The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER
100% or POWER 80% is pressed.
Infrared receiver
4.1
66.6
81.5
Cable entry
59.6
Infrared receiver
Cable entry
66.6
89.9
Angle adjustment
Luminaire clamp
59.6
66.6
163.2
Installation hole
71.5
78.2
87
N N L
HMW38/RF- 20181220-A1
0.825"
4.5
28.5
