Connecting The Fronius String Control 100/12 To The Inverter; Safety; Preparation - Fronius String Control 100/12 MET Manual

Connecting the Fronius String Control 100/12 to the
Inverter

Safety

Preparation

1
DC cable 'OUT'
3
66
WARNING! An electric shock can be fatal. Danger from DC voltage from solar
modules.
- Make sure that the input and output sides in front of the device are not
charged before connecting anything.
- Any and all connections should only be carried out by qualified electricians.
- Follow the safety rules in these operating instructions.
2
M12 M12
M12
3
1
5
(A)
(B)

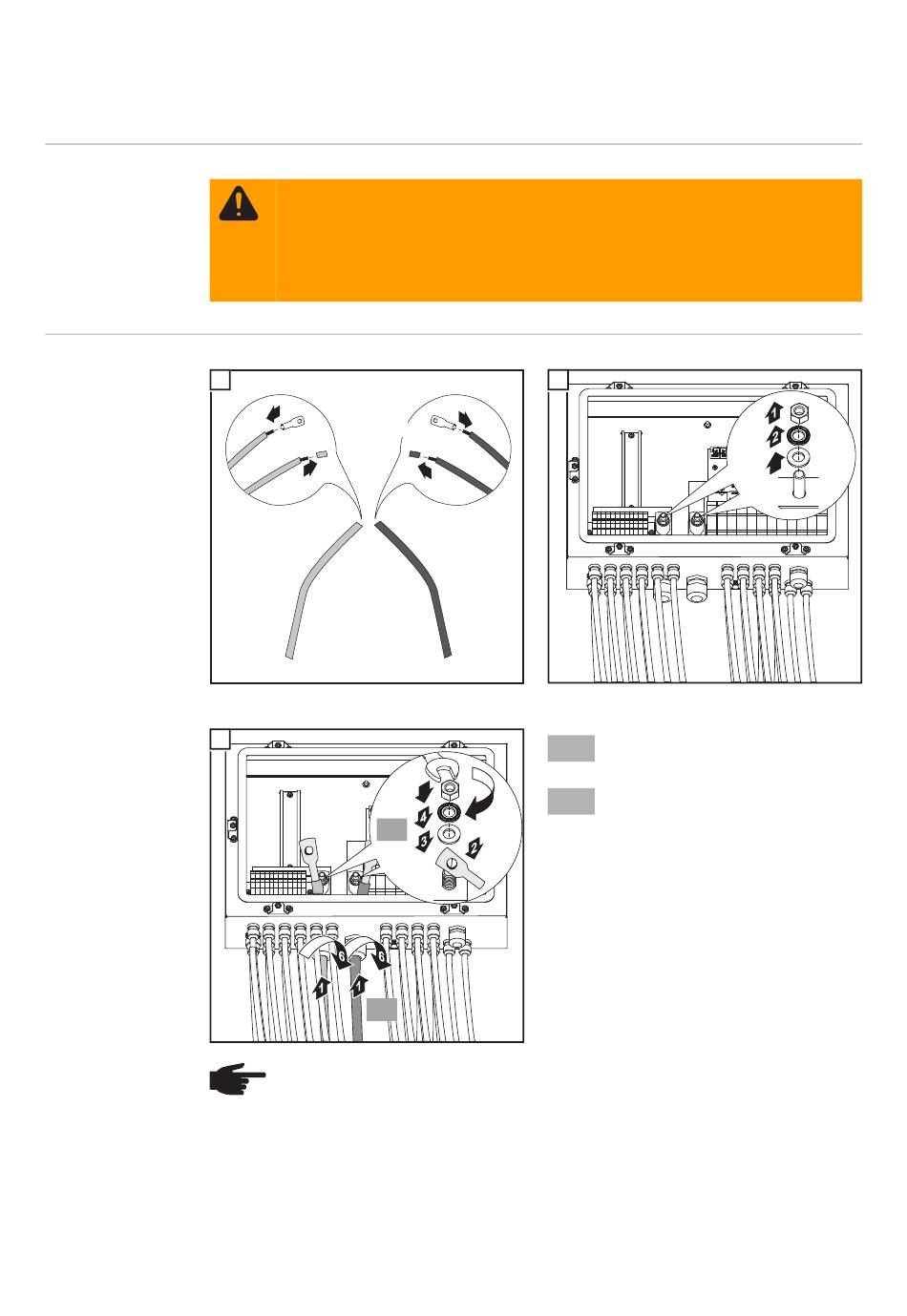

NOTE! Label the DC cable 'OUT' according to its designated polarity.
2
4
(A) Tightening torque 28 Nm
(B) Tightening torque 6 Nm
6
3
