Installation Guide

CSI-100 Coaxial System Interface

STEP 1

The CSI-100 can only be field installed in
KP-32 series equipment if the rear panel has
a knockout provided for the BNC connector
on the CSI-100 board. See Figure 1 for the
location of the knockout. If the knockout is
present, proceed to STEP 2. If the knockout
is not present, the CSI-100 can be installed,
but requires factory level modifications.
Contact RTS for pricing and instructions.

STEP 2

The backpanel and top cover of the keypanel
must be removed in order to install the CSI-
100. Begin by turning the unit over and
remove the three screws along the bottom of
the back panel as shown in Figure 2.

STEP 3

Turn the unit over. Remove the ten screws
that secure the top cover on the unit. See
Figure 3.

STEP 4

Remove the two standoffs on the 9-pin D-
sub connector. You may also need to remove
additional screws from the GPIO board if
present. See Figure 3.

STEP 5

Remove the four screws securing the back
panel to the keypanel frame. If a GPIO board
is present, be careful to not disturb any of
the wiring harness for the board. See Figure
3.

STEP 6

Locate the accessory connector on the
keypanel motherboard. See Figure 4.

STEP 7

Locate the mating connector on the bottom
of the CSI-100 board. See Figure 5.

STEP 8

With the BNC connector on the CSI-100
board facing out from the unit, slide the
connector of the CSI-100 board onto the
9330-7693-000 Rev A

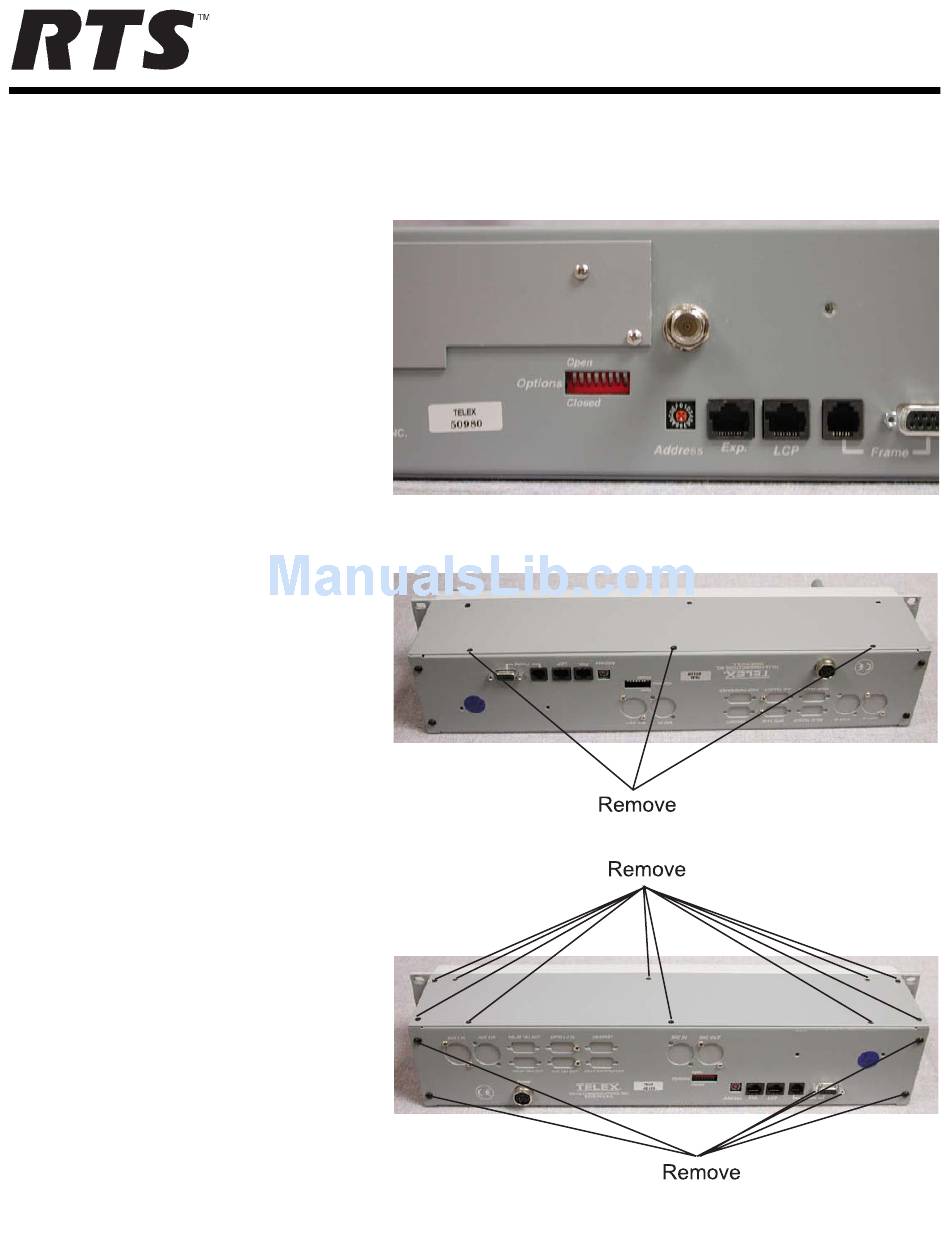

Figure 1 - CSI-100 coaxial connector location on backpanel.
Figure 2 - Bottom screw locations for backpanel removal.
Figure 3 - Top and rear screw/standoff locations for backpanel removal.
