OEI-2
OMNEO
External Interface - 2 Channel
Rev. 01
OCTOBER/2014
F.01U.287.527

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMNEO OEI-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTS OMNEO OEI-2

Summary of Contents for RTS OMNEO OEI-2

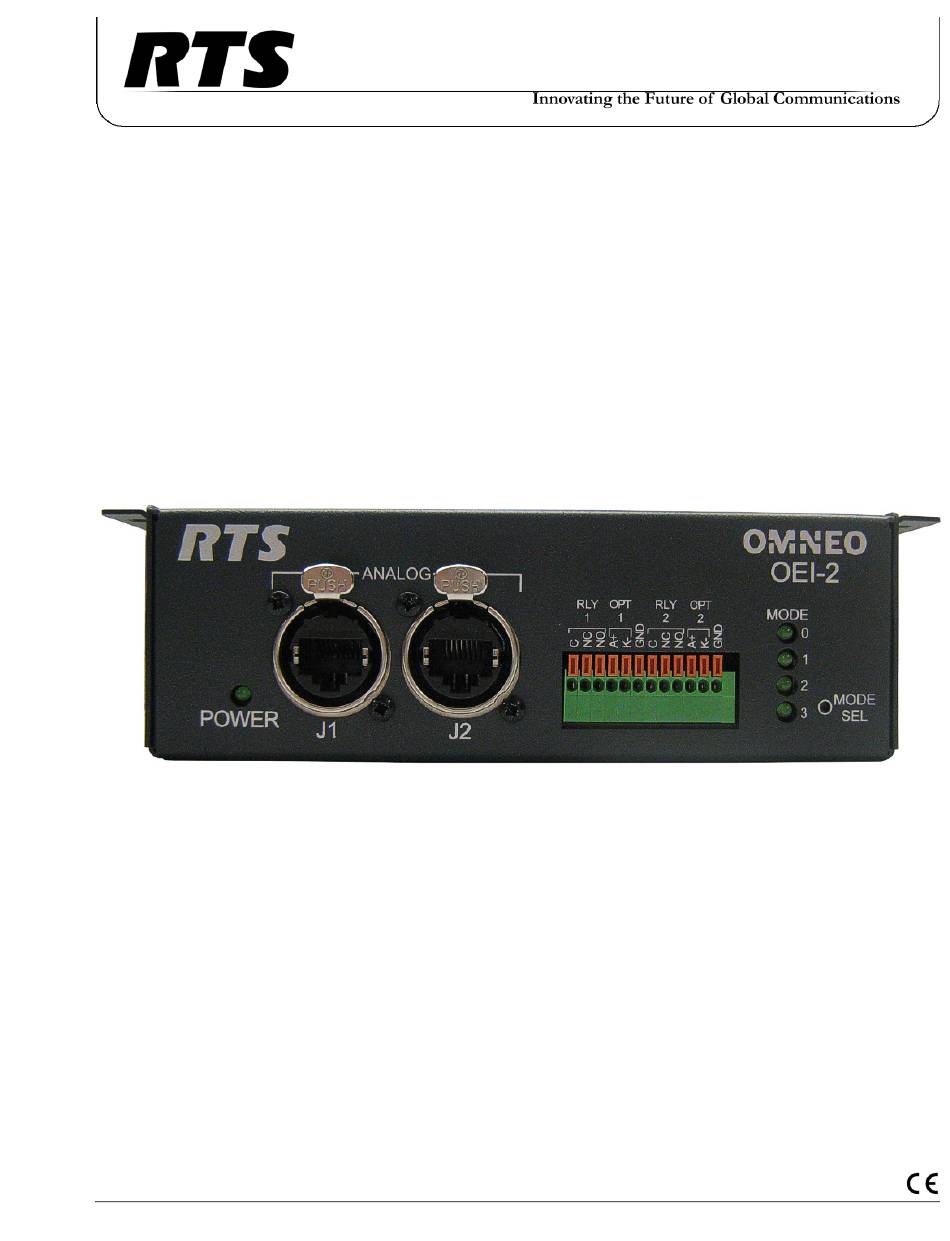

  • Page 1 OEI-2 OMNEO External Interface - 2 Channel Rev. 01 OCTOBER/2014 F.01U.287.527...
  • Page 2 WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR site below: SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. RTS Intercoms ......www.rtsintercoms.com/warranty WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPERABLE. RTS Digital RTSTW...
  • Page 3 OEI-2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 OEI-2 Bosch Security Systems, Inc. Rev. 01 F.01U.287.527 Technical Manual...

  • Page 5: Table Of Contents

    Table Contents INTRODUCTION ......................... 7 Description ...............................7 Features ..............................7 Reference View ............................8 Specifications ............................9 Connectors .............................10 System Drawings ...........................12 INSTALLATION ........................17 System Requirements ..........................17 Installation Instructions ..........................18 CONFIGURATION ........................21 OEI-2 Power Cycle ..........................21 Software Configuration ..........................21 Firmware Upload – OEI-2 ........................25 LED Indicators ............................26 User Modes ............................28 OPTIONAL POWER SUPPLY MOUNT ...................
  • Page 6 OEI-2 Technical Manual F.01U.287.527 Bosch Security Systems, Inc. Rev. 01...

  • Page 7: Introduction

    Introduction Description Offering the latest in state of the art technology, the OEI-2 enables connectivity between analog audio sources or legacy RTS keypanels and an OMNEO network. OMNEO sets the standard for the future of audio communications by offering high quality IP compatible audio, ultra low latency, and supports DHCP and Bonjour protocols.

  • Page 8: Reference View

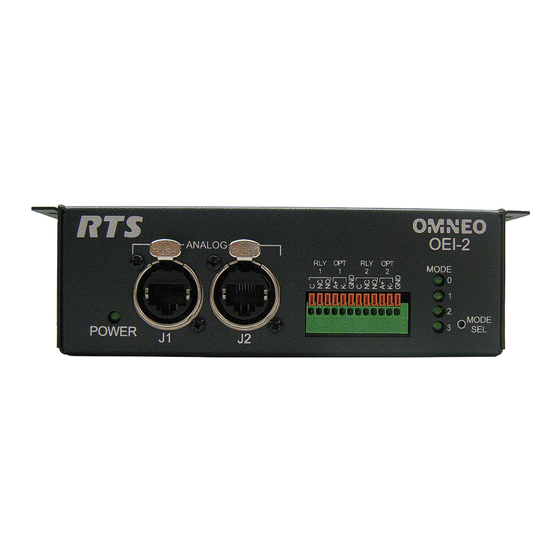

    8 Introduction OEI-2 Reference View OEI-2 Reference View FIGURE 1. Power Light Indicator Channel 1 and Channel 2 – Ethercon RJ-45 Connectors Relay and Opto Isolate Terminal Block Mode Indicator Lights Mode Selection Switch Ethernet Connectors Fiber Connector Power Connector Technical Manual Bosch Security Systems, Inc.

  • Page 9: Specifications

    OEI-2 Introduction 9 Specifications General Dimensions....................5.80in x 1.93in x 4.45in (147mm x 49mm x 113mm) Weight ..................................23.2 oz (658g) Power Requirements.................................5VDC, 2000mA Power Consumption @ 120VAC ............................21VA Power Consumption @ 220VAC ............................27VA Connectors 2– RJ-45 Ethernet Connectors SFP Fiber Connector ................................. LC Type GP Inputs 1–2 Type..................................

  • Page 10: Connectors

    Audio Out - Audio Out - Audio In - RS485 Data + RS485 Data - IMPORTANT: Keypanels support RTS protocol, USOC, and 568B CAT-5e wiring scheme for RS485 data. Terminal Block RLY 1 OPT 1 RLY 2 OPT 2 a. Anode b.
  • Page 11 OEI-2 Introduction 11 GPIO Input Diagram FIGURE 2. Bosch Security Systems, Inc. Technical Manual F.01U.287.527 Rev. 01...

  • Page 12: System Drawings

    12 Introduction OEI-2 System Drawings Same Frame, Same OMI Card IMPORTANT: An OMI Card is necessary for operation. Same Frame, Same OMI Card System FIGURE 3. Technical Manual Bosch Security Systems, Inc. F.01U.287.527 Rev. 01...
  • Page 13 OEI-2 Introduction 13 Same Frame, Different OMI Cards IMPORTANT: An OMI Card is necessary for operation. Same Frame, Different OMI Cards System FIGURE 4. IMPORTANT: ARNI is only required, if access beyond each subnet is desired by the OMI cards. Bosch Security Systems, Inc.
  • Page 14 14 Introduction OEI-2 Different Frames, Different OMI Cards IMPORTANT: An OMI Card is necessary for operation. Different Frames and Different OMI Cards System FIGURE 5. IMPORTANT: ARNI is only required, if access beyond each subnet is desired by the OMI cards. Technical Manual Bosch Security Systems, Inc.
  • Page 15 OEI-2 Introduction 15 Audio Only Audio Only System FIGURE 6. IMPORTANT: ARNI is only required, if access beyond each subnet is desired by the OMI cards. Bosch Security Systems, Inc. Technical Manual F.01U.287.527 Rev. 01...
  • Page 16 16 Introduction OEI-2 Technical Manual Bosch Security Systems, Inc. F.01U.287.527 Rev. 01...

  • Page 17: Installation

    CHAPTER 2 Installation System Requirements You must have the following: OEI-2 version 1.1.4 or later • OMI version 5.1.3 or later • OKI version 5.1.3 or later • IPedit version 3.1.0 or later • AZedit version 4.7.0 or later FWUT version 3.0.3 or later •...

  • Page 18: Installation Instructions

    18 Installation OEI-2 Installation Instructions Mounting the Unit To mount the OEI-2 to the underside of a desk, do the following: Holding the OEI-2 unit in the spot you want to mount it, make guide marks, using a marker, for the screw placement. TIP: To make attaching the unit easier, pre-drilling the screw holes is suggested.
  • Page 19 OEI-2 Installation 19 On the front of the OEI-2 unit, connect J1 or J2 to the Frame connector on the keypanel. Connect one end of the power supply to the OEI-2 and the other end to the wall outlet. The OEI-2 powers on. On initial power up, only the Power LED is seen. NOTE: If you need to mount the power supply (P/N RP_OEI_PS_BRK), see “Optional Power Supply Mount”...
  • Page 20 20 Installation OEI-2 Technical Manual Bosch Security Systems, Inc. F.01U.287.527 Rev. 01...

  • Page 21: Configuration

    CHAPTER 3 Configuration OEI-2 Power Cycle The OEI-2 has an external switch primarily used to power cycle the unit without disrupting power to the unit. For more information, see “Power On Reset” on page 36. To power cycle the OEI-2 unit, do the following: Using a straightened paperclip, press and hold the MODE SEL button for 10 seconds.
  • Page 22 22 Configuration OEI-2 From the pop-up menu, select OMNEO Configuration. The OMNEO Configuration window appears. Verify the Settings for OMNEO Card information is correct. From the Local Channel drop down list, select the channel you want to use to communicate from the OMI to the OEI-2 device.
  • Page 23 OEI-2 Configuration 23 Configure an OEI-2 Using IPedit To configure an OEI-2 with an OMI card using IPedit, do the following: IMPORTANT: You must be signed on with network administrator rights to complete these instructions. Start IPedit. From the Device menu, select Add. The Add Devices window appears.
  • Page 24 24 Configuration OEI-2 From the Device Catalog on the left, select the OEI-2 device. The Channel Configuration and Status Section populates. From the column headings, select the channel you want to configure (for example, Channel 1 or Channel 2). In the Channel Description field, enter a channel description, if applicable. From the Destination Type drop down menu, select the OMI card to which the channel is connected.

  • Page 25: Firmware Upload - Oei-2

    OEI-2 Configuration 25 Firmware Upload – OEI-2 To upload firmware to the OEI-2 unit, do the following: Start IPedit. NOTE: The OEI-2 unit must be configured before you upgrade the firmware. For more information, see “Configure an OEI-2 Using IPedit” on page 23. Select the OEI-2 device you want to update.

  • Page 26: Led Indicators

    26 Configuration OEI-2 LED Indicators Power Indicator LED The Power Indicator LED, located on the lower left corner of the OEI-2 front panel, indicates if power is being supplied to the unit or if there is a communication failure between the OEI-2 and the OMI. When power is supplied to the unit, the power indicator LED is a constant green.
  • Page 27 OEI-2 Configuration 27 If a keypanel is connected to the OEI-2 unit, but is not configured, the LED is off. Two (2) Keypanels Connected and One (1) Keypanel Not Configured FIGURE 9. FAULT Indicator When there is a communication failure, or a FAULT the power indicator starts blinking. FAULT Indicator FIGURE 10.

  • Page 28: User Modes

    Mode 3 – Select Port GPIO RTS IPedit Configuration Software must be used to configure the modes. Three (3) of the modes can be configured from the front panel of the OEI-2; IP Change Mode, Reset Configuration, and Power On Reset.
  • Page 29 OEI-2 Configuration 29 To enable IP Change Mode from IPedit, do the following: Start IPedit. From the left navigation, select the OEI-2 device you want to configure. The Device Information panel populates. Select the Enable IP Configuration via KP check box. Bosch Security Systems, Inc.
  • Page 30 30 Configuration OEI-2 IMPORTANT: For instructions on changing the IP Address of the OEI-2 device from a specific keypanel, refer to the appropriate keypanel manual. Change the IP Address of the OEI-2 device from an RP-1000 NOTE: Only OMNEO menu enabled devices can modify the IP Address of an OEI-2 device. To select the fixed addressing for the OMNEO device, do the following: Using the arrow keys, select OMNEO Setup.
  • Page 31 OEI-2 Configuration 31 Tap PGM. The focus moves to the next character in the device name. NOTE: You can also use the volume control to move the cursor position to the left and right. Repeat steps 19 and 20 until the Domain Name is entered. CLR deletes the current character.
  • Page 32 32 Configuration OEI-2 Mode 1b - Audio+Data on CH1 and Audio on CH2 Audio Direction Mode – Channel 2 FIGURE 13. Change the Channel Audio Direction via IPedit To change the channel audio direction using IPedit, do the following: Start IPedit. From the left navigation pane, select the OEI-2 device you want to modify.
  • Page 33 OEI-2 Configuration 33 Mode 2 - Set GPIO Mode NOTE: The Set GPIO Mode can only be configured using IPedit or from the front panel. Set GPIO Mode allows the user to select between two (2) modes: Single Keypanel – Channel 1 (LED 2 is solid) FIGURE 14.
  • Page 34 34 Configuration OEI-2 To configure the GPIO mode, do the following: Open IPedit. From the left navigation, select the OEI-2 unit you want to configure. The Device Information Pane populates. From the Mode drop down menu, select All Keypanels or 1 Keypanel. Technical Manual Bosch Security Systems, Inc.
  • Page 35 OEI-2 Configuration 35 Mode 3 - Select Port for GPI Select Port for GPIO Mode is used in conjunction with Mode 2. When 1 Keypanel Mode is selected, the user can select the port the GPI/Os are assigned. Reset Configuration Reset Configuration Mode allows the user to reset all modes to the factory defaults.
  • Page 36 36 Configuration OEI-2 Power On Reset The Power On Reset Mode allows the user to cycle power to the OEI-2 unit. Power On Reset FIGURE 17. To configure the Power On Reset mode from the front panel of the OEI-2, do the following: Using a straightened paperclip, press and hold the MODE SEL button for 10 seconds.

  • Page 37: Optional Power Supply Mount

    APPENDIX A Optional Power Supply Mount Power Supply Rackmount Assembly Instructions An optional power supply rackmount is available for purchase (P/N RP_OEI_PS_BRK), if needed. To mount the power supply rackmount assembly, do the following: Holding the rackmount assembly unit in the spot you want to mount it, make guide marks, using a marker, for the screw placement.
  • Page 38 OEI-2 Attach the power cord to the power supply unit. Attach Power Cord to Power Supply Unit FIGURE 19. Attach the other end of the power cord to the power outlet. Technical Manual Bosch Security Systems, Inc. F.01U.287.527 Rev. 01...
  • Page 39 OEI-2 NOTES Bosch Security Systems, Inc. Technical Manual F.01U.287.527 Rev. 01...
  • Page 40 Bosch Security Systems, Inc. 12000 Portland Avenue South Burnsville, MN 55337 U.S.A. www.boschcommunications.com...
