RTS TIF 2000A Manual
Digital hybrid telephone line interface
Hide thumbs
Also See for TIF 2000A:
- Manual (28 pages) ,
- User manual (24 pages) ,
- Specification sheet (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for RTS TIF 2000A
Summary of Contents for RTS TIF 2000A

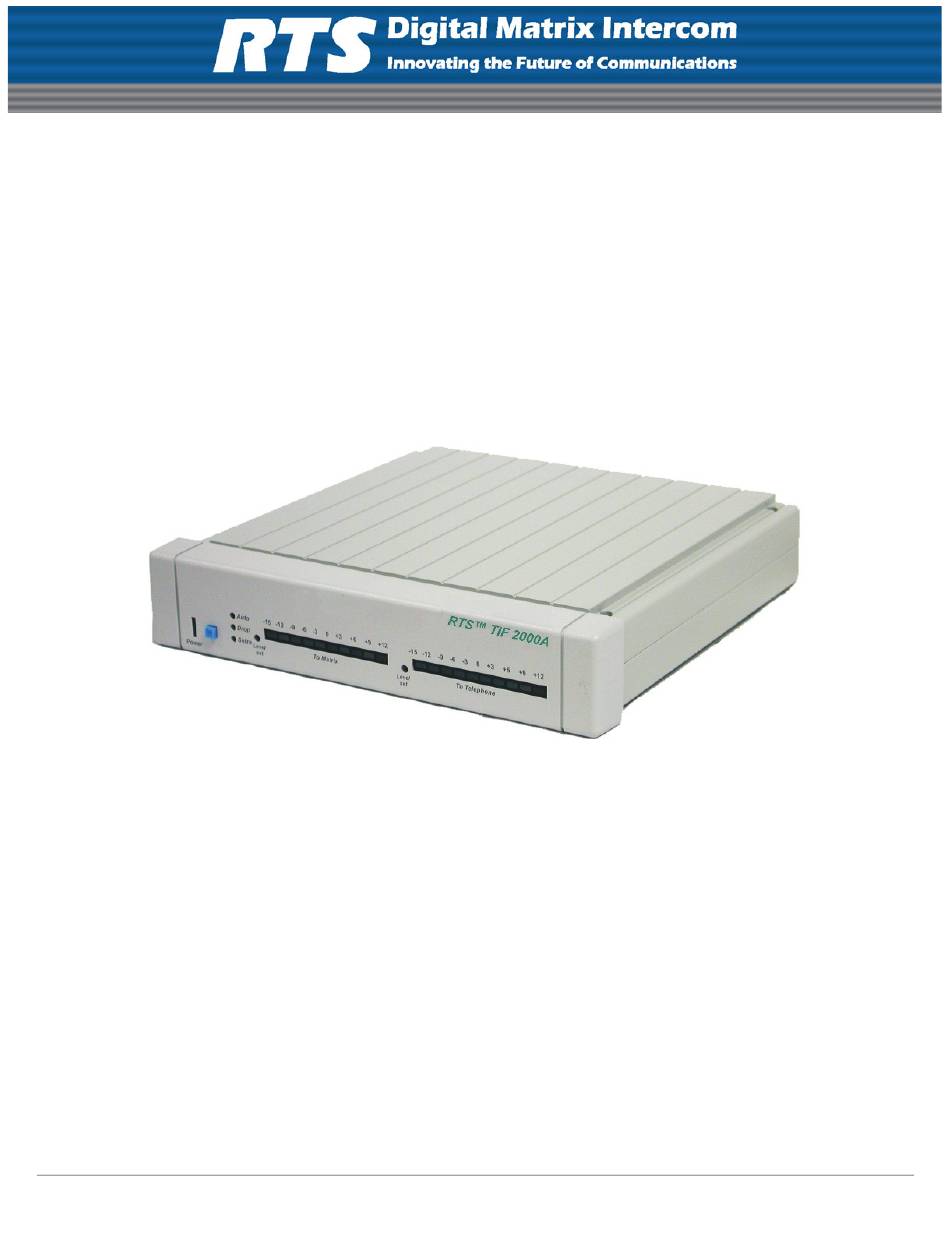

- Page 1 Model TIF 2000A Digital Hybrid Telephone Line Interface 9350-7823-000 Rev E SEPT/2009...
- Page 2 ROPRIETARY OTICE HIPPING TO THE ANUFACTURER The product information and design disclosed herein were originated by All shipments of product should be made via UPS Ground, prepaid (you and are the property of Bosch Security Systems, Inc. Bosch reserves all may request from Factory Service a different shipment method).
-
Page 3: Table Of Contents
Table Contents INTRODUCTION AND DESCRIPTION ....................3 Description ................................3 ............................4 RONT AND ANEL EATURES Specifications ................................4 INSTALLATION AND OPERATION ......................5 Installation .................................5 DIP S (S201) .............................5 ANEL WITCH Auto-Answer ..................................5 Generate Ring Signal ................................5 Password Required ................................5 Intercom Port Address .................................5 Full Duplex Mode ................................6 DIP S (S202) ..............................8... - Page 4 ................................18 NSWER ................................18 ANUAL NSWER Using the TIF-2000A From the Telephone ........................19 DTMF C ..................................19 ODES ELEPHONE NTERFACE EQUIREMENTS 2008 ..................................21 CTOBER...
-
Page 5: Introduction And Description
Introduction and Description This manual describes the installation, programming, and operating procedures for the RTS Model TIF2000A Digital Hybrid Telephone Line Interface. Since TIF2000A functions as a keypanel, the user may also need to refer to the manuals and/or the AZedit online help files for information on configuring certain features. -
Page 6: Front And Rear Panel Features
Front and Rear Panel Features Audio to Matrix Line Mode Power Audio to Telephone Line Level Meter Indicator Indicator Level Meter Seizes & Audio to Matrix Drops Line Audio to Telephone Line Level Adjustment Level Adjustment Data Intercom Matrix Telephone Line Power Address &... -
Page 7: Installation And Operation
CHAPTER 2 Installation and Operation Installation Rear Panel DIP Switch (S201) The rear panel DIP switch contains switches to configure the most often change options. These include: • auto-answer ON/OFF • ring signal ON/OFF • password ON/OFF • intercom port address •... -
Page 8: Full Duplex Mode
use a 1-8 address scheme for their ports (e.g., ports 1-8 have addresses 1-8, ports 9-16 have addresses 1-8, etc.). CS-9xxx systems use a 1-10 scheme for port addresses (e.g., ports 1-10 have addresses 1-10, ports 11-20 have addresses 1-10, etc.). To set the address for ADAM, ADAM CS, or Zeus systems, do the following: Determine the port number that will be used for the TIF2000A. - Page 9 Correspondence between address numbers and intercom port numbers for ADAM, ADAM CS, and Zeus systems TABLE 1. Address Card Numbers (bold headings) and Port Numbers Cards 1 - 25 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 17 25 33 41 49 57 65 73 81 89 97 105 113 121 129 137 145 153 161 169 177 185 193 10 18 26 34 42 50 58 66 74 82 90 98 106 114 122 130 138 146 154 162 170 178 186 194 19 27 35 43 51 59 67 75 83 91 99 107 115 123 131 139 147 155 163 171 179 187 195...
-
Page 10: Internal Dip Switch (S202)
Address DIP Switch Settings TABLE 2. DIP Switch Settings Logical Keypanel Number DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN DOWN NOTE: Shaded area is for CS9xxx system address only. Internal DIP Switch (S202) Internal DIP switch (see Figure 3 on page 8) is accessed by removing the top cover. -
Page 11: Dtmf Or Pulse Dial Selection
DTMF or Pulse Dial Selection Switch 3 sets the dialing mode to either DTMF (Dual Tone Multi-Frequency) or pulse. When the switch is in the OFF position, DTMF dialing is selected. When the switch is in the ON position, pulse dialing is selected. Remove Loosen Screw Placement On The Back Panel... -
Page 12: Point-To-Point Seize
Ring Count Settings TABLE 3. # of Rings Point-to-Point Seize Switch 4 turns ON and OFF the point-to-point feature. When the switch is in the OFF position, normal line seize operation (via a keypanel) is selected. When the switch is in the ON position, a line will be seized immediately upon the designated TIF2000A’s talk key being pressed via the keypanel. -
Page 13: Rack Mounting
Password Configuration TABLE 4. PW Length Rack Mounting There are two options for rack mounting the TIF2000A. If a single unit is to be rack mounted, attach an MCP-2 rack mount kit. If two units are to be mounted side-by-side, attach an MCP-1 rack mount kit. See Figure 4 for a depiction of the two rack mount kits. -
Page 14: Power Supply
There are two telephone connections provided on the rear of Password Settings TABLE 5. the TIF2000A. Plug the telephone line into the jack labeled Password To Matrix Phone Line. You may also plug a standard 3,8,8,1 telephone into the jack labeled Loop Thru. 4,2,4,0 NOTE: The standard telephone plugged into the Loop... -
Page 15: Setting Audio Levels
Setting Audio Levels Audio levels to the intercom matrix and to the telephone line can be adjusted via the trim pots located on the front panel. Setting Audio Levels To Intercom Matrix Adjustment may be made via the front panel control (see Figure 1). To adjust the control use a small flat blade screw driver or trim pot adjustment tool Initially, set the front panel level control for mid-range. -
Page 16: Setting Audio Levels To Telephone Lines
DE9 Intercom Cable FIGURE 6. Setting Audio Levels to Telephone Lines Adjustment may be made via the front panel control (see Figure 1). To adjust the control use a small flat blade screw driver or trim pot adjustment tool. Initially set the front panel level control for mid-range. Talk at your normal level and adjust the control for the best audio quality while avoiding going into the red section of the audio meter (to Telephone) located on the front panel. -
Page 17: Operation
The status reported for the TIF-2000A contains a number corresponding to the country configuration. This is reported as LOCALE=XX, where XX is a specific number for each country. The possible configurations are: Country Codes TABLE 6. LOCALE # Country or Countries North America, Korea, Taiwan Belgium France... -
Page 18: Dialing A Call
Dialing a Call To dial a call on the TIF-2000A using a KP-96 or KP-32, do the following: Press the listen key for the line you wish to dial on. This will allow you to hear dial tone, and your DTMF dialing tones. Enter dial mode by entering PHONE-PGM-T. -
Page 19: Re-Dialing The Last Number
Re-dialing the Last Number The TIF-2000A remembers the last number which it has dialed. To redial the last number, do the following: Enter dialing mode by following instructions for dialing a call. Enter CLR-0-0. The TIF-2000A automatically redials the last number it dialed. Momentarily release the talk key to exit dialing mode. -
Page 20: Tif-2000A System Setup To Receive Calls
TIF-2000A System Setup To Receive Calls To the intercom system, the TIF-2000A is similar to a keypanel, If the phone lines are to be used for outgoing calls only, then no programming in AZedit is necessary. If users are going to phone into the intercom system from the outside, then the TIF4000 needs to be configured to allow them to use the phone line in mush the same way a local user uses the keypanel. -
Page 21: Using The Tif-2000A From The Telephone
Using the TIF-2000A From the Telephone The TIF-2000A will behave differently depending on how it is programmed. It is up to the operator who programs the TIF- 2000A to convey to the user what to expect. If the user is not familiar with the operation of the TIF-2000A, it is best to keep the operation as simple as possible. - Page 22 You may reprogram the talk and listen assignments on 1-7, just as you can on a keypanel (if they are not restricted via AZedit). Note, the sequences are the same as the sequence you would use from a keypanel, except that you must first enter programming mode by pressing 9. NOTE: The use of programming mode is discouraged due to a lack of feedback to the user to verify a programming sequence.
-
Page 23: Telephone Interface Requirements Form October 2008
October 2008 The RTS® TIF-4000 Digital Hybrid Telephone Line Interface has been designed to respond to ringing for auto-answer and to respond to a number of conditions to detect hang-up. These conditions are (in the standard product) based upon the telephone systems of the US and other select countries.
