Rev. 905-0277-Z1
CoaXPress I/F
1.6M pixels CMOS (RAW) Camera
VCC-SXCXP5R
Product Specifications
& Operational Manual
(P relim inary)
CIS Corporation
©2022 CIS Corporation. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCC-SXCXP5R and is the answer not in the manual?

Questions and answers

Related Manuals for CIS VCC-SXCXP5R

Summary of Contents for CIS VCC-SXCXP5R

  • Page 1 Rev. 905-0277-Z1 CoaXPress I/F 1.6M pixels CMOS (RAW) Camera VCC-SXCXP5R Product Specifications & Operational Manual (P relim inary) CIS Corporation ©2022 CIS Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Camera Timing I/O ..........................23 4.16. User ID ..............................24 4.17. Temperature Indication ..........................24 4.18. Connection Reset ............................ 24 4.19. Gamma Correction ..........................25 4.20. Image Quality Selection Mode ........................25 4.21. White Balance............................25 ©2022 CIS Corporation. All rights reserved.
  • Page 3 6.1. Camera Dimensions ..........................28 6.2. Optical Axis Accuracy ..........................29 Case for Indemnity (Limited Warranty) ........................ 30 7.1. Product Warranty ............................ 30 7.2. CMOS Defective Pixels ..........................30 7.3. Product Support ............................30 ©2022 CIS Corporation. All rights reserved.

  • Page 4: Handling Precautions

    □ The camera must not be used under conditions or environments other than those specified in this manual. 1.3. Disclaimers (Exception Clause) CIS should not be liable for any damages or losses if; damages or losses are caused by earthquake, lightning strike, fire, flood, or other acts of God.

  • Page 5: Product Outline

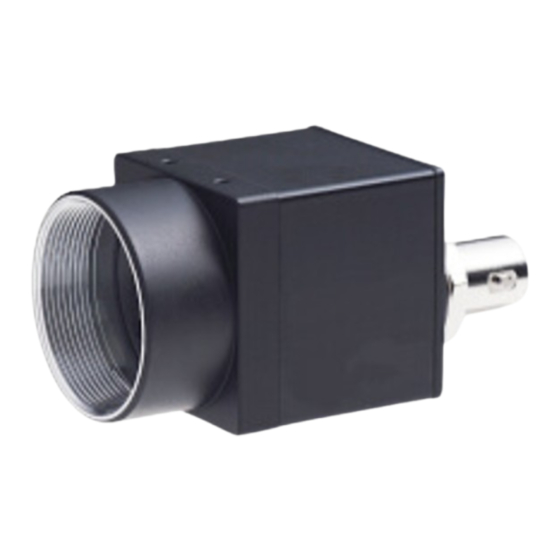

    Rev.905-0277-Z1 2. Product Outline VCC-SXCXP5R is color camera with CoaXPress interface. Using 1/2.9”, global shutter type 1.6M pixels CMOS image sensor. Complies with CoaXPress Version 1.1.1. Must have function ready for Machine Vision applications such as trigger shutter, ROI, Gain, black level adjustment, defective pixel correction, and PoCXP. Suitable for various FA/Machine vision applications.

  • Page 6: Specifications

    Partial scan User can set vertical/horizontal 1 area. Power requirements PoCXP: 18.5~26V Power consumption (Max) 2.95W(CXP-3), 3.15W(CXP-6) [with free run] Mechanical Specifications Dimensions H:29mm W:29mm D:29mm excluding projection. Weight Approx. 50g Lens mount C mount ©2022 CIS Corporation. All rights reserved.

  • Page 7: Input And Output Specifications

    □ 5.0V CMOS logic level output □ Output voltage Low: 0.55Vdc (Max), High: 3.8Vdc (Min) □ This is to output timing signals generated in the camera. Set the signal to output with LineSource of DigitalIOControl. +5.0V (CAMERA_INTERNAL) SIGNAL_OUT SN74LV1T32DCKR(Equivalent) ©2022 CIS Corporation. All rights reserved.

  • Page 8: External Connector Pin Assignment

    Green lighting Completion of connection between device and host. Green fast blinking [12.5Hz] Transmitting video data. Orange slow blinking [1Hz] Waiting for a trigger input. Red fast blinking [12.5Hz] System error or inappropriate trigger input. ©2022 CIS Corporation. All rights reserved.

  • Page 9: Spectral Response

    The following command enables to readout frame rate of internal sync. mode. AcquisitionControl AcquisitionFrameRate (ReadOnly)  AcquisitionFrameRate: This is to indicate the frame rate with internal sync. mode (free run mode). ※Even with external trigger mode, frame rate with internal sync. mode will be shown. ©2022 CIS Corporation. All rights reserved.

  • Page 10: Frame Rate Of External Trigger Sync. Mode

    Default. (Camera keeps those values.) ConnectionConfig, PixelFormat, ImageQualityMode, ReverseX, and ReverseY are not subject to UserSetLoad so □ that camera keeps values in operation. If you wish to change those values, set values with each command. ©2022 CIS Corporation. All rights reserved.

  • Page 11: Link Speed And Link Count

    BayerGB12 : Bayer 12bit (ReverseY= On)  BayerBG8 : Bayer 8bit (ReverseX= On, ReverseY= On)  BayerBG10 : Bayer 10bit (ReverseX= On, ReverseY= On)  BayerBG12 : Bayer 12bit (ReverseX= On, ReverseY= On)  ©2022 CIS Corporation. All rights reserved.

  • Page 12: Flip

    VCC-SXCXP5R Rev.905-0277-Z1 Bayer Pattern of this model, VCC-SXCXP5R is ”RGGB” as the left image. Ｒ Ｇ When set flipping to X and Y direction with 4.5. Flip, bayer pattern will also flip. Ｇ Ｂ According to this, RG, GR, GB, and BG of PixelFormat will also change.

  • Page 13: Trigger Mode

    Description Dataout Delay Time from ExposureActive falling to FrameActive rising [H] V-blanking Vertical blanking line number [H] Delay time from ExposureActive falling to completion of exposure inside Actual Exposure Delay 14.26 the sensor. [μs] ©2022 CIS Corporation. All rights reserved.

  • Page 14: External Trigger Sync. Mode

    Pulse width trigger shutter mode: Exposure during high active period. (TriggreWidth) LevelLow: Pulse width trigger shutter mode: Exposure during low active period. (TriggreWidth) (※) ※When set FallingEdge and LevelLow with LinkTrigger0, disturbance images may occur at the first time grabbing after setting. ©2022 CIS Corporation. All rights reserved.

  • Page 15: Fixed Trigger Shutter Mode + H Sync Trigger (Linesync)

    ※Please refer to the time for 1 line in Section 3.5.1. Frame Rate of Internal Trigger Sync. Mode for time for 1H. ※ExposureActive is output for the amount of time obtained by subtracting the Actual Exposure Delay from the ExposureTime setting. ©2022 CIS Corporation. All rights reserved.

  • Page 16: Fixed Trigger Shutter Mode + Clk Sync. Trigger (Clocksync)

    ※Please refer to the time for 1 line in Section 3.5.1. Frame rate of Internal Trigger Sync. Mode for time for 1H. ※ExposureActive is output for the amount of time obtained by subtracting the Actual Exposure Delay from the ExposureTime setting. ©2022 CIS Corporation. All rights reserved.

  • Page 17: Pulse Width Trigger Shutter Mode + H Sync. Trigger (Linesync)

    [μs] Dataout Delay Time from ExposureActive falling to FrameActive rising [H] ※Please refer to the time for 1 line in Section 3.5.1. Frame rate of Internal Trigger Sync. Mode for time for 1H. ©2022 CIS Corporation. All rights reserved.

  • Page 18: Pulse Width Trigger Shutter Mode + Clk Sync. Trigger (Clocksync)

    [μs] Dataout Delay Time from ExposureActive falling to FrameActive rising [H] ※Please refer to the time for 1 line in Section 3.5.1. Frame rate of Internal Trigger Sync. Mode for time for 1H. ©2022 CIS Corporation. All rights reserved.

  • Page 19: Restrictions On Trigger Pulse Input Timing

    (2) User can input the next trigger while reading out images with TriggerSyncMode=LineSync, However, end exposure before completion of readout is invalid. Make sure to end exposure after completion of readout, then start readout. (3) Do not input the next trigger during exposure period with TriggerSyncMode=LineSync and TriggerActivation=RisingEdge/FallingEdge. ©2022 CIS Corporation. All rights reserved.

  • Page 20: Exposure Time

    User can adjust black level of image sensor proportionally. This is a value converted by 12bit. The value will be equivalent to 1/4 of setting value with 10bit, and equivalent to 1/16 of setting value with 8bit. ©2022 CIS Corporation. All rights reserved.

  • Page 21: Partial Scan (Roi)

    ※Make sure to select EffectiveRegion when acquire images. ※When there is no effective Region, user cannot select EffectiveRegion.  RegionMode: Set valid/invalid of Region0. With this model VCC-SXCXP5R, RegionMode is always valid (On).  RegionDestination: Select Stream to output. VCC-SXCXP5R is fixed to Stream0.

  • Page 22: Defective Pixel Correction

    On/Off  DefectPixelCorrection: This is to turn On/Off defective pixel correction processing. ※Defective pixel correction data at factory and defective pixel correction data registered by user will be both controlled at the same time. ©2022 CIS Corporation. All rights reserved.
  • Page 23 This is to set a threshold value (12bit equivalent) for user defective pixel detection. Data which exceeds the signal level designated here will be registered. With 8bit images, designate a value of 16 times of signal level as a threshold value. ©2022 CIS Corporation. All rights reserved.
  • Page 24 When vertical flip is ON, camera deletes user registered defective pixel information entirely with DefectPixelDefault. When vertical flip is OFF, camera does not delete user registered defective pixel information. ©2022 CIS Corporation. All rights reserved.

  • Page 25: Test Pattern Indication

    4.12. Test Pattern Indication This is to display test pattern from camera. This is useful to check if your system is operating properly. ImageFormatControl TestPattern ColorBar ColorBarMoving ※Displaying test pattern and cursor are mutually exclusive. ©2022 CIS Corporation. All rights reserved.

  • Page 26: Cursor Indication

    ExposureActive FrameActive LineActive TriggerPacketActive  LineSelector: Select line to set/select. Line0: No.5 pin of 6pins circular connecter Line1: No.3 pin of 6pins circular connecter  LineMode: Indicate the I/O direction of the selected line. ©2022 CIS Corporation. All rights reserved.

  • Page 27: User Id

    Reset the device and reconnect it automatically. ※ Please note that it takes few seconds to reconnect the device. ※Until completed reconnecting the device, error might be indicated temporary. Reacquire the values with Refresh Tab etc. after completed reconnection. ©2022 CIS Corporation. All rights reserved.

  • Page 28: Gamma Correction

    : User can set any values in the range of x0~x8 per 0.01 step for gain of the selected color composition. When BlanaceRatioSelector = Red/Blue, white balance will be invalid if user sets 1.0 for both BalanceRatioRed and BalanceRatioBlue. ©2022 CIS Corporation. All rights reserved.

  • Page 29: Shading Correction

    ・ Execute UserSetSave to save the correction data of Table1~Table3 into non-volatile memory at the same time. ・ Even execute Default with UserSetLoad, camera maintains correction data. ・ User cannot execute shading detection when ShadingCorrectionDataSelector is Off. ©2022 CIS Corporation. All rights reserved.

  • Page 30: Factory Settings

    CoaXPress connection status indication mode LineSelector Line0 Line0 LineSource FrameTrigger Trigger input DeviceUserID User set letter string (16 letters) DeviceUserString User set letter string (256 letters) ※ ConnectionConfig, PixelFormat, ImageQualityMode, ReverseX, and ReverseY arenot subject to UserSetLoad. ©2022 CIS Corporation. All rights reserved.

  • Page 31: Dimensions

    VCC-SXCXP5R Rev.905-0277-Z1 Dimensions 6.1. Camera Dimensions 935-0178-00 (Unit:mm) ©2022 CIS Corporation. All rights reserved.

  • Page 32: Optical Axis Accuracy

    VCC-SXCXP5R Rev.905-0277-Z1 6.2. Optical Axis Accuracy ©2022 CIS Corporation. All rights reserved.

  • Page 33: Case For Indemnity (Limited Warranty)

    CIS applies defective pixel correction prior to shipment of the product. However, the number of defective pixels are subject to increase due primarily to the effect of cosmic rays. Due to this nature, CIS should not hold responsible for the natural increase of defective pixels.
