VCC-5CL5M/R
Rev.905-0073-01
CMOS MV Cameras
VCC-5CL5M/R
Product Specifications
& Operational Manual
CIS Corporation
©2017 CIS Corporation. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCC-5CL5M and is the answer not in the manual?

Questions and answers

Related Manuals for CIS VCC-5CL5M

Summary of Contents for CIS VCC-5CL5M

  • Page 1 VCC-5CL5M/R Rev.905-0073-01 CMOS MV Cameras VCC-5CL5M/R Product Specifications & Operational Manual CIS Corporation ©2017 CIS Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Case for Indemnity (Limited Warranty) ......................22 7.1. Product Warranty ..........................22 7.2. CMOS Pixel Defect ..........................22 Supplementary Note ..........................22 8.1. Product Support ..........................22 8.2. Ordering Information......................... 22 8.3. Licensing ............................22 ©2017 CIS Corporation. All rights reserved.

  • Page 3: Handling Precautions

    1.3. Disclaimers (exception clause) CIS shall be exempted from taking responsibility and held harmless for damages or losses incurred by the following cases. In case damages or losses are caused by earthquake, lightning strike, fire, or other acts of God.

  • Page 4: Product Outline

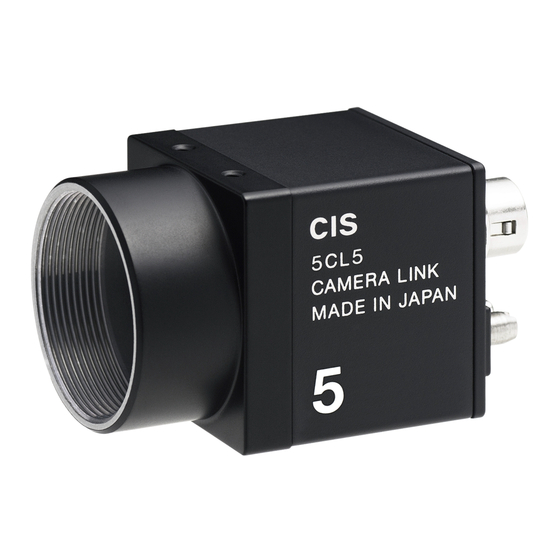

    Product Outline VCC-5CL5M and VCC-5CL5R are Camera Link interfaced, and 5M resolution industrial camera modules. 5M pixels, 2/3 type CMOS sensor is utilized. Entire pixels (2248 x 2048) can be read out at 35fps (at 3 TAP output). 29mm cubic in size with 5M resolution, yet cost effective cameras.

  • Page 5: Specifications

    Full Frame 35.84fps (3 TAP), 29.09fps (2 TAP), 14.56fps (1 Tap) (4) Effective video output The maximum 2448(H) x 2048(V) (5) Sensitivity 400 lx 30fps (B/W: VCC-5CL5M) F5.6 200 lx 30fps (RAW: VCC-5CL5R) (6) Minimum illumination F1.4 0.1 lx 30fps (B/W: VCC-5CL5M) F1.4...
  • Page 6 : 1 time / 6 sides (23) Operational Temperature/ Temperature: -5 ～ 45℃ environment Humidity Humidity: 20 ～ 60%RH with no condensation (24) Storage environment Temperature/ Temperature: -25 ～ 60℃ Humidity Humidity: 20 ～ 80%RH with no condensation ©2017 CIS Corporation. All rights reserved.

  • Page 7: Part Names And Functions

    10mm. ②. Image sensor / Optical filter CMOS image sensor surface. A dummy glass is attached on the surface of the sensor (VCC-5CL5M). ③. Status LED The LED lights when the camera is connected and power is turned ON.
  • Page 8 CC4+, CC4- Not used ⑥. Product Name Plate When you need to contact CIS for analysis or questions, please let us know of its model name and serial number on the product name plate. ⑦. Screw holes for camera installation Screw holes to attach the camera.

  • Page 9: Cmos Spectral Response

    VCC-5CL5M/R Rev.905-0073-01 3.3. CMOS Spectral Response ※The lens characteristics and illuminant characteristics are excluded. VCC-5CL5M (Mono) VCC-5CL5R (Color) ©2017 CIS Corporation. All rights reserved.

  • Page 10: Output Data Configuration

    Output Data Array X3_OUT3 P_C7 P_C6 P_B7 P_B6 P_A7 P_A6 X2_OUT2 DVAL FVAL LVAL P_C5 P_C4 P_C3 P_C2 X1_OUT1 P_C1 P_C0 P_B5 P_B4 P_B3 P_B2 P_B1 X0_OUT0 P_B0 P_A5 P_A4 P_A3 P_A2 P_A1 P_A0 CLK_OUT ©2017 CIS Corporation. All rights reserved.

  • Page 11: Remote Communication Function

    Start from “0x” or “0X” Either capital letters or lower case can be input. (a～f, A～F are both acceptable). Input range: 0x0000～0xFFFF In case of Decimal number: Only ‘0’～’9’ are acceptable. Input range: 0～65535 ©2017 CIS Corporation. All rights reserved.
  • Page 12 [Send] SU[sp]10[sp]30[¥r]or[¥n] [Returned Value] [¥r] [¥n] [Line feed] [Returned Value] >[sp] [Prompt + Space] 【Example of SAVE Command】 [Send] SAVE[¥r]or[¥n] [Returned Value] [¥r] [¥n] [Line feed] [Returned Value] >[sp] [Prompt +Space] [¥r]=CR(0x0D) [¥n]=LF(0x0A) [sp]=Space(0x20) ©2017 CIS Corporation. All rights reserved.

  • Page 13: Function Settings

    Preset Gain 21.5dB x12 times Preset Gain 24dB x16 times Preset Gain 30dB x32 times Preset Gain 36dB x64 times Preset Gain 42dB x128 times Manual Gain Control Setting value of the Address 21. ©2017 CIS Corporation. All rights reserved.
  • Page 14 Please refer to the Section 5. Function settings, for the details of ROI function. (16) Sub-sampling function (default) (Valid only for VCC-5CL5M) on Hx2/Vx2 Sub-sampling 1224(H) x 1024(V) 3tap: 70.06fps, 2tap: 56.87fps, 1tap: 28.47fps Cannot be used with ROI at the same time. ©2017 CIS Corporation. All rights reserved.

  • Page 15: Details On Function Settings

    ・ This is to detect the signal edge of external trigger input and read out video after completion of exposure. ・ Shutter time for exposure period is the pulse width of the trigger input signal. ©2017 CIS Corporation. All rights reserved.

  • Page 16: Shutter Time

    322μs 1/2500s 394μs 1/1250s 773μs 1/6000s 161μs 1/5000s 196μs 1/2500s 377μs 1/12500s 81μs 1/10000s 96μs 1/5500s 179μs 1/25000s 41μs 1/20000s 47μs 1/12500s 80μs Manual Shutter as Continuous mode Setting value with the Address 24. ©2017 CIS Corporation. All rights reserved.
  • Page 17 24bit Trigger shutter mode 1/50000s ～ 1/5s Setting range = 6μs ～ 200ms 1μs step Preset Shutter time (μs) = (Setting value) + 14μs Width Shutter time (μs) = (Trigger Pulse Width) + 14μs ©2017 CIS Corporation. All rights reserved.

  • Page 18: White Balance Function

    648 (H) x 480(V) ROI_8 Example of manual color temperature settings (0,0) Color temperature MWB R/B gain R gain (%) B gain (%) 2800K 3200K 4000K 4500K 5500K Color Bayer Pattern 6500K 9000K ©2017 CIS Corporation. All rights reserved.

  • Page 19: Roi Function (Region Of Interest)

    Offset (x,y) = (824, 728) V total lines = 632 648(H) x 480(V) 145.6 118.2 59.17 Offset (x,y) = (908, 788) V total lines = 512 Manual ROI Function Setting values with the address 51 ～ 54 ©2017 CIS Corporation. All rights reserved.
  • Page 20 2tap Shortest Interval on Trigger input = (Shutter time) + ((Active Vline) + 33) x 1line: 16.5μs 1tap Shortest Interval on Trigger input = (Shutter time) +( (Active Vline) + 33) x 1line: 33.0μs ©2017 CIS Corporation. All rights reserved.

  • Page 21: Dimensions

    VCC-5CL5M/R Rev.905-0073-01 Dimensions 6.1. Camera Outline Drawing ©2017 CIS Corporation. All rights reserved.

  • Page 22: Sensor Optical Axis Accuracy

    VCC-5CL5M/R Rev.905-0073-01 6.2. Sensor Optical Axis Accuracy ©2017 CIS Corporation. All rights reserved.

  • Page 23: Case For Indemnity (Limited Warranty)

    If you use the product properly and discover a defect during the warranty period, and if that was caused by designing or manufacturing, CIS Corporation, at its option, repairs or replaces it at no charge to you. Products out of warranty period will be subject to charge. CIS repairs the products as long as it is repairable. ...
