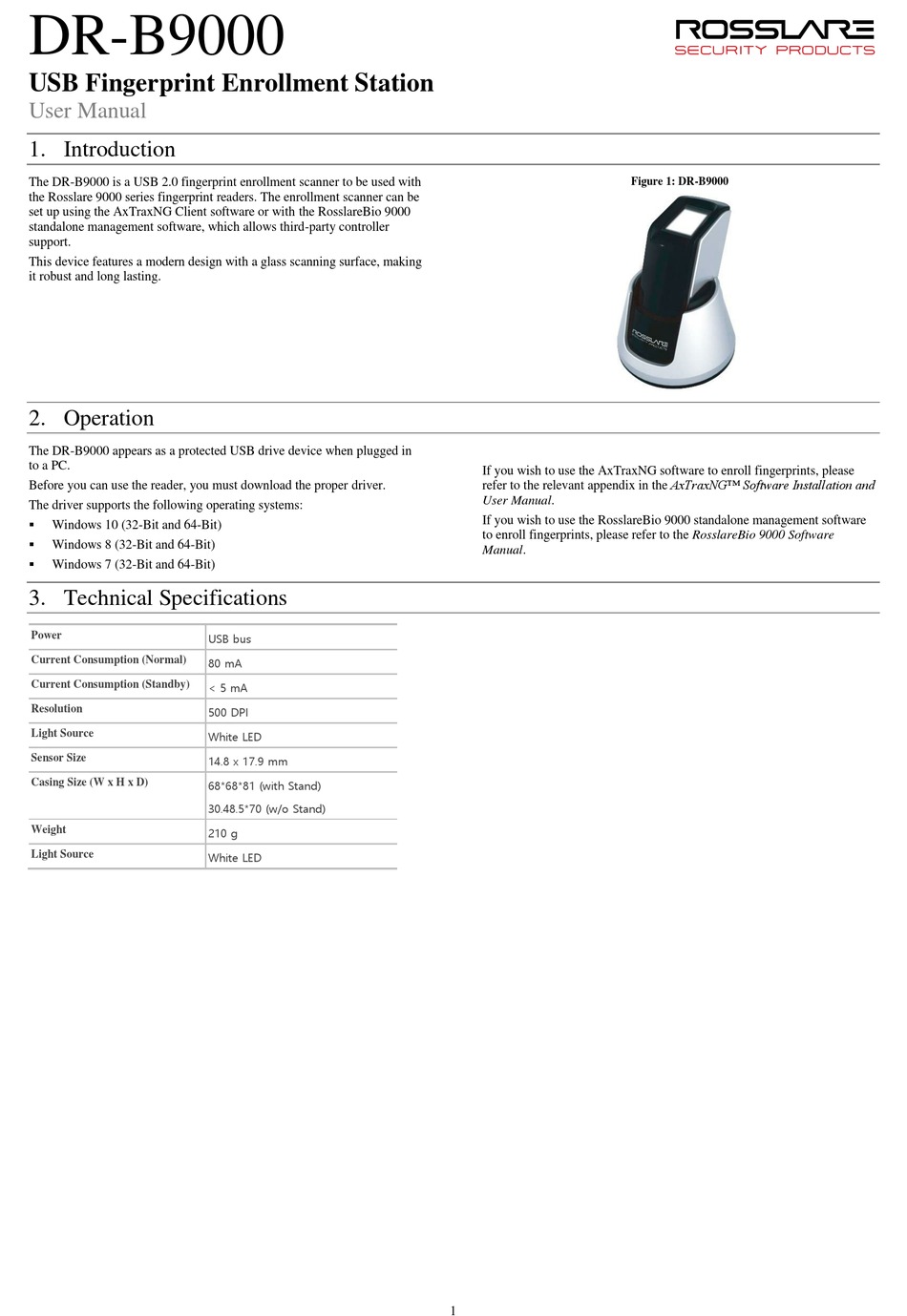

Rosslare DR-B9000 User Manual

DR-B9000
USB Fingerprint Enrollment Station
User Manual

1. Introduction

The DR-B9000 is a USB 2.0 fingerprint enrollment scanner to be used with
the Rosslare 9000 series fingerprint readers. The enrollment scanner can be
set up using the AxTraxNG Client software or with the RosslareBio 9000
standalone management software, which allows third-party controller
support.
This device features a modern design with a glass scanning surface, making
it robust and long lasting.

2. Operation

The DR-B9000 appears as a protected USB drive device when plugged in
to a PC.
Before you can use the reader, you must download the proper driver.
The driver supports the following operating systems:

Windows 10 (32-Bit and 64-Bit)

Windows 8 (32-Bit and 64-Bit)

Windows 7 (32-Bit and 64-Bit)

3. Technical Specifications

Power
Current Consumption (Normal)
Current Consumption (Standby)
Resolution
Light Source
Sensor Size
Casing Size (W x H x D)
Weight
Light Source
USB bus
80 mA
< 5 mA
500 DPI
White LED
14.8 x 17.9 mm
68*68*81 (with Stand)
30.48.5*70 (w/o Stand)
210 g
White LED
If you wish to use the AxTraxNG software to enroll fingerprints, please
refer to the relevant appendix in the AxTraxNG™ Software Installation and
User Manual.
If you wish to use the RosslareBio 9000 standalone management software
to enroll fingerprints, please refer to the RosslareBio 9000 Software
Manual.
1
Figure 1: DR-B9000
