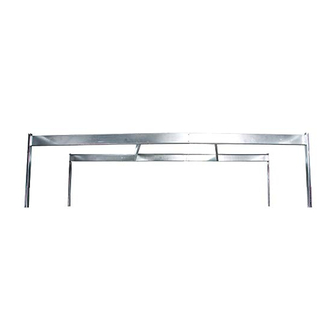

Universal Attic Kit
Model No. AT101
IMPORTANT: Before you start,
remove Owner's Manual & Assembly
Instructions from main carton of your
storage building and locate Interior
Dimensions on the front cover.
Kit fits all 10' wide mid wall braced
ARROW storage buildings produced
since 1979. Kit can be adapted easily
for buildings with no mid wall frame,
for older buildings and buildings by
other manufacturers by drilling as
needed.
Remove the parts from the carton
and lay them out in similar groups
with the part numbers facing up.
Check the part numbers and quantity
with the parts list.
Before you start, read the entire
manual to plan how you want to use
your Attic Kit.
Owner's Manual & Assembly Instructions
#8-32 Hex Nut (48)
Keep this Owner's Manual for future reference.
* If you find a part is missing, include the model no. of your kit and contact:
Part
Number
8225
8226
8227
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE
TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP.
WEAR GLOVES WHEN HANDLING METAL PARTS.
65103
Part
Description
Post
Long Attic Channel
Short Attic Channel
65923
#8-32x3/8" Bolt (48)
Quantity
Check
in Carton
List
8
4
2
Advertisement
Related Manuals for Arrow AT101
Summary of Contents for Arrow AT101
- Page 1 Owner's Manual & Assembly Instructions Universal Attic Kit Model No. AT101 IMPORTANT: Before you start, 65923 65103 remove Owner's Manual & Assembly #8-32 Hex Nut (48) #8-32x3/8” Bolt (48) Instructions from main carton of your storage building and locate Interior Keep this Owner's Manual for future reference.
- Page 2 Step 1 Position long attic channels as shown. Interlock channels and tele- scope them to proper dimension for your building. Align holes and fasten together using bolts and nuts. See Fig. 1. Make two complete assem- blies using correct interior width. LONG ATTIC CHANNEL 8226 FIGURE 1 8226...
- Page 3 Step 2 REAR Install two posts at the rear corner of building by removing the two fas- teners in the framework. Interlock the two posts and telescope them to the proper length between the upper and mid wall frames. Tabs on ends of 26 3/8"...
- Page 4 Step 3 Position long attic channel assem- blies at the desired height to the posts and fasten using two or three bolts and nuts on both sides. Repeat procedure on next posts, making sure channels are level by using the same set of holes on each post.
- Page 5 Step 4 Position short attic channels be- tween long channels as shown. De- pending on width of the wall panel on your building, follow one of three pro- cedures below, fastening channels with four bolts and nuts. 2 DIAGONAL PROCEDURES STRAIGHT PROCEDURE SHORT ATTIC CHANNEL 8227...
- Page 6 Horizontal Siding Buildings If you are installing the Attic Kit in a Horizontal Siding building, drilling of the siding with a 1/4" diameter drill will be necessary if building is already assembled. If there are no holes in the framework, drilling will be required.
- Page 7 IMPORTANT CAUTION NOTE The Universal Attic Storage Kit was designed to support weight equally spaced over the entire kit. The total weight of all shelving on the walls is a 250 lb. load limit. Caution should be kept in mind at all times as to the weight of the material being stored on this kit.
-
Page 8: Other Uses
Other Uses Kit can be attached through the sheet rock into studs or directly to studs using at least a #10 wood screw. • Garage – Add extra storage space up and out of the way with an attic kit hung from rafters or beams. •...
