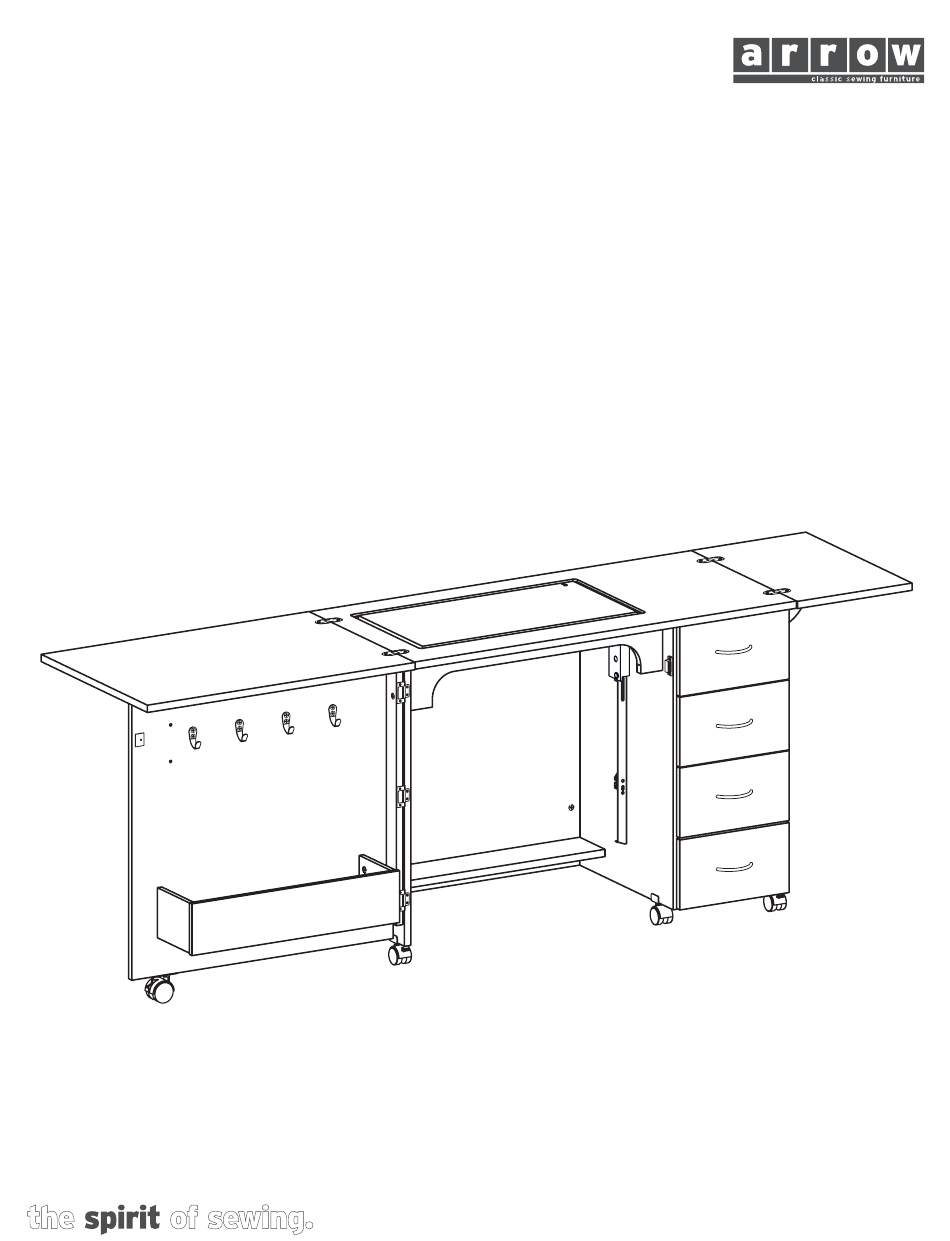

ASSEMBLY INSTRUCTIONS
Harriet
ITEM NO.: 305 Teak
311
Ash White

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harriet 305 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arrow Harriet 305

Summary of Contents for Arrow Harriet 305

  • Page 1 ASSEMBLY INSTRUCTIONS Harriet ITEM NO.: 305 Teak Ash White...

  • Page 2: General A Ssembly Guidelines

    Press cam into hole until flush with Insert bolt through pre-drilled Turn clockwise to lock cam with bolt. illustrated. surface. The arrow direction must hole in edge of panel. be in the direction of the hole. Tip: place a small bit of WD-40 or similar lubricant into the pre-installed cam bolt holes to help the cam bolts screw in better.
  • Page 3 Par ts List: Panels ITEM DESCRIPTION ITEM DESCRIPTION Leaf Support Wing 1 of 3 Door Bin Sides 2 of 3 Compartment Bottom 1 of 3 Door Bin Front 2 of 3 Shelf 1 of 3 Door Bin Bottom 2 of 3 Compartment Back 1 of 3 Back...

  • Page 4: Par Ts List: Hardware

    Par ts List: Hardware TIP: Keep all the parts in their individually labeled bags. This will make finding parts easier as you assemble your cabinet. Drawer Runners x8 12mm Cam Lock Large Cam Bolt 4x14 Screw #6x1” Flathead Screw #6x5/8” Door Magnet Gold Panhead Screws x2 Caster Bracket x1...
  • Page 5 Step 1: Cabinet Shell - Back and Left Panel 12mm Cam Lock x6 Long Cam Bolts 4x14 Screw Insert 4 Cam Locks into Panel G. Be sure that the arrow on the cam lock is pointing toward the edge of the panel (as shown at left). Lift Rail...
  • Page 6 Step 1: Cabinet Shell - Right Panel Drawer Runners x4 #6x1” Flathead Screws x16 12mm Cam Lock x2 Long Cam Bolts x4 Drawer Stoppers x4 Attach the following to Panel E: - 2 12mm Cam Locks - 4 Long Cam Bolts - 4 Drawer Runners with #6x1”...
  • Page 7 Step 1: Cabinet Shell - Par tition Panel Attach the following to Panel F (Side One): - 1 12mm Cam Lock - 4 Long Cam Bolts Drawer Runners x4 - 4 Drawer Runners with #6x1” Flathead Screws Door Magnet x1 #6x1”...
  • Page 8 Step 1: Cabinet Shell - Front, Shelf, and Drawer Compar tment Insert 4 12mm Cam Locks into Panel I. 12mm Cam Lock x16 Insert 4 12mm Cam Locks into Panel N. Insert 4 12mm Cam Locks into Panel J. Insert 4 12mm Cam Locks into Panel H. Harriet Assembly Instructions...
  • Page 9 Step 2: Cabinet Shell - A ssembly Lay Panel D on the floor as shown, and slide the Cam Bolts on Panel D into Cam Locks on Panel G as shown. Tighten the Cam Locks by turning 180° clockwise. Slide Cam Bolts on Panel D into Cam Locks on Panels I and N shown.
  • Page 10 Step 2: Cabinet Shell - A ssembly Carefully lower Panel F, sliding the Cam Bolts on Panel F into Cam Locks on Panels G, I and N as shown. Tighten the Cam Locks by turning 180° clockwise. Carefully lower Panels H and J, sliding the Cam Bolts on Panel F into Cam Locks on Panels H and J as shown.
  • Page 11 Step 2: Cabinet Shell - A ssembly Carefully lower Panel E, sliding the Cam Bolts on Panel E into Cam Locks on Panels H and J as shown. Tighten the Cam Locks by turning 180° clockwise. 180° Remember to tighten the Cam Locks! Flip the cabinet over so that it is upside down.
  • Page 12 Step 3: Cabinet Shell - Casters 1. Place the Caster Clip. 2. Insert Caster Insert. Use Caster Clip x5 a wooden block or other hard, flat item to protect the Caster Insert and pound into place with a hammer. Caster Insert x5 Locking Casters x2 Non-Locking Casters x3 NOTE: Casters must be...

  • Page 13: Step 4: Lift Installation

    Step 4: Lift Installation LIFT INSTALLATION WARNING: DO NOT remove the small wooden block from the Lift until assembly is complete. If the block is removed or falls out before lift assembly is complete, the cables will retract, making installation more difficult. If the block falls out before complete assembly, Please call Customer Service at 1-800-533-7347, ext.
  • Page 14 Step 4: Lift Installation Cable Lift rail Rail tabs Plastic guides on Lift Lift rail Guide Lift onto Lift Rails using plastic guides. Insert ends of cable into rail tabs; make sure the cable is hooked into the rail tabs on both sides. Cut the zip tie on the wooden block, but DO NOT remove the block yet.

  • Page 15: Step 5: Top Panel

    Step 5: Top Panel Long Cam Bolts Attach Cam Bolts to Panel A as shown. NOTE: Left and Right Leaves (Panels B and C) come pre-attached. Carefully lower Panel A, inserting Cam Bolts into Cam Locks on Panels D, F, and E. Tighten the Cam Locks by turning 180°...
  • Page 16 Step 6: Leaf Suppor t Attach Support Hinges to Leaf Support Panel L as shown, #7x5/8” Flathead using #7x5/8” Screw x8 Screws. Support Hinge x2 Self-Sticking Rubber Tab x1 Adhere the Self-Sticking Rubber Tab to Panel L so that it is off-center on the edge of the panel as shown above.
  • Page 17 Step 7: Door - Door Bin Attach 2 Short Cam Bolts into each Panel V piece. 10mm Cam Lock x14 Insert 4 10mm Cam Locks into each Panel V piece. Short Cam Bolt x9 Insert 6 10mm Cam Locks into Panel W. Attach 5 Short Cam Bolts into Panel U.
  • Page 18 Step 7: Door - Door Bin Attach bin sides (Panel V pieces) to Panel W. Tighten the Cam Locks by turning 180° clockwise. Attach Panel V/Panel W Assembly to Panel U. Tighten the Cam Locks by turning 180° clockwise. Remember to tighten the Cam Locks! Harriet Assembly Instructions...
  • Page 19 Step 7: Door Attach 4 Door Hooks using 4x14 Screws. Attach 3 Flush Hinges using 4x14 Screws. Door Hooks x4 50mm Non-Locking Caster 4x14 Screw #5x5/8” Flathead Screw Attach 4 Short Cam Bolts. Attach Magnet Strike Plate using #5x5/8” Screw. Flush Hinge x3 Short Cam Bolt Attach Caster Bracket to...
  • Page 20 Step 7: Door Handle x1 4x20 Fix Bolt x2 4x14 Screw Attach Handle to Door using 4x20 Fix Bolts as shown. Attach Hinges on Door to Panel D using 4x14 Screws as shown. Harriet Assembly Instructions...
  • Page 21 Step 8: Drawers 10mm Cam Lock x8 Wood Dowel x8 Short Cam Bolt x8 Attach 2 Short Cam Bolts to Panel P. Insert 1 10mm Cam Lock and 1 Wooden Dowel into Panels T and S. Slide the Cam Bolts on Panel P into the Cam Locks on Panels T and S.
  • Page 22 Step 8: Drawers #10x1-1/4” Handle x4 4x20 Fix Bolt x8 Flathead Screw Carefully slide Attach Panel drawer bottom R to Panels T Panel Q into and S using the grooves #10x1-1/4” on Panels T, S Screws. and P. Attach Handle using 4x20 Fix Bolts.
  • Page 23 Step 8: Drawers Slide drawers into the cabinet. As you install each drawer, swivel the drawer stop up as shown in the inset picture, and then back down so that it hooks over the side panel of the drawer. Harriet Assembly Instructions...

  • Page 24: Limited Warranty

    (detailed receipt), and photos of the product. Arrow will replace any defective part (at its sole option), excluding labor. Replacement parts will be warranted for only the remaining period of the original Warranty.
  • Page 25 COMPLETE YOUR SEWING STUDIO! Elevate your sewing experience with Arrow’s Best-Selling Accessories! Custom Sewing Inserts Sewing Chairs Enhance your sewing experience with a custom acrylic Arrow’s #1 Rated Height Adjustable Sewing Chair is sewing insert! Custom acrylic sewing inserts are...
