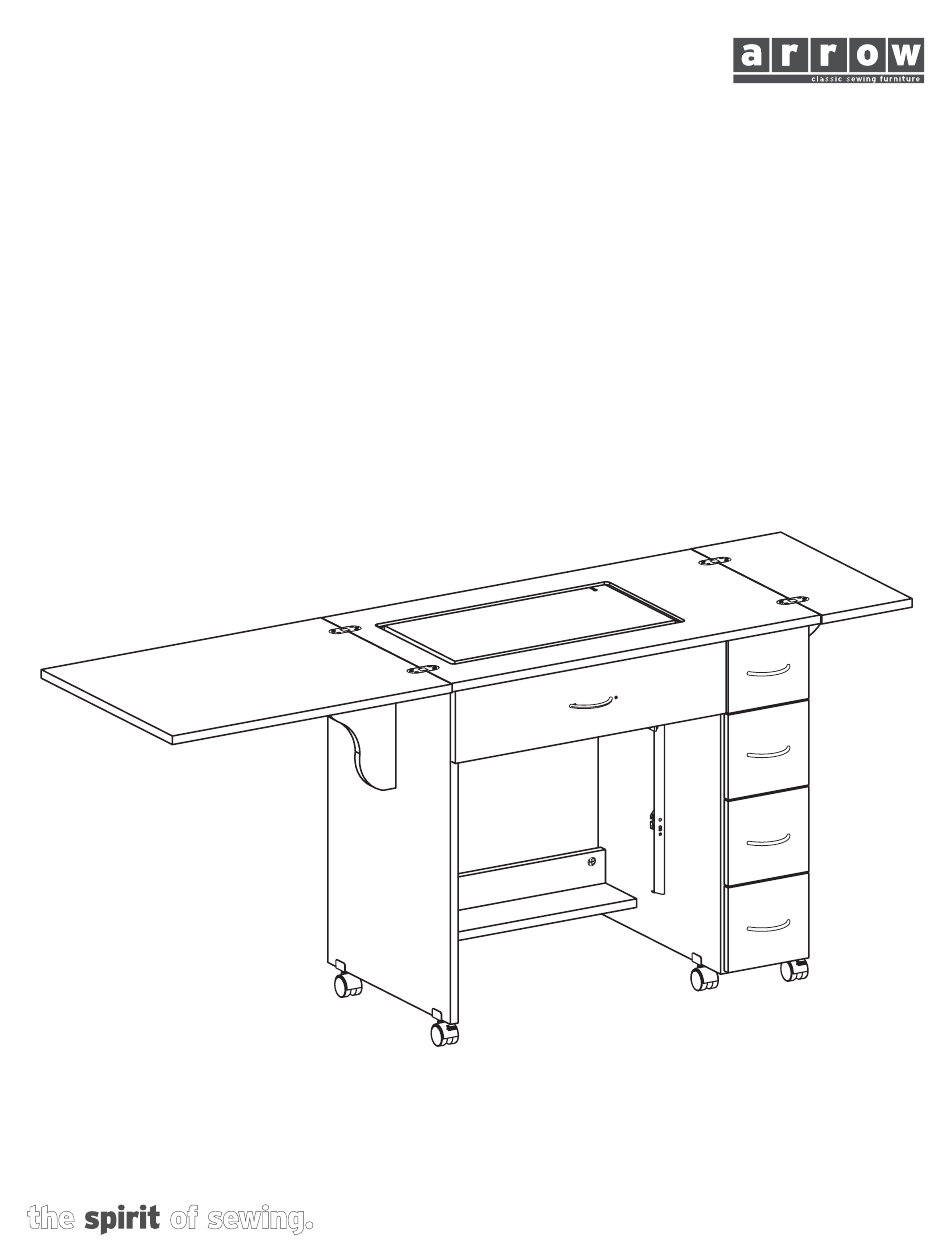

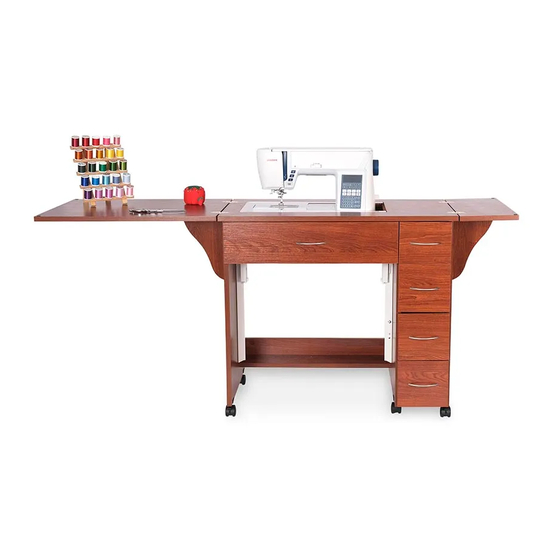

- Page 1 ASSEMBLY INSTRUCTIONS Alice ITEM NO.: 205 Teak 2 1 1 Ash White...
- Page 2 Press cam into hole until flush with Insert bolt through pre-drilled Turn clockwise to lock cam with bolt. illustrated. surface. The arrow direction must hole in edge of panel. be in the direction of the hole. Tip: place a small bit of WD-40 or similar lubricant into the pre-installed cam bolt holes to help the cam bolts screw in better.
- Page 3 Par ts List: Panels ITEM DESCRIPTION ITEM DESCRIPTION Hardware Box 1 of 2 Top* 2 of 2 Partition 1 of 2 Shelf 2 of 2 Right Side Panel 1 of 2 Left Side Panel 2 of 2 Front 1 of 2 Right Leaf Support 2 of 2 Front Brace...
-
Page 4: Table Of Contents
Par ts List: Hardware TIP: Keep all the parts in their individually labeled bags. This will make finding parts easier as you assemble your cabinet. Caster Clip x5 Large Cam Bolt 12mm Cam Lock Locking Casters x2 Non-Locking Casters x3 Caster Insert x5 Small Cam Bolt 10mm Cam Lock x8... -
Page 5: 12Mm Cam Lock
Insert 4 12mm Cam Locks and 2 Wood Dowels into into Panel O. Panel P. Insert 4 12mm Cam Locks into Panel D. Be sure that the arrow on the cam lock is pointing toward the edge of the panel! Alice Assembly Instructions... -
Page 6: 8X1-1/4" Screw (Black)
Step 1: Cabinet Shell - Front Wood Dowel x2 12mm Cam Lock #8x1-1/4” Screw (Black) Handle x1 Insert 2 12mm Cam Locks and 2 Wood Dowels into Panel Q. 4x19 Fix Bolt x2 Attach Panel K to Panel Q using #1x1/2” Screws. Affix the Handle to the Panel K/Q assembly with 4x19 Fix Bolts. - Page 7 Step 1: Cabinet Shell - Par tition Panel Drawer Runners x4 #6x1” Flathead Screws x16 Attach to Panel F (Side One): - 4 Long Cam Bolts - 4 Drawer Runners, using 12mm Cam Lock x1 #6x1” Flathead Side One Screws Long Cam Bolts x10 4x14 Screw Lift Rail...
- Page 8 Step 1: Cabinet Shell - Drawer Compar tment & Right Side Drawer Runners x4 #6x1” Flathead Screw Large Cam Bolt 12mm Cam Lock Insert 4 12mm Cam Locks each Drawer Stoppers into Panels M and N. 4x14 Screw Metal Dowels Attach the following to Panel H: - 2 12mm Cam Locks - 4 Long Cam Bolts...
- Page 9 Step 2: Cabinet Shell - A ssembly Lay Panel G on the floor as shown, and slide the Cam Bolts on Panel G into Cam Locks on Panels Q, O, P and D as shown. Tighten the Cam Locks by turning 180° clockwise. Carefully lower Panel F, sliding the Cam Bolts on Panel F into Cam Locks on Panels Q, O, P and D as shown.
- Page 10 Step 2: Cabinet Shell - A ssembly Carefully lower Panels M and N, sliding the Cam Bolts on Panel F into Cam Locks on Panels M and N as shown. Tighten the Cam Locks by turning 180° clockwise. Carefully lower Panel H, sliding the Cam Bolts on Panel H into Cam Locks on Panels M and N as shown.
-
Page 11: Caster Clip X5
Step 3: Cabinet Shell - Casters NOTE: Casters must be installed in this order: Caster Clip x5 Caster THIRD Caster Insert x5 Non-Locking Casters x3 Locking Casters x2 Flip the cabinet upside down. Caster Insert SECOND 1. Place the Caster Clip, Caster Clip aligning with pre-drilled holes. -
Page 12: Lift X1
Step 4: Lift Installation LIFT INSTALLATION WARNING: DO NOT remove the small wooden block from the Lift until assembly is complete. If the block is removed or falls out before lift assembly is complete, the cables will retract, making installation more difficult. If the block falls out before complete assembly, Please call Customer Service at 1-800-533-7347, ext. -
Page 13: Lift Rail
Step 4: Lift Installation Cable Lift rail Rail tabs Plastic guides on Lift Lift rail Guide Lift onto Lift Rails using plastic guides. Insert ends of cable into rail tabs; make sure the cable is hooked into the rail tabs on both sides. Cut the zip tie on the wooden block, but DO NOT remove the block yet. - Page 14 Step 5: Top Panel Large Cam Bolt Attach Large Cam Bolts to Panel C as shown. NOTE: Right and Left Leaves (Panels A and B) come pre-attached. Carefully lower Panel A/B/C, inserting Cam Bolts into Cam Locks on Panels G, F, and H. Tighten the Cam Locks by turning 180°...
- Page 15 Step 6: Leaf Suppor ts Self-Sticking #8x15/32” Screws x16 Rubber Tab x2 Support Hinge x4 Attach Support Hinges to Leaf Support Panels I and J as shown, using #8x15/32” Screws. Adhere the Self-Sticking Rubber Tabs so that they are off-center on the edge of the panel.
-
Page 16: (Right) X1
Step 8: Drawers Insert 1 Wood Dowel and 1 10mm Cam Lock into each drawer side (Panels W and Z). 10mm Cam Lock x8 Small Cam Bolt Wood Dowel x8 Attach 2 Small Cam Bolts to each drawer front, Panel R or S. Attach drawer sides (Panels W and Z) to drawer fronts (Panel R or S), carefully inserting Cam Bolts on drawer fronts into Cam Locks on drawer sides. - Page 17 Step 8: Drawers #10x1-1/4” Attach Panel T drawer backs to Panels W Flathead Screw and Z using #10x1-1/4” Screws. Handle x4 4x19 Fix Bolt x8 Attach Handles to drawer fronts using 4x19 Fix Bolts. Alice Assembly Instructions...
- Page 18 Step 8: Drawers Slide drawers into the cabinet. As you install each drawer, swivel the drawer stop as shown in the inset picture. Alice Assembly Instructions...
- Page 19 (detailed receipt), and photos of the product. Arrow will replace any defective part (at its sole option), excluding labor. Replacement parts will be warranted for only the remaining period of the original Warranty.
