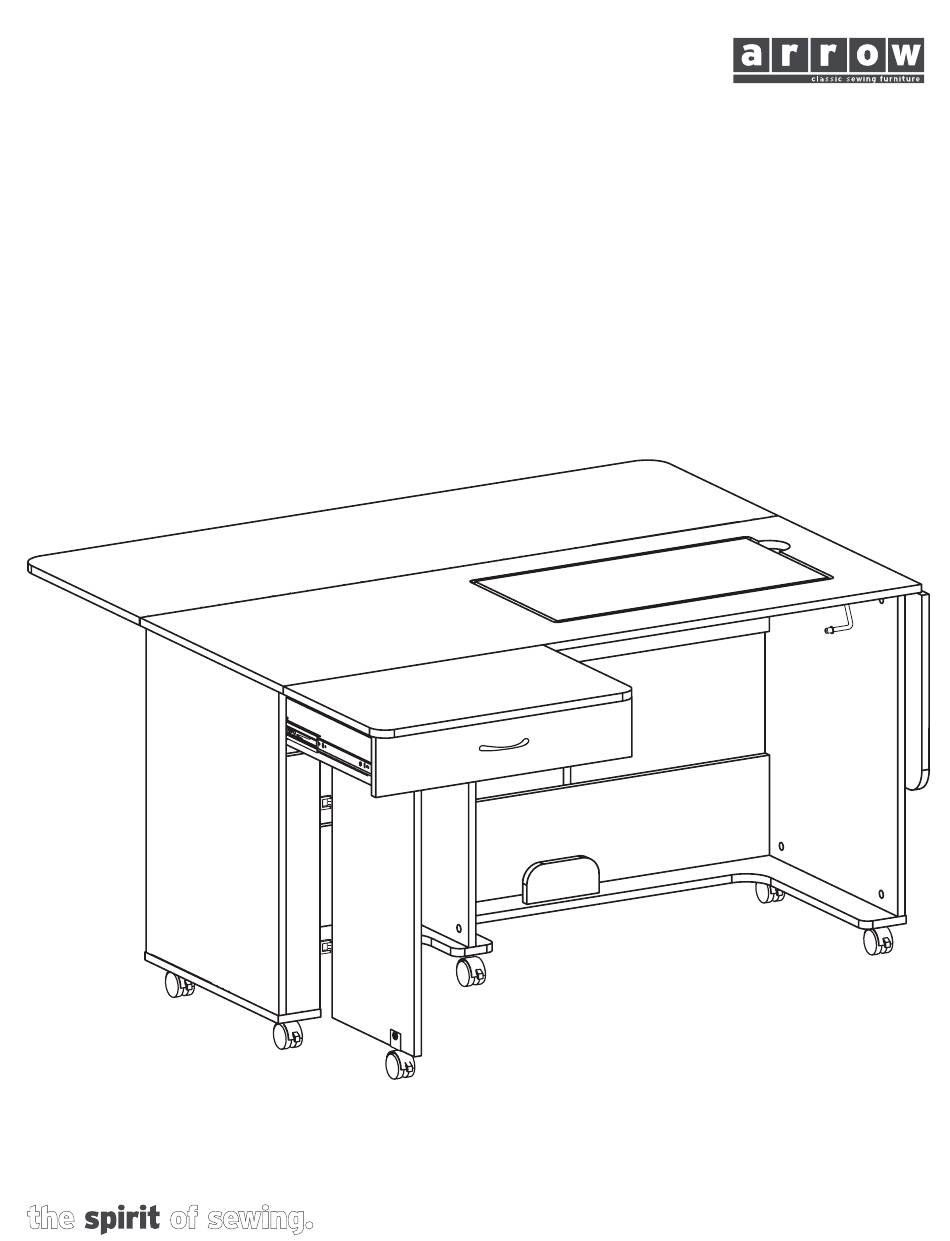

ASSEMBLY INSTRUCTIONS
Christa
ITEM NO.: 1401
White

Advertisement

Table of Contents
loading

Related Manuals for Arrow Christa 1401

Summary of Contents for Arrow Christa 1401

  • Page 1 ASSEMBLY INSTRUCTIONS Christa ITEM NO.: 1401 White...

  • Page 2: General A Ssembly Guidelines

    Insert bolt through pre-drilled Screw cam bolts flush as Turn clockwise to lock cam with bolt. illustrated. surface. The arrow direction must hole in edge of panel. be in the direction of the hole. Tip: place a small bit of WD-40 or similar lubricant into the pre-installed cam bolt holes to help the cam bolts screw in better.

  • Page 3: Item Description

    Par ts List: Panels ITEM ITEM DESCRIPTION QTY. PACK. DESCRIPTION QTY. PACK Center Panel 3 of 3 Top Panel 1 of 3 Right Side Panel 3 of 3 Quilt Leaf Panel 2 of 3 Drawer Support Gate Leg 3 of 3 In-Drawer Support Panel 3 of 3 Left Gate Leg...

  • Page 4: Par Ts List: Hardware

    Par ts List: Hardware TIP: Keep all the parts in their individually labeled bags. This will make finding parts easier as you assemble your cabinet. x108 3x14 Screw x8 3.5x14 Screw 8x30 Dowel Pin x40 ⁄ “ Cam Cover x51 6x35 Cam Bolt Alignment Pin x4 4x20 Fix Bolt x2...

  • Page 5: Part Description

    Manual Lift Par ts NOTE: No Assembly Required PART DESCRIPTION QTY. Bolt and Wing Nut Large Bracket Small Bracket Chain Hexagonal Bolt Christa Assembly Instructions...

  • Page 6: Step 1: Cabinet Shell

    Step 1: Cabinet Shell Plate Caster x5 3.5x14 Screw 6x35 Cam Bolt Attach t1 Plate Casters to the underside of Panel G using s1 Screws. Lock the casters and flip Panel G over. Attach c1 Cam Bolts to Panel G as shown. Christa Assembly Instructions...
  • Page 7 Step 1: Cabinet Shell 8x30 Dowel Pin x2 ⁄ “ Cam Cover x2 Insert d1 Dowel Pins into the bottom edge of Panel O. Attach Panel O to Panel G as shown, insert- ing cam bolts into cam locks.. Tighten cam locks and apply c2 Cam Covers. Christa Assembly Instructions...
  • Page 8 Step 1: Cabinet Shell 8x30 Dowel Pin x18 Insert d1 Dowel Pins into the edges of Panels D1 and D2 as shown. Insert dowel pins into the edge of Panel O4 as shown. Christa Assembly Instructions...
  • Page 9 Step 1: Cabinet Shell 6x35 Cam Bolt 8x30 Dowel Pin x4 ⁄ “ Cam Cover x3 Attach c1 Cam Bolts and d1 Dowel Pins to Panel X as shown. Attach Panel O4 to Panel X as shown , inserting cam bolts into cam locks..
  • Page 10 Step 1: Cabinet Shell 6x35 Cam Bolt 8x30 Dowel Pin x8 Attach 4 c1 Cam Bolts to Panel Z. Insert 4 d1 Dowel Pins into the edges of Panel Z. Attach 4 d1 Dowel Pins into the edges of Panel Y. Christa Assembly Instructions...
  • Page 11 Step 1: Cabinet Shell ⁄ “ Cam Cover x8 NOTE: The image below shows upside down construction of Panels X, D1/D2 and Z. This will make attaching the bottom of the cabinet easier in the next step. Attach Panels D1 and D2 to Panels X and Z as shown, making sure that dowel pins on Panel D1 point to the top of the cabinet and the dowel pins on Panel D2 point to the bottom of cabinet.
  • Page 12 Step 1: Cabinet Shell ⁄ “ Cam Cover x10 Attach Panel G to Panels Z, D2, X and O4, inserting cam bolts into cam locks. Tighten cam locks and apply c2 Cam Covers. Make sure the casters are locked and flip the cabinet up onto its wheels.
  • Page 13 Step 1: Cabinet Shell ⁄ “ Cam Cover x2 Gently lower Panel Y onto Panel G, inserting cam bolts into cam locks. Tighten cam locks and apply c2 Cam Covers. Christa Assembly Instructions...
  • Page 14 Step 1: Cabinet Shell 6x35 Cam Bolt ⁄ “ Cam Cover x10 Attach c1 Cam Bolts to the underside of Panel A. Gently lower Panel A onto Panels X, D1, Y and Z, inserting cam bolts into cam locks. Tighten cam locks and apply c2 Cam Covers. Christa Assembly Instructions...
  • Page 15 Step 2: Gate Legs and Suppor t Panels Screw s4 Alignment Pin into 3.5x14 Screw Alignment Pin x1 the top edge of Panel V. Hinge Body x2 Attach g1 Hinge Body to Panel V Attach t2 Caster to using s1 Screws. Panel V using b Bolt and Caster x1 Nut.
  • Page 16 Step 2: Gate Legs and Suppor t Panels 6x25 Bolt and nut x2 Alignment Pin x3 3.5x14 Screw Butt Hinge x6 Screw s4 alignment pins into top edges of Panels O1 and O2. Attach h2 Butt Hinges to Panels O1 and O2 as Caster x2 shown, using s1 Screws.
  • Page 17 Step 2: Gate Legs and Suppor t Panels 3.5x14 Screw Attach Panels O1 and O2 to Panels D1 and D2 using s1 Screws. Christa Assembly Instructions...
  • Page 18 Step 2: Gate Legs and Suppor t Panels 3.5x14 Screw Attach Panel O3 to Panel Z using s1 Screws. Christa Assembly Instructions...
  • Page 19 Step 3: Quilt Panels Butt Hinge x6 Magnet x3 3.5x14 Screw x18 3x14 Screw x6 Attach m Magnets to Panel A1 using s2 Screws as shown. Attach h2 Butt Hinges to Panel A1 using s1 Screws as shown. Attach m Magnet to Panel A4 using s2 Screws as shown.
  • Page 20 Step 3: Quilt Panels NOTE: The illustrations below show the cabinet from behind and underneath to better show hinge attachment placement. 3.5x14 Screw x18 Extend Gate Leg Panels O1 and O2. Balance Panel A1 on gate legs and attach h2 Hinges to Panel D using s1 Screws.
  • Page 21 Step 4: Drawer 6x35 Cam Bolt x10 8x30 Dowel Pin x8 Attach 4 c1 Cam Bolts to Panels L1 and L2 as shown. Insert 4 d1 Dowel Pins into the edges of Panels L1 and L2 as Insert 2 d1 Dowel Pins into the edge of Panel L3 as shown.
  • Page 22 Step 4: Drawer ⁄ “ Cam Cover x10 Attach Panel L3 to Panels L1 and L2 as shown, inserting cam bolts into cam locks. Tighten cam locks and apply c2 Cam Covers. Lower the Panel L1/L2/L3 assembly onto Panel L4, inserting cam bolts into cam locks.
  • Page 23 Step 4: Drawer 6x35 Cam Bolt x6 3.5x14 Screw x2 ⁄ “ Cam Cover x6 Magnet x1 Attach c1 Cam Bolts and m Magnet plate to Panel L as shown. Set aside the magnet for later use. Attach Panel L to Panels L1, L2 and L4 as shown, inserting cam bolts into cam locks.
  • Page 24 Step 4: Drawer Handle x1 4x20 Fix Bolt x2 Attach h Handle to Panel L as shown, using b2 Fix Bolts. Fully extend the cabinet rails, align drawer rails, and slide drawers into cabinet. Be sure that the silver ball bearing pieces are posi- tioned all the way to the front of the rails.
  • Page 25 Step 5: In-Drawer Suppor t Panel Threaded Dowel Pin x3 Magnet x1 3.5x14 Screw x2 Screw p Threaded Dowel Pins into Panel A3 as shown above. Using s2 Screws, attach m Magnet to Panel A3 as illustrated. Insert metal pegs on Panel A3 into the pre-installed sockets on the edge of Panel A.
  • Page 26 Completed Christa Sewing Cabinet Christa Assembly Instructions...

  • Page 27: Limited Warranty

    (detailed receipt), and photos of the product. Arrow will replace any defective part (at its sole option), excluding labor. Replacement parts will be warranted for only the remaining period of the original Warranty.
  • Page 28 COMPLETE YOUR SEWING STUDIO! Elevate your sewing experience with Arrow’s Best-Selling Accessories! Custom Sewing Inserts Sewing Chairs Enhance your sewing experience with a custom acrylic Arrow’s #1 Rated Height Adjustable Sewing Chair is sewing insert! Custom acrylic sewing inserts are...
