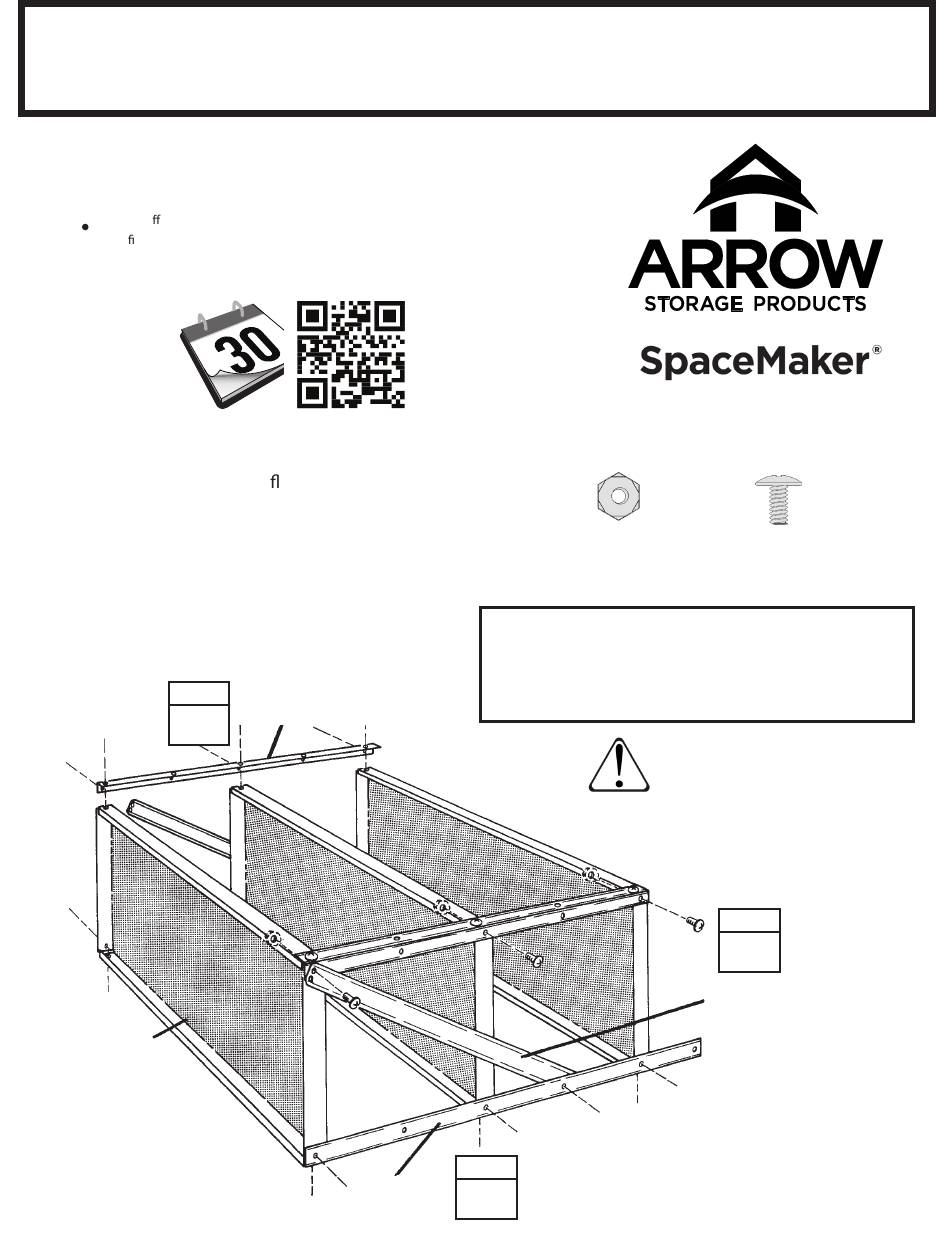

Owner's Manual & Assembly Instructios
GV01b
Wall Shelf Model No. SS900CL
Keep this Owner's Manual for future reference.
Wash o inked part numbers on coated shelves with soap and water.
If you nd a part is missing, include the model no. of your shelf and contact:
Register • Enregistrer • Regístrate
ShelterLogic.com
1
Place two rear posts on a at surface parallel to
each other. Position shelves at desired locations
and fasten with bolts and nuts.
2
Place front posts opposite the rear posts and
secure to shelves using bolts and nuts.
3
Fasten braces to the inside of rear posts and outside
of front posts with bolts and nuts.
STEP
2
SHELF
7053
/
product-registration
FRONT POST
7056
REAR POST
7057
65103
#8-32 Hex Nut
(26)
First remove and reinsert bolt and nut fastening
bottom shelf to side leg of front post. Fasten
opposite end of brace to rear post.
STEP
1
66013
#8-32x1/4" (6 mm) Bolt
(26)
NOTE
CAUTION: SOME PARTS HAVE SHARP EDGES.
CARE MUST BE TAKEN WHEN HANDLING THE
VARIOUS PIECES TO AVOID A MISHAP. WEAR
GLOVES WHEN HANDLING METAL PARTS.
STEP
3
BRACE
3903
727400721
