Summary of Contents for Arrow Millie 3311

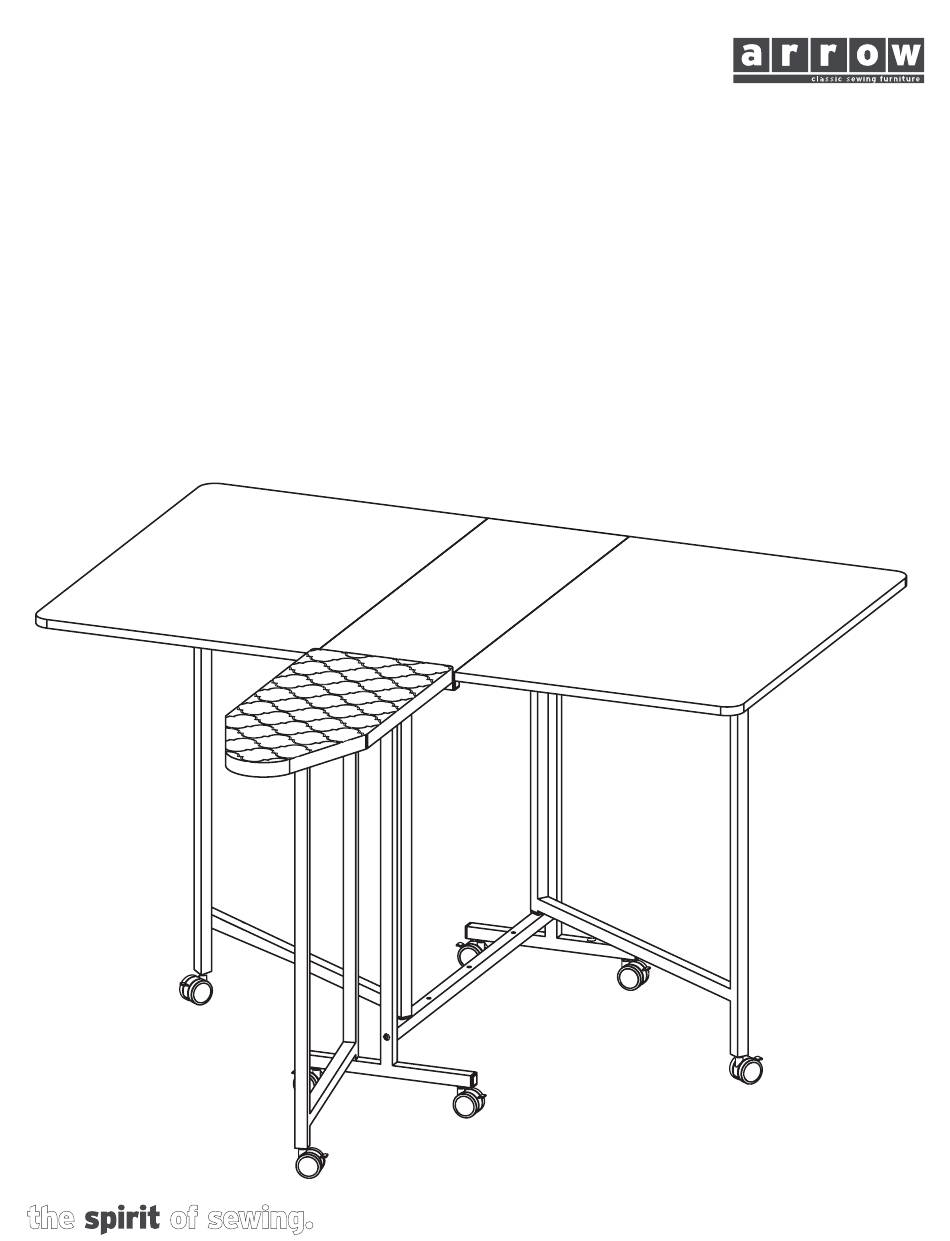

- Page 1 ASSEMBLY INSTRUCTIONS Millie Cutting Table ITEM NO.: 3311 White...
-
Page 2: Table Of Contents
General A ssembly Guidelines Read the instructions carefully before beginning the assembly process to ensure proper assembly of this product. Please open and inspect the contents of box(es) to see that all parts and hardware are included. 2. Tools Required: Phillips Screwdriver Electric Screwdriver Torque set to 3-5... - Page 3 Par ts List: Hardware ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. Top Panel Leaf Support Leg Ironing Board Support Leg Top Leaf Top Rail Ironing Board Left Support Leg Bottom Rail Right Support Leg Millie Assembly Instructions...
- Page 4 Par t 1: Base Congratulations and welcome to Arrow Sewing Furniture! We can’t wait to get your brand new Millile Cutting Table up and running. Please contact our Customer Service Team at 1-800-533-7347 ext. 1 during normal business hours with any assembly related questions.
- Page 5 Par t 1: Base 5mm Allen wrench x1 8x40 Bolt x4 Attach b3 Bolts to Leaf Support Leg L, tightening with r2 Allen Wrench as shown. Repeat with the other Leaf Support Leg. Millie Assembly Instructions...
- Page 6 Par t 1: Base Insert the b3 Bolt on the Leaf Support Leg L into the predrilled hole on the Bottom Rail R2 as shown. Millie Assembly Instructions...
- Page 7 Par t 1: Base 8x50 Bolt x2 5mm Allen wrench x1 Using b4 Bolts, attach R1 Top Rail to Support Legs X and Z, inserting b3 Bolts on L Leaf Support Legs into the predrilled holes on the underside of R1. Tighten b4 Bolts with r2 5mm Allen Wrench.
- Page 8 Par t 1: Base 8x50 Bolt x2 5mm Allen wrench x1 Plastic Cap x1 Attach Ironing Board Support Leg S to Left Support Leg X using b4 Bolts as shown. Tighten with r2 5mm Allen Wrench. Insert c Plastic Cap into hole on Right Support Leg Z.
- Page 9 Par t 2: Top 4x16 Screw x36 Attach Panels A1 and A using h1 Hinges and s1 Screws as shown. Hinge x6 Flip the Leg Assembly over so it is upside down. Millie Assembly Instructions...
-
Page 10: 6X32 Bolt X6
Par t 2: Top 4mm Allen wrench x1 6x32 Bolt x6 Using b2 Fix Bolts, attach the base of the table to Panel A as shown. Tighten with r1 4mm Allen Wrench. Millie Assembly Instructions... -
Page 11: S1 4X16 Screw X54
Par t 2: Top 4x16 Screw x6 Hinge x2 Using s1 Screws, attach h1 Hinges to Panel A. Millie Assembly Instructions... - Page 12 Par t 2: Top 4x16 Screw x6 Attach h1 Hinges on Panel A to Panel A2 using s1 Screws. Millie Assembly Instructions...
-
Page 13: Caster X7
Par t 2: Top 4x8 Bolt x3 Wrench x1 Caster x7 Bracket x3 Plastic Support Tube x3 Attach p Plastic Support Tube to b Connector using b3 Bolt as shown. Repeat with remaining Plastic Support Tubes and Connectors, three assemblies total. Attach t1 Casters to Parts S, L, X and Z as shown. - Page 14 Par t 2: Top 4x16 Screw x6 Begin by clicking the three Support Legs (two L Leaf Sup- port Legs and one S Ironing Board Support Leg) into p/b Plastic Support Tube Assemblies. The picture at right depicts the L Leaf Support Leg. The process is the same with the S Ironing Board Support Leg.
- Page 15 Completed Millie Cutting Table Make sure Casters are locked and flip the table over Fold Support Legs in as shown. onto its wheels. You will need someone to help you with this step. Millie Assembly Instructions...
- Page 16 (detailed receipt), and photos of the product. Arrow will replace any defective part (at its sole option), excluding labor. Replacement parts will be warranted for only the remaining period of the original Warranty.
- Page 17 COMPLETE YOUR SEWING STUDIO! Elevate your sewing experience with Arrow’s Best-Selling Accessories! Custom Sewing Inserts Sewing Chairs Enhance your sewing experience with a custom acrylic Arrow’s #1 Rated Height Adjustable Sewing Chair is sewing insert! Custom acrylic sewing inserts are...
