If Pool Cover Interlock is selected (if using an automatic pool cover):
This interlock makes it easy to assign specific pool settings when the cover is closed. Pump speed, heater temperature and chlorination
percentage can all be preset for periods when the pool cover sensor (external input) detects that the cover is closed. Some or all of these
options may not appear if you don't have a variable speed pump, heater or if not using chlorination. An alternative to this interlock is using
a Theme to Sensor interlock. Create a Theme using desired settings when the pool cover is closed, then interlock the Theme to the pool
cover sensor. A summary screen will be displayed after configuring this interlock. Read through the description and make sure the interlock
will function as desired.
Configuration Summary The OmniLogic displays all configured equipment in a table for you to view. Scroll through all configured devices and make sure
they've been properly assigned.
Finished with Configuration Now that all equipment has been configured, select the following:
Customizing / Add Components - use this selection to go back into Configuration and make changes.
Save and Restart - this selection will save your configuration settings and restart the OmniLogic.
Quick Edit Guide

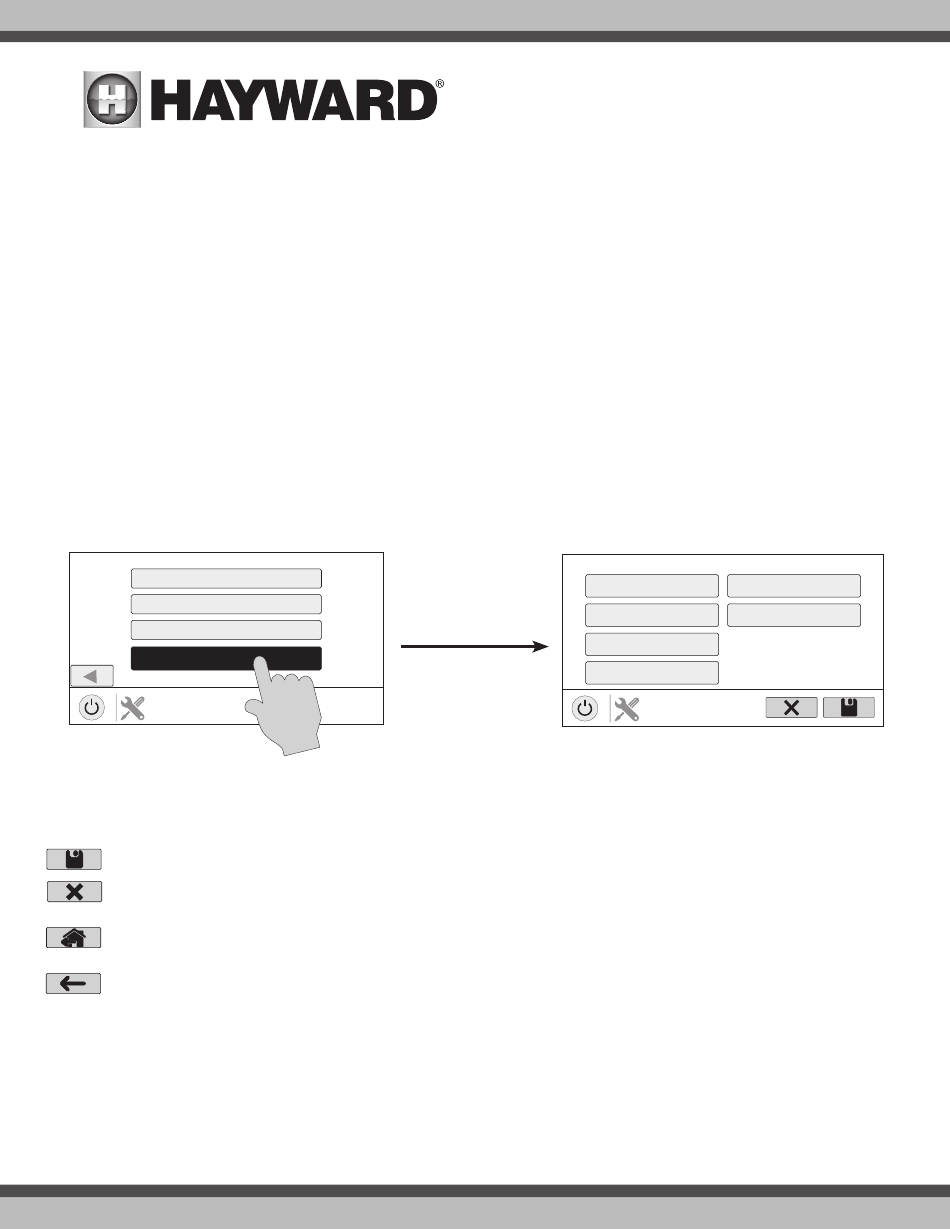

If additional pool or backyard equipment is added after initial configuration, or you'd like to make a change to an existing configuration setting, re-enter the
Configuration Wizard and select "Edit". After selecting "Edit", you will be brought to the Quick Edit Main Menu screen as shown below. Quick Edit allows you
to go directly to the equipment that you'd like to add/remove/configure. When you have finished editing the configuration, you will return to this screen to save
your changes.
Pre Programmed Config (VSP, Htr, Lt)
New Typical Configuration
New Advanced Configuration
Edit Current Configuration

QUICK EDIT

configuration
Navigation
There are a number of additional buttons that appear in Quick Edit that either have functions unique to Quick Edit or do not appear anywhere else in the system.
These buttons are as follows:
Save - Touch this button to save the configuration edit. This button only appears on the Quick Edit Home screen.
Cancel - Touch this button to cancel any changes made to the configuration and exit Quick Edit. This button only appears on the Quick Edit Home
Screen.
Home - Touch this button to quickly jump back to the Quick Edit Main Menu Screen to save your changes. This button appears at the end of every
configuration pathway.
Back - Touch this button to go back to the previous set of configurable items.
See page 23 for a full list of buttons that appear during configuration.
As you are using Quick Edit, you will notice that at the end of each pathway, a Home button and a back arrow will appear. If you are finished making changes,
press the Home button and then press the Save button to save your configuration. If you would like to make more changes to the same device, press the back
arrow. This will take you back to the last screen of configurable items for that device. If you would like to continue to make changes, but to a different device,
press the Home button and then follow the pathway to the new device. The following pages will explain each configuration pathway.
