Initial Configuration
When all input and pool related wiring is complete, replace and secure the deadfront. The OmniLogic can now be powered on for the first time. Apply power
at the main panel and wait for the OmniLogic to completely start. This may take a full minute or two. Because this is the first time that the OmniLogic has been

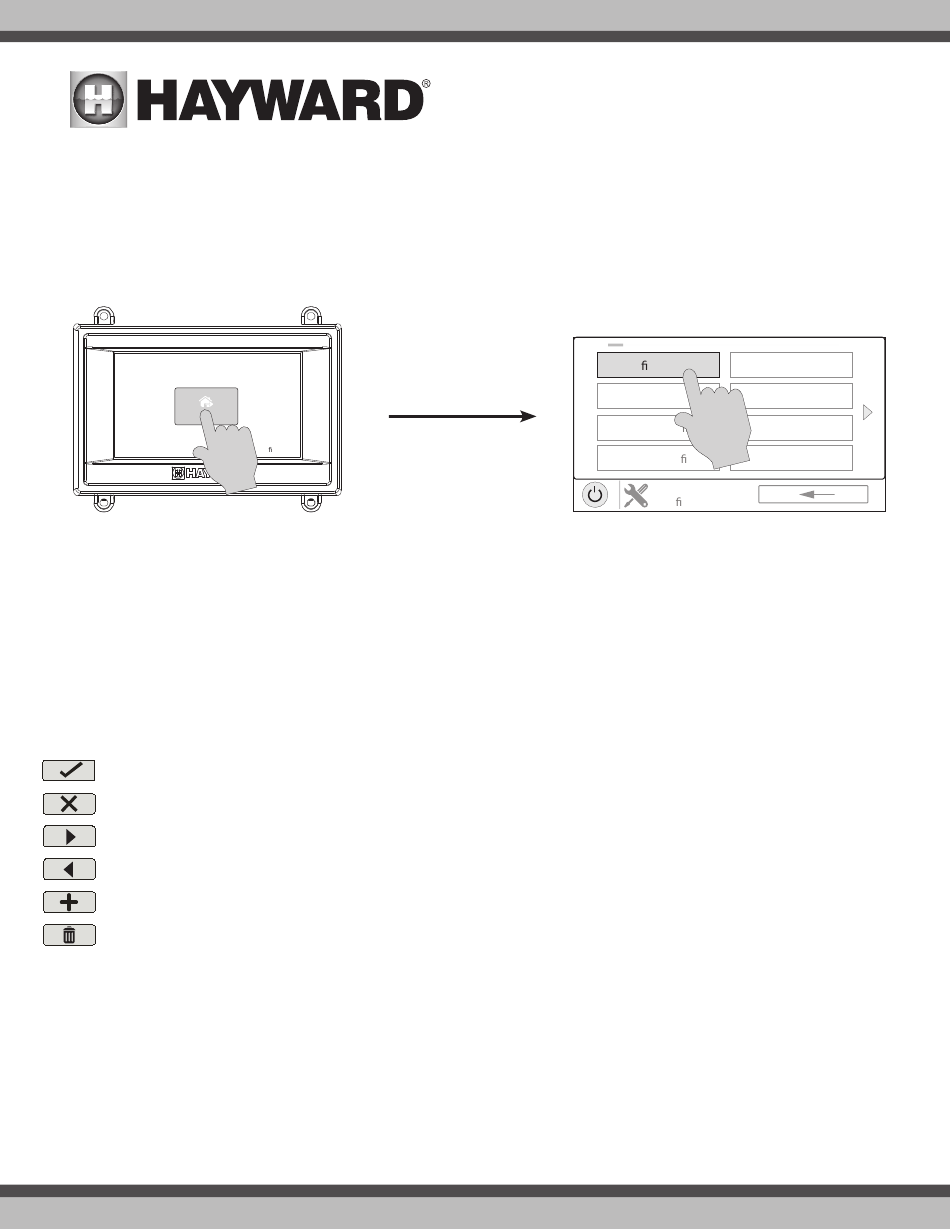

powered on, it will bring you directly to the initial configuration screen shown below. Note that the OmniLogic uses a resistive touchscreen that is appropriate
for a pool environment. It requires a deliberate push when selecting a button. At the initial configuration screen, touch the Configuration button in the center of
the screen. On the following screen, touch the Configuration Wizard button as shown below.

configuration

About the Configuration Wizard
The OmniLogic uses a Configuration Wizard to assist in the configuration of the OmniLogic. The Configuration Wizard will ask you general questions relating
to your pool/spa and specific questions about connected pool equipment. Because this process may take some time, do not begin to configure the OmniLogic
unless you can dedicate at least 15 minutes or more. Configuring the OmniLogic requires knowledge of all of the connected pool equipment so have the Con-
nection Table (page 12) handy while configuring the OmniLogic.
If you are asked a question and don't know the answer, in many cases you'll be able to skip the question and proceed. In some cases the Configuration Wizard
will require an answer. Answer the question to the best of your ability and take note as you'll be able to go back into the Configuration Wizard at a later time to
make changes.
Navigation
The Configuration Wizard has been designed to be intuitive allowing most users the ability to navigate with little instruction. Below, a list of commonly used
buttons are explained..
Done - Touch this button to complete your selection.
Cancel - Touch this button to cancel your selection.
Advance - Touch this button to advance to the next screen.
Back - Touch this button to return to the previous screen.
Add - Touch this button to add an item
Delete - Touch this button to delete a highlighted item.
After being prompted to make a selection or answer a question, touch the Done button (if available) and then the Advance button to go to the next screen. To
go back to a previous screen, touch the Back button. Many selections will require you to touch the Done button before allowing you to advance. If a wrong
selection has been made, touch the Delete button or Cancel. Some settings can be made by sliding a bar left or right to decrease or increase a value. You may
be required to assign names to equipment. In this case, a keyboard will be displayed and you'll be able to type the desired name. After naming the equipment,
save then advance. This method is repeated throughout the Configuration Wizard.
Configuration
No con g found
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
display
con g wizard
system info network
web server
backup con g
date/time
restore con g
SYSTEM
con guration
1 / 2
