AETEK H40-022-90-120 Quick Installation Manual

Model Description
H40-022-90-120 2xGbE 95W PoH PoE + 2xGbE SFP
H40-022-91-120 2xGbE 90W bt PoE + 2xGbE SFP
H40-042-30-075 4xGbE 30W PoE + 1xGbE RJ45 + 1xGbE SFP
H40-044-30-150 4xGbE 30W PoE + 2xGbE RJ45 + 2xGbE SFP
H40-044-90-250 4xGbE 95W PoH PoE + 2xGbE RJ45 + 2xGbE SFP
H40-044-91-250 4xGbE 90W bt PoE + 2xGbE RJ45 + 2xGbE SFP

PACKAGE CONTENTS

* 1x PoE switch
* 1x T25 L-wrench, 4x wall anchors

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of
electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz).
5. Although housing is IP67 rating , this is not suitable for water jets.
H40 / H42 Series

LED DEFINITIONS

Power Green ON
PW1/PW2
SFP port Green ON
Green
Grren Flashing Data is being transmitted / received.
LAN ports Green ON
Green
Grren Flashing Data is being transmitted or received.
PoE ports Amber ON
Amber
Amber OFF
RESET
Reset the switch 3 seconds
H80 Series
LED DEFINITIONS
RJ45 port Up Green / Amber Blinks when any traffic is present. The light is green when linking up 1Gbps.
RJ45 port Green / Amber Green is port enabled and supplying power to connected device.
Down
SFP Ports Green / Amber Blinks when any traffic is present. The light is green when linking up 10Gbps.
Power Green
System Green
Alarm Red
LED Color
Green
RM
Amber
(Ring Master)
-
Green
CPL
Amber
(Rapid Chain)
-

DEFAULTS

IP Address 192.168.1.1
Subnet Mask 255.255.255.0
User Name admin
Password admin
RESET & RESTORE
Reset the switch 2 ~ 7 seconds
Restore to defaults 7 ~ 12 seconds

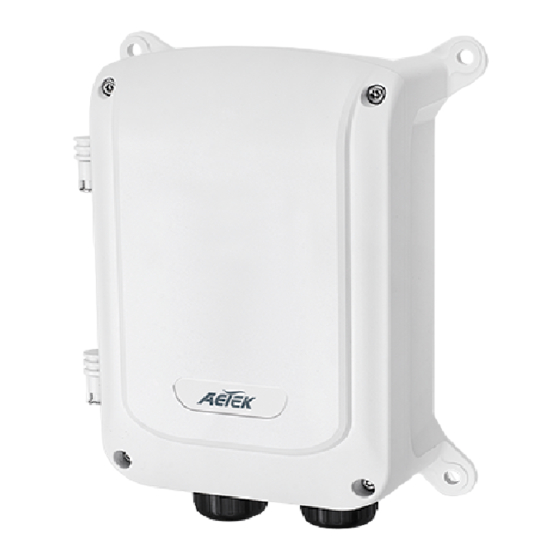

Outdoor Gigabit Ethernet PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
Power is on and normal.
Fiber is aeeached.
TX link is detected.
PSE is activated and PD is detected.
PoE OFF
Blinking Green
NOTE: Digital output (relay): 24VDC/1A. Digital input: level 0(Low) -> 0V to 6V, level 1(High) -> 10V to 24V.
The light is Amber when linking up 10/100Mbps.
Amber is An abnormal state, such as overload status.
The light is amber when linking up 1Gbps.
Powered on correctly is ON.
Switch ready is ON.
Abnormal state, such temperature,voltage, or DC power, has occurred is ON.
State Description
On Ring Master has been detected in the switch.
On Ring Member has been detected in the switch.
Off Disable
On Rapid Chain has been detected in the switch. (Active path)
On Rapid Chain has been detected in the switch. (Backup path)
Blinking Error: There is no correspondent Rapid Chain Switch found.
Off Disable
Console Port:
Baud rate 115200
Stop bits 1
Data bits 8
Parity
N
Flow contro none
Blinking Green
Blinking Green
Model Description
H40-082-30-250 8xGbE 30W PoE + 2xGbE SFP
4xGbE 30W PoE + 1xGbE(24VDC/56VDC) PoE
H42-042-30-075
+ 1xGbE SFP
H80-044-30-150 4xGbE 30W PoE + 2xGbE RJ45 + 2xGbE SFP
H80-044-60-250 4xGbE 60W PoE + 2xGbE RJ45 + 2xGbESFP
H80-084-30-250 8xGbE 30W PoE + 4xGbE SFP
* 1x Console cable (H80 only)
6.The cabinet must be grounded using a ground wire
between the ground screw and earth ground.
All LEDs off
All LEDs are OFF
All LEDs stay ON
P/N: A625012800G
DIP Switch
RM
CPL
RM: Ring Master
CPL: Rapid Chain
