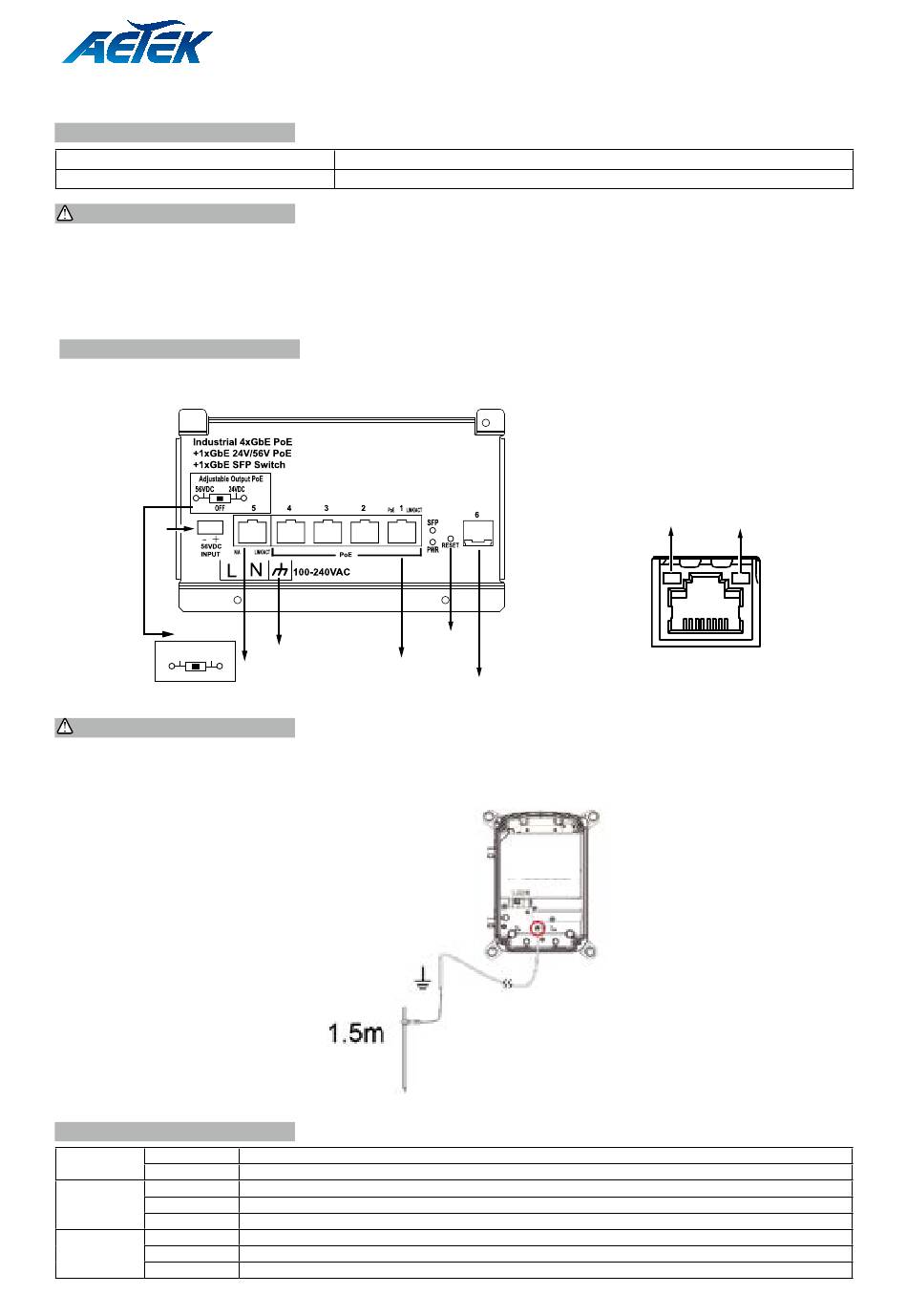

AETEK H42-042-30-075-V2 Quick Installation Manual

PACKAGE CONTENTS

* 1x PoE switch
* 1x T25 L-wrench

IMPORTANT:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz).
5. IP67 rated housing
6. Although housing is IP67 rating , this is not suitable for water jets.

CONNECTION

DC
Input
Port 5
Adjustable Output PoE
56VDC 24VDC
OFF
IMPORTANT:
The cabinet must be grounded using a ground wire between the ground screw and earth ground.

LED DEFINITIONS

Power Orange ON
Orange Off
Link/Act Green ON
Green Off
Green blinking
PoE Orange ON
Orange Off
Orange blinking
H42-042-30-075-V2
Quick Installation Guide
* 1x Quick Installation Guide
100~240VAC power input
Port 1~4
Port 5
GbE RJ45
GbE RJ45
PoE ports
24V/56VDC PoE port
Power is on and normal.
Power is off.
Ethernet port is connected.
No connection.
Data is being transmitted or received.
Port is linked to a powered device.
No device is connected.
Abnormal power supply is detected.

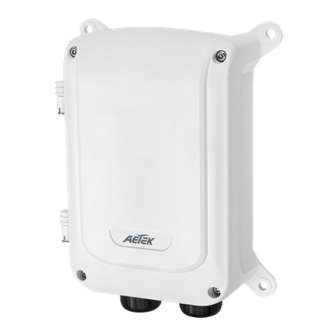

Outdoor PoE Switch
Reset button
GbE SFP ports
PoE LED Link/Act LED
