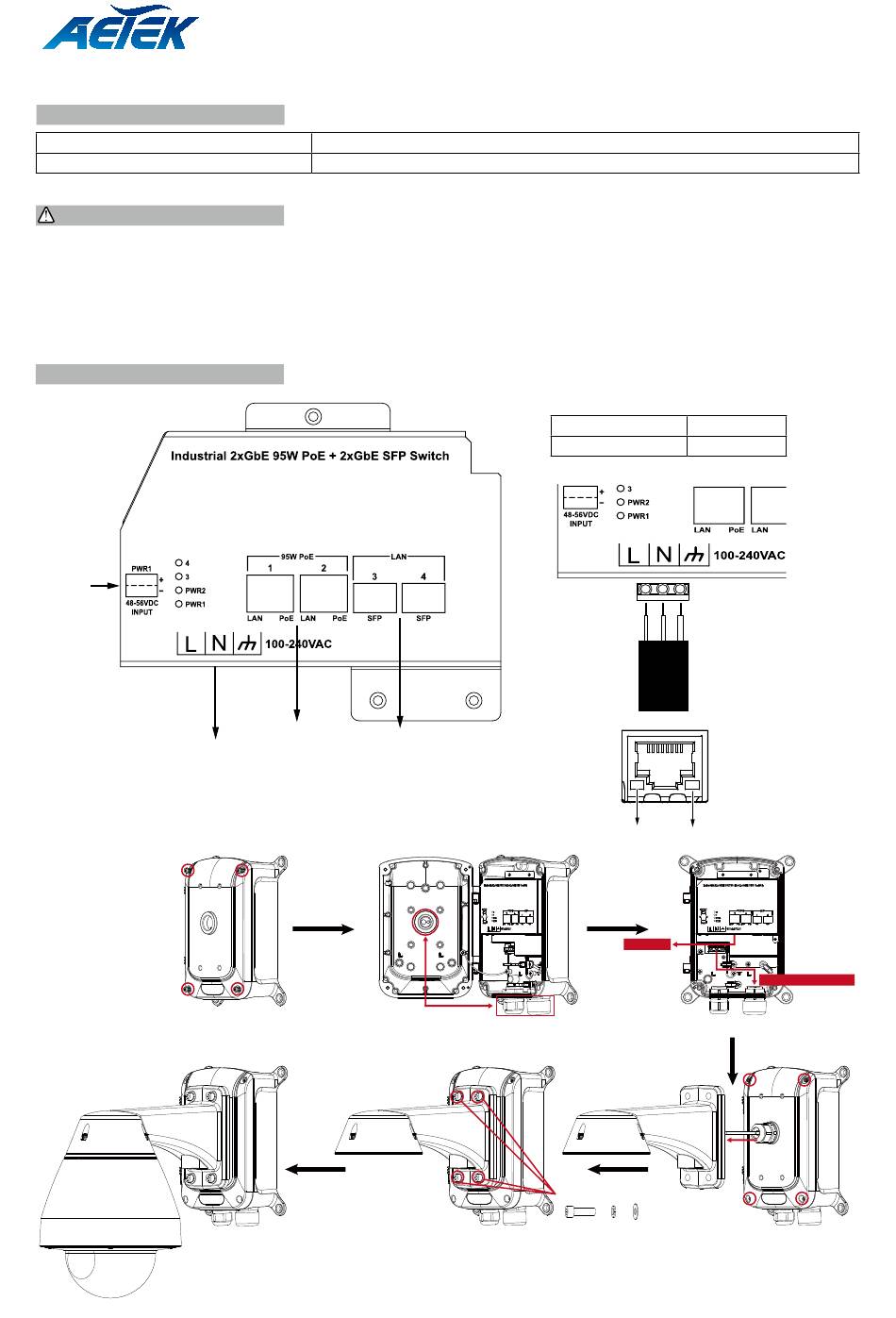

AETEK H40-022-90-120-A Quick Installation Manual

PACKAGE CONTENTS
* 1x PoE switch
* 1x T25 L-wrench
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60HZ)
5. IP67 rated housing
6. Although housing is IP67 rating , this is not suitable for water jets.
CONNECTION
DC
Input
100~240VAC
Power Input
1. Loosen the screws
6. Install dome camera
H40-022-90-120-A
Quick Installation Guide
* 1x Quick Installation Guide
GbE RJ45
GbE SFP Ports
PoE Ports
Outdoor PoE Switch
Wire Size
Wire Strip Length
2. Install the cable glands
(M8x27mm+Spring Washer
+Flat Washer screws) x4pcs
5. Fixed pendant wall mount
P/N: A625013200G
AC Power Cable Spec.
10~18AWG
8mm
8mm
AC Power Cable
Link/Act LED PoE LED
LAN Cable
3. Connect the cables
+ +
4. Tighten the screws
Power cord & Lan cable
