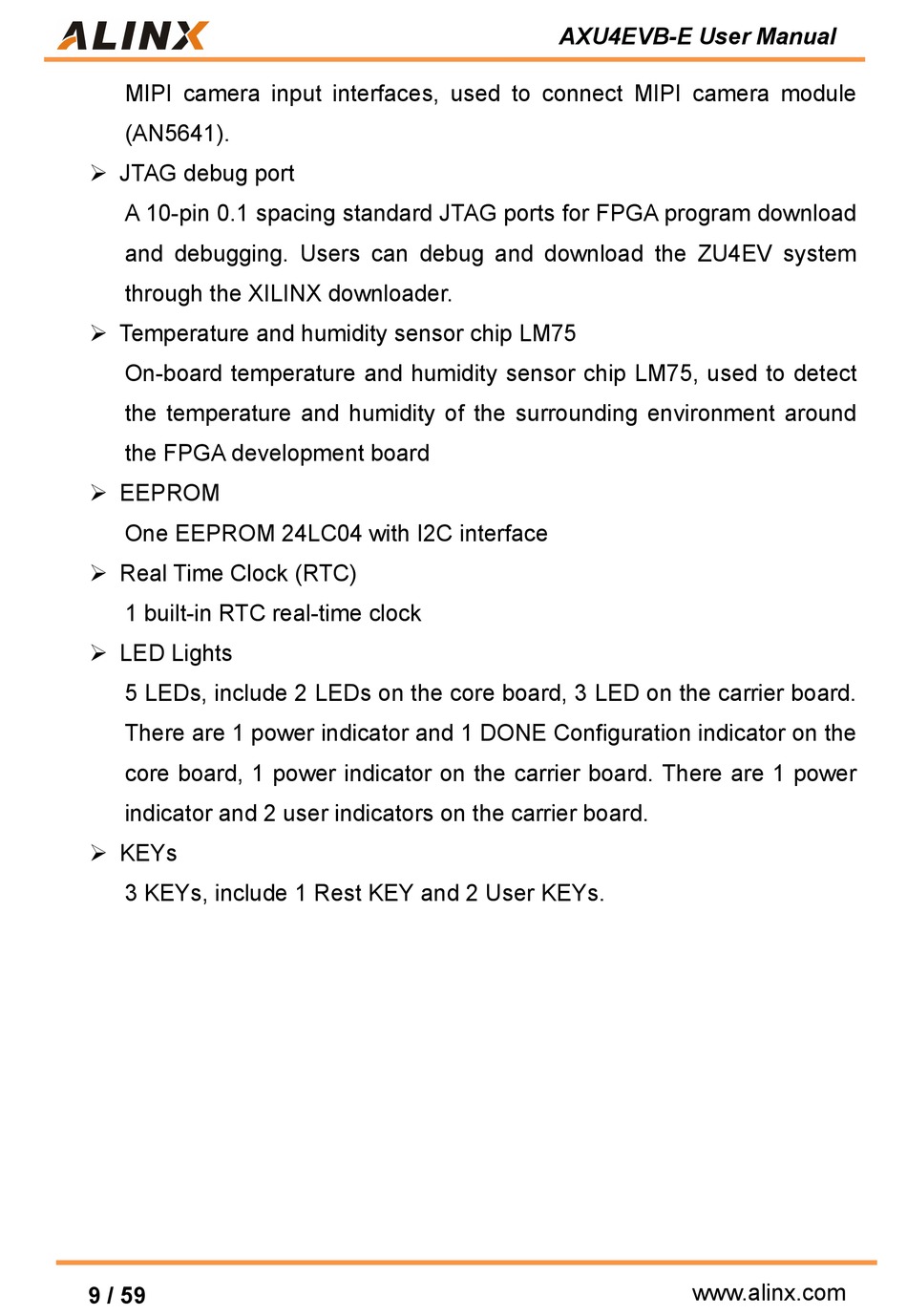

MIPI camera input interfaces, used to connect MIPI camera module
(AN5641).
 JTAG debug port
A 10-pin 0.1 spacing standard JTAG ports for FPGA program download
and debugging. Users can debug and download the ZU4EV system
through the XILINX downloader.
 Temperature and humidity sensor chip LM75
On-board temperature and humidity sensor chip LM75, used to detect
the temperature and humidity of the surrounding environment around
the FPGA development board
 EEPROM
One EEPROM 24LC04 with I2C interface
 Real Time Clock (RTC)
1 built-in RTC real-time clock
 LED Lights
5 LEDs, include 2 LEDs on the core board, 3 LED on the carrier board.
There are 1 power indicator and 1 DONE Configuration indicator on the
core board, 1 power indicator on the carrier board. There are 1 power
indicator and 2 user indicators on the carrier board.
 KEYs
3 KEYs, include 1 Rest KEY and 2 User KEYs.
