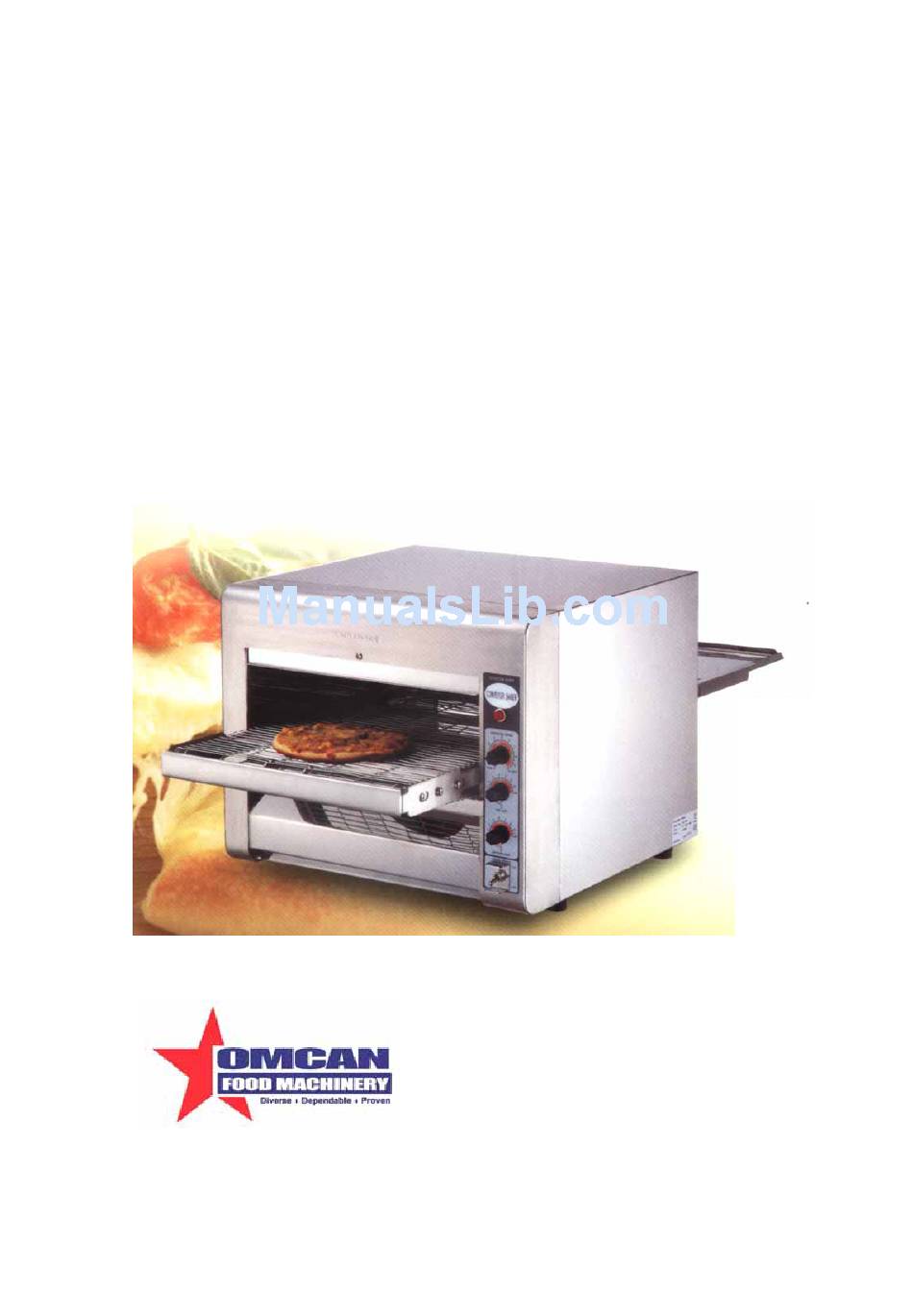

- Page 1 OPERATING INSTRUCTION WITH CLEANING & MAINTENANCE Model No.: TS-7000 Conveyor Pizza Oven...

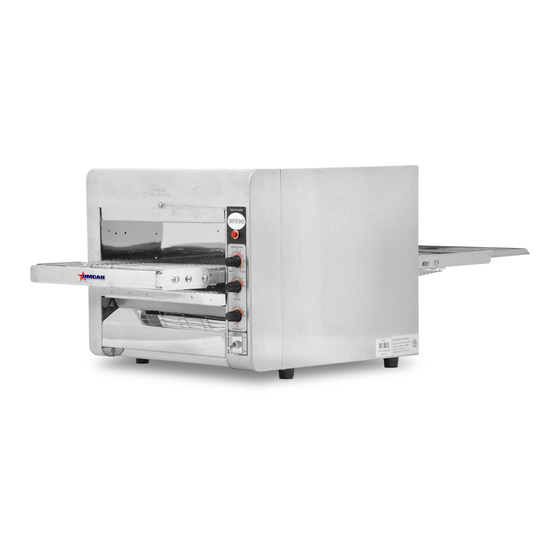

- Page 2 Conveyor Pizza Oven Model No.: TS-7000 Watts : 3600W Voltage : 240V 60Hz Dimension:105cm L x 47cm W x 39cm H Weight : 24 Kgs : 15.7Amp Pizzas up to 14" diameter. Product Entry and Exit openings adjustable from 1 1/2" to 3" high. Variable speed, S/S conveyor belt.
- Page 3 INSTRUCTION OF CLEAN MAINTENANCE FOR CONVEYOR BAKER TS-7000 ADJUSTABLE HEAT UNLOAD TRAY SHUTTER S/S CONVEYOR BELT NEON LIGHT CONVEYOR SPEED UPPER HEAT CONTROL LOWER HEAT CONTROL ON/OFF SWITCH CRUMB TRAY OPERATING AND SAFETY Disconnect power to the unit with the switch at the end of each day of operation.
- Page 4 WEEKLY 1. Turn main power saver switch to the OFF position. Disconnection unit from power source and allow to cool. 2. Perform daily cleaning procedures. 3. Using a damp cloth, wipe clean the fan guard located on the box cover under the unit. CLEAN CONVEYOR BELT 4.
- Page 5 6. Take this opportunity to clean and remove any loose materials inside the unit. Using a mild cleaner and damp cloth, carefully wipe the inside surfaces being sure NOT to clean the heater tubes. DAMAGE CAN OCCUR TO THE HEATER TUBES FROM IMPROPER CLEANING. DO NOT SPRAY CLEANING SOLUTIONS INTO OVEN CAVITY.
- Page 6 7. Reconnect power supply cord to fan motor. 8. Replace back panel and enclosure.ed, 9. Connect unit to power source, reinstall the crumb tray and test unit for proper operation. C. REPLACING BELT DRIVE MOTOR. 14” 1. DISCONNECT POWER SOURCE. 2.
