Omcan MS-IT-0313-H Instruction Manual

Gear-driven slicer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

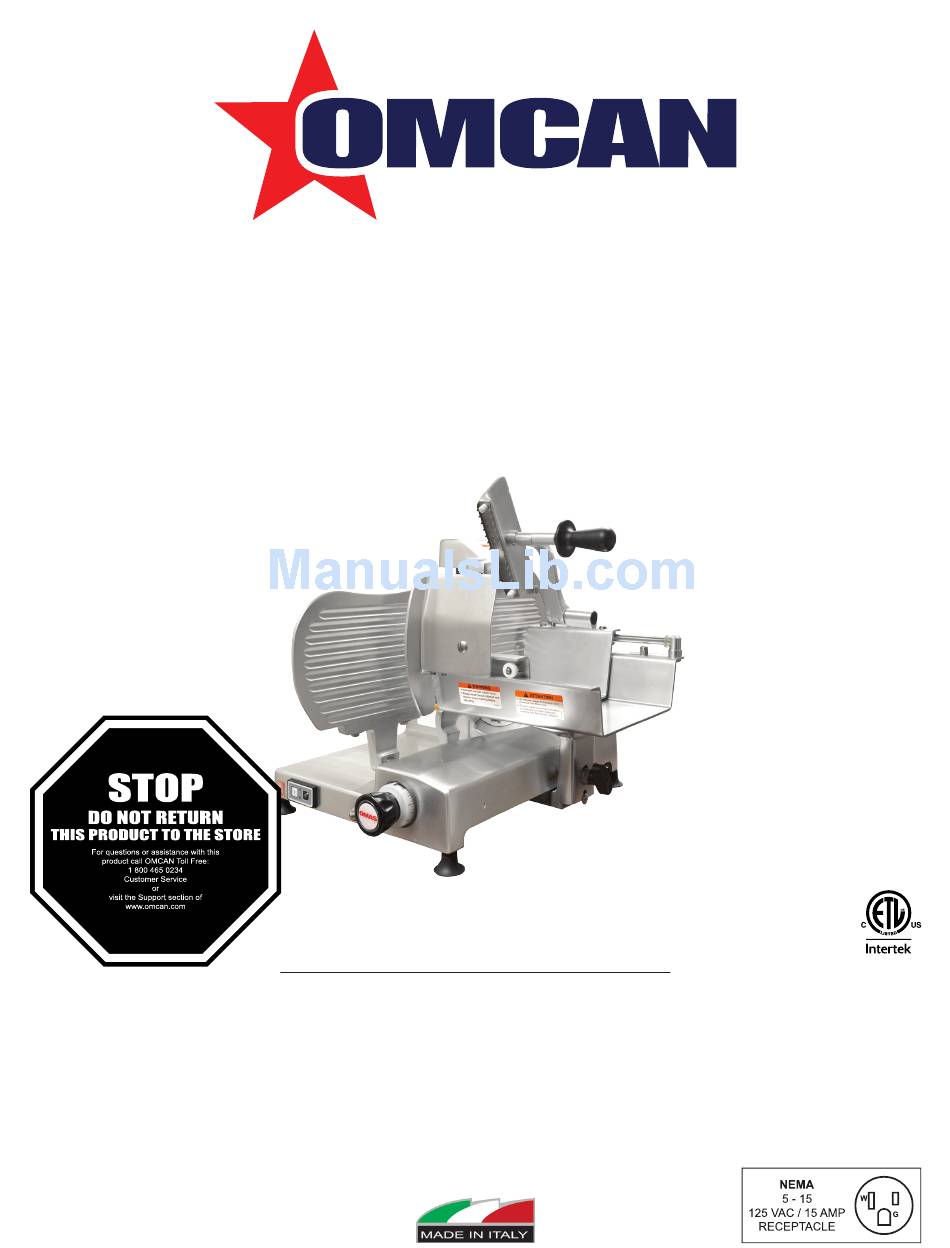

Gear-Driven Slicer
Model MS-IT-0313-H
Item 44006
Instruction Manual
Revised - 06/26/2017
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-IT-0313-H and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan MS-IT-0313-H

Summary of Contents for Omcan MS-IT-0313-H

  • Page 1 Gear-Driven Slicer Model MS-IT-0313-H Item 44006 Instruction Manual Revised - 06/26/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model MS-IT-0313-H Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation ---------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------- 8 - 11 Troubleshooting...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Do not remove the labels placed on the machine and replace them if damaged. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.

  • Page 6: Technical Specifications

    Technical Specifications Model MS-IT-0313-H Blade Size 12.3” / 313mm Power 0.4 HP / 0.3 kW Cheese Slicing Slicing Volume* 8 hours or more Cutting Size 10.6” x 8.9” / 270 x 225mm Cut Thickness 0” - 1” / 0 - 25mm...

  • Page 7: Installation

    Installation AUTOMATIC FUNCTIONING 1. See manual functioning. 2. Press push button carriage start. SLICER FUNCTIONING AND USE The following products can be sliced: sausages, ham, cheese, bread. If large quantities of bread or cheese are usually cut it is advisable to mount a teflon coating. WARNING The following cannot be sliced: •...

  • Page 8: Operation

    10mm less than the nominal diameter. For the replacement, ask the assistant service closest to you. WARNING The replacement of the blade is dangerous operation. Should the sharpening quality be not satisfactory, replace the stones by contacting Omcan. SHARPENING OPERATION DANGER The sharpening operation must be performed during the manual functioning.

  • Page 9: Maintenance

    Maintenance For a correct sharpening of the blade follow these instructions: 1. Clean the blade removing any greasy residue. 2. Make sure that the machine is off. 3. Rotate the slice thickness control to zero to make sure that the blade is covered by the slice thickness plate.
  • Page 10 Maintenance SPARE PARTS In the event that replacement parts need to be fitted, request only original spare parts. CLEANING The machine must be cleaned once a day or more frequently if necessary. Clean all the parts using a cloth sprinkled with water and washing up liquid (do not use strong detergents) and a brush. WARNING Do not use water jet DANGER...

  • Page 11: Troubleshooting

    Maintenance internal side of the protection ring. 9. After cleaning re-position the blade cover, insert the fastener and screw in a clockwise direction to clamp the blade cover. Lower the sharpener protective cover. IMPORTANT Leave all the parts to soak in warm water and washing-up liquid (do not use strong detergents) and clean them by using a brush or a cloth.

  • Page 12: Parts Breakdown

    Troubleshooting REFERENCE Item Number Model Number Description Manufacturer Model Number 44006 MS-IT-0313-H Meat Slicer with Fixed Ring Knife Guard H313 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 13 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 14 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 15 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 16 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 17 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 18 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 19 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 20 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 21 Parts Breakdown Model MS-IT-0313-H 44006...
  • Page 22 Parts Breakdown Model MS-IT-0313-H 44006 Item No. Description Position Item No. Description Position Item No. Description Position Bushing to Hold Carriage Springs for 77583 Sharpener (Support + Stones) for H313 A1024 36566 B6221 77612 Self-Locking Nut M3 UNI7473 for H313...
  • Page 23 Parts Breakdown Model MS-IT-0313-H 44006 Item No. Description Position Item No. Description Position Item No. Description Position 62422 Index Locknut M4 2 P1 for H313 G5063 19796 Plastic Shock for H313 P1031 62429 Pivot Sharpener for H313 P320561 36697 Logging Lock Nut for H313...
  • Page 24 Parts Breakdown Model MS-IT-0313-H 44006 Item No. Description Position Item No. Description Position Item No. Description Position Scheda Elettrica 400-50 C-H-(CE) for 77623 S3223 77628 Switch Overlay for H313 T1760 37067 Screw TE U5739 M5x20 for H313 V6423 H313 Screw TE U5739 M8x30 Stainless Steel 77624 P.C.

  • Page 25: Electrical Schematics

    Electrical Schematics Model MS-IT-0313-H 44006 Position Description Position Description Position Description Spina Capacitor 220uF Power Relay Transformer Capacitor 100uF Power Relay Fuse 500mA Capacitor 20uF Command Relay Straightener 1A Resistance 1k Command Relay Protective Diode Resistance 1k Stop Button LED Orange Line...

  • Page 26: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
