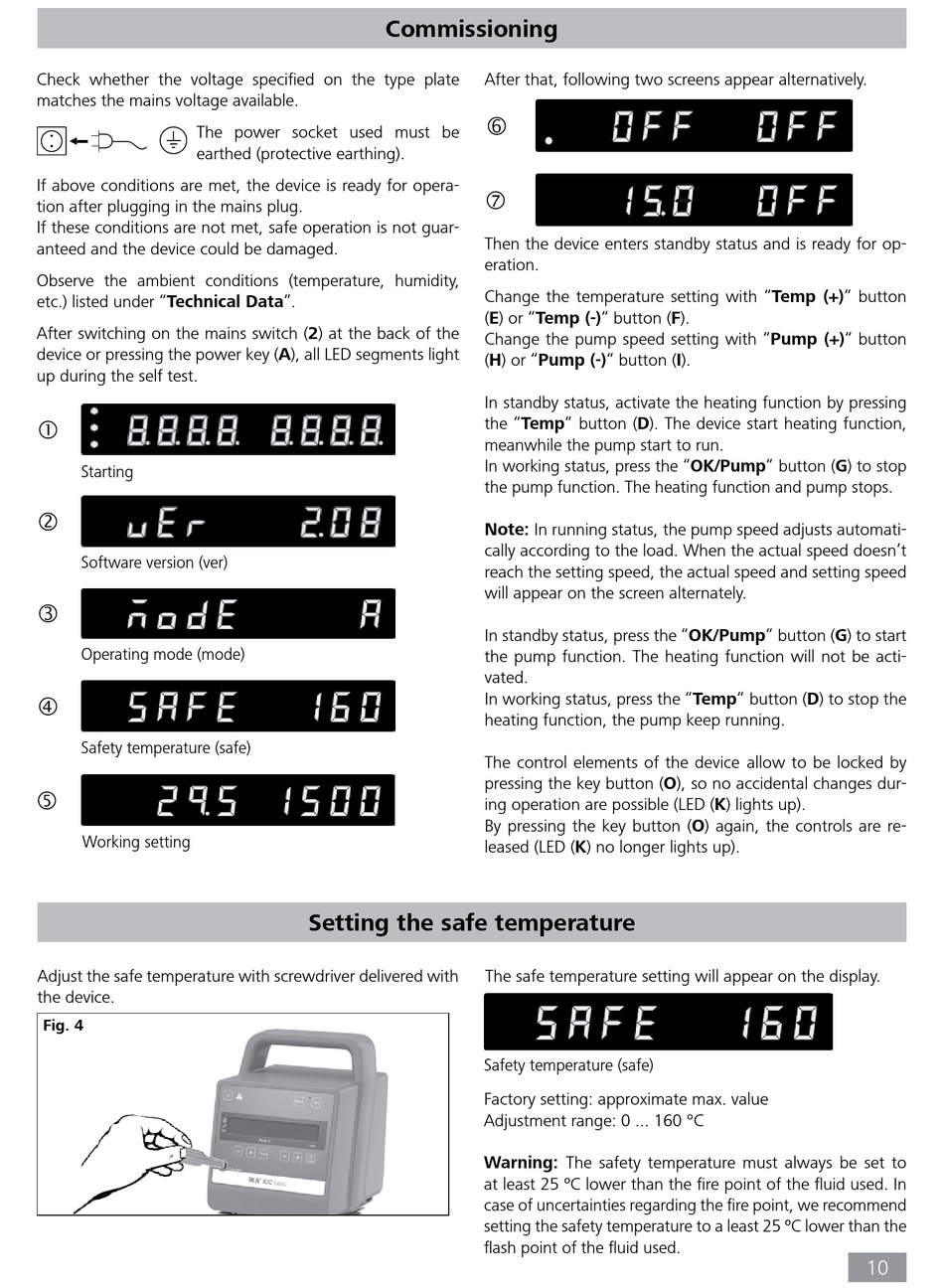

Commissioning; Setting The Safety Temperature - IKA ICC basic Operating Instructions Manual

Check whether the voltage specified on the type plate
matches the mains voltage available�
The power socket used must be
earthed (protective earthing)�
If above conditions are met, the device is ready for opera-
tion after plugging in the mains plug�
If these conditions are not met, safe operation is not guar-
anteed and the device could be damaged�
Observe the ambient conditions (temperature, humidity,
etc�) listed under "Technical Data"�
After switching on the mains switch (2) at the back of the
device or pressing the power key (A), all LED segments light
up during the self test�

Starting

Software version (ver)

Operating mode (mode)

Safety temperature (safe)

Working setting
Adjust the safe temperature with screwdriver delivered with
the device�
Fig. 4

Commissioning

After that, following two screens appear alternatively�


Then the device enters standby status and is ready for op-
eration�
Change the temperature setting with "Temp (+)" button
(E) or "Temp (-)" button (F)�
Change the pump speed setting with "Pump (+)" button
(H) or "Pump (-)" button (I)�
In standby status, activate the heating function by pressing
the "Temp" button (D)� The device start heating function,
meanwhile the pump start to run�
In working status, press the "OK/Pump" button (G) to stop
the pump function� The heating function and pump stops�
Note: In running status, the pump speed adjusts automati-
cally according to the load� When the actual speed doesn't
reach the setting speed, the actual speed and setting speed
will appear on the screen alternately�
In standby status, press the "OK/Pump" button (G) to start
the pump function� The heating function will not be acti-
vated�
In working status, press the "Temp" button (D) to stop the
heating function, the pump keep running�
The control elements of the device allow to be locked by
pressing the key button (O), so no accidental changes dur-
ing operation are possible (LED (K) lights up)�
By pressing the key button (O) again, the controls are re-
leased (LED (K) no longer lights up)�
Setting the safe temperature
The safe temperature setting will appear on the display�
Safety temperature (safe)
Factory setting: approximate max� value
Adjustment range: 0 ��� 160 °C
Warning: The safety temperature must always be set to
at least 25 ºC lower than the fire point of the fluid used� In
case of uncertainties regarding the fire point, we recommend
setting the safety temperature to a least 25 ºC lower than the
flash point of the fluid used�
