O P E R AT I N G I N S T R U C T I O N S

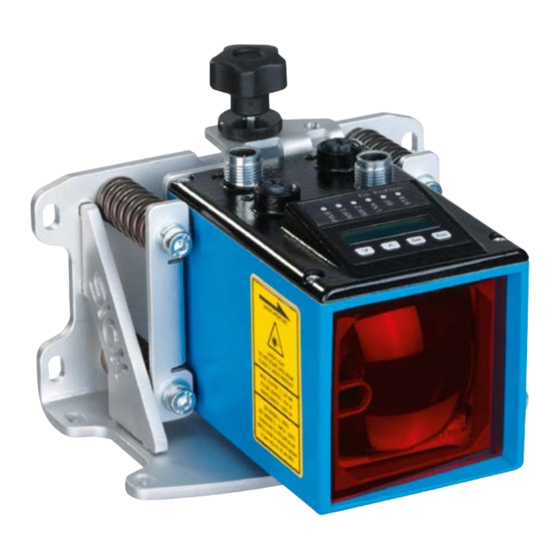

DL100 – SSI
Distance measuring device
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL100-SSI and is the answer not in the manual?

Questions and answers

Related Manuals for SICK DL100-SSI

Summary of Contents for SICK DL100-SSI

  • Page 1 O P E R AT I N G I N S T R U C T I O N S DL100 – SSI Distance measuring device...
  • Page 2 Changes and abbreviations of this work are prohibited without the express written agreement of SICK AG. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 3: Table Of Contents

    Transport inspection ............... 21 Storage ..................22 Mounting ..................23 Mounting process ..............23 Mounting notes ............... 23 6.3 Choose and mount reflector ..........24 Placement of multiple distance measuring devices .... 25 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 4 8.5.12 Menu "MF2" ............50 8.5.13 Menu "Offset" ............51 8.5.14 Menu "SpecFu" ............52 Perform reset ................53 Operation via Ethernet (Ethernet interface) ........54 9.1 IP-network configuration ............54 © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 5 Ambient conditions ..............77 14.10 Constructive setup ..............78 Accessories ..................79 15.1 Reflectors and reflective tape ..........79 15.1.1 Reflectors ..............79 15.1.2 Reflective tape ............81 15.2 Connection systems ............... 82 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 6 Table of contents 15.2.1 Cable sockets, straight, with cables ...... 82 15.2.2 Cable ................ 83 15.3 Mounting systems..............84 15.4 Other accessories ..............85 Menu structure................. 86 Index ......................88 © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 7: Important Safety Notes

    → Voir « www.sick.com/Dx100 ». ATTENTION! Tout usage de commandes, réglages ou toute application de procédures autres que ceux décrits dans ce document peut entraîner une exposition dangereuse au rayonnement. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 8: General

    General Information on the operating instructions These operating instructions offer important notes on handling of the distance measuring devices DL100 of SICK AG. A prerequisite for safe work is compliance with all indicated safety notes and instructions. Furthermore, the local work safety regulations and general safety provisions applicable for the application of the distance measuring device must be complied with.

  • Page 9: Explanation Of Symbols

    … indicates a potentially harmful situation that may lead to property damage if not avoided. Advice and recommendations NOTE! … emphasizes useful advice and recommendations, as well as information for efficient and trouble-free operation. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 10: Limitations Of Liability

    Our customer service is available for technical information. You can find your local office on the reverse. NOTE! For quick processing of the call, keep the data of the type label, such as type code, serial number, etc. ready. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 11: Ec Declaration Of Conformity

    Therefore: • Always observe the applicable environmental protection provisions. • Upon proper disassembly, send the disassembled components to recycling. • Separate the materials by type and recycle them. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 12: Safety

    The distance measurement is performed by a reflector. SICK AG assumes no liability for direct or indirect loss or damage resulting from use of the product. This in particular applies for any differing use of the product that does not meet the intended purpose and that is not described or mentioned in this documentation.

  • Page 13: Requirements To Skilled Persons And Operating Staff

    Work safety and special danger Observe the safety notes listed here and the warnings in the other chapters of these instructions to reduce dangers to health and avoid dangerous situations. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 14: Warning At The Device

    CW-MODULATION ± 0.85 P WAVELENGTH = 655nm FREQUENCY ≥ 90 MHz Fig. 1: Warning at the device: Laser category 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014) Identical laser class for issue EN/IEC 60825-1:2007 © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 15: Danger Notes And Operational Safety

    Be particularly careful during mounting and alignment work. • Do not open the housing. Opening the housing will not switch off the laser. Opening the housing may increase the level of risk. • Current national regulations regarding laser protection must be observed. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 16: Identification

    Device number Icon: Distance sensor reflector mode Assignment for female connector Ethernet MAC address Serial number Assignment for supply voltage plug and SSI Barcode 10 Production year and month © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 17: Setup And Function

    Device zero point Optical axis sender Optical axis receiver Bore for knurled screw of the optional alignment bracket Holder for optional alignment bracket Electrical connection Display and operating unit 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 18: Function

    For measurement, either the reflector or the measuring device may move linearly along the laser beam. The measured distance is transferred via the "SSI" interface and may be used, e.g. for the control unit or a position-control circuit. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 19: Display And Operating Elements

    • LED on: Output high • LED off: Output low Ethernet • LED off: No Ethernet present • LED green: Ethernet present • LED orange flashing: Data transmission Interface (SSI) • LED on: SSI-cycle present • LED off: No SSI cycle present Table 1: LEDs 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 20: Display

    Fig. 6: Measured value display Menu display Menue Menue Fig. 7: Menu display NOTE! is a value or display that has more than six characters, the characters are automatically displayed in sequence. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 21: Transport And Storage

    • Initiate complaints. NOTE! Report every defect as soon as you recognize it. Damages claims can only be asserted within the applicable complaint periods. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 22: Storage

    • Storage temperature: –40 to +75 °C • Relative humidity: max. 95 %, non-condensing • At storage exceeding 3 months, regularly inspect the general condition of all components and the packaging. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 23: Mounting

    • To avoid condensation, do not expose the distance measuring device to any quick temperature changes. • Observe the assembly notes for the reflector. → See page 23, chapter 6.2. • Keep sufficient distance to other distance measuring devices. → See page 25, chapter 6.4. • Keep sufficient distance to data transmission photoelectric switches. → See page 27, chapter 6.5. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 24: Choose And Mount Reflector

    X- or Y-direction ca. 1° … 3° Fig. 8: Installing the reflector on highly reflective surfaces Highly reflective surface Distance measuring device Reflector Inclination of approx. 1° to 3° © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 25: Placement Of Multiple Distance Measuring Devices

    Light beams in the same direction Fig. 9: Placement of two distance measuring devices with light beams in the same light direction. Distance measuring device DL100 Reflector Minimum distance Maximum scanning range 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 26 Mounting Light beams in the opposite direction Fig. 10: Placement of two distance measuring devices with light beams in the opposite direction. Distance measuring device DL100 Reflector Minimum distance © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 27: Place The Distance Measuring Device Towards The Adjacent Data Transmission Photoelectric Switch

    Fig. 11: Placement of the distance measuring device to the data transmission photoelectric switch ISD Distance measuring device DL100 Reflector Data transmission photoelectric switch ISD300, ISD400-1xxx or ISD400-6xxx Minimum distance 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 28: Align Distance Measuring Device And Reflector Against Each Other

    1) For distance measuring devices with a measurement range of 0.15 ... 200 m or 0.15 ... 300 m 2) For distance measuring devices with a measurement range of 0.15 ... 300 m Table 4: Damping values © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 29: Mount Alignment Bracket And Distance Measuring Device

    Fig. 12: Mount alignment bracket Mounting screw M5 Alignment bracket 2. Turn out knurled screw from the alignment bracket. 3. Move distance measuring device into the alignment bracket. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 30 Fig. 13: Mount distance measuring device Knurled screw Alignment bracket Distance measuring device 4. Attach distance measuring device via the knurled screw. Fig. 14: Attach distance measuring device with the knurled screw Knurled screw © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 31: Distance Measuring Device Above Alignment Bracket

    Set screw to align the distance measuring device in X-direction. Alignment in Y-direction Fig. 16: Align distance measuring device in Y-direction using the alignment bracket. Set screw to align the distance measuring device in Y-direction. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 32: Electrical Connection

    Wiring notes ATTENTION! Fault from improper wiring! Improper wiring may cause malfunctions in operation. Therefore: • Only use shielded cables with twisted pair wires. • Observe wiring notes. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 33 • Potential balancing currents through the cable shield must be prevented by suitable measures. • Do not install the cable in parallel to the other lines, in particular not devices with a high electromagnetic interference, such as frequency converters. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 34 Cables that are sources of interference, such as control cables for inductive loads, motor brakes Cables that are strong sources of interference, such as frequency converter output cables, supply to welding plants; power cables © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 35 Operating instructions Distance measuring device DL100 – SSI Electrical connection Fig. 20: Briefly connect shield with a large area. Earth both sides. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 36: Electrically Connect Distance Measuring Device

    • Connection 1 "Pwr/SSI" • Connection 2 "Ethernet" Fig. 21: Position of the electrical connections Plug 1: Supply voltage, data transmission SSI Plug 2: Ethernet Not assigned Not assigned © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 37: Connection Diagrams

    Cycle signal, not inverted Tx–/Data– grey Data signal, inverted Tx+/Data+ pink Data signal, not inverted blue Supply voltage: 0 V Multifunction output MF2 B-type Table 5: Description supply voltage plug and SSI 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 38: Connection Diagram Ethernet

    Send data signal, not inverted white/green Receive data signal, not inverted Tx– orange Send data signal, inverted Rx– green Receive data signal, inverted Table 6: Description socket Ethernet © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 39: Operation At The Measuring Device

    • Wait for approx. 2 minutes. The display automatically switches back to measured value display without operation of a key. Any settings made are also saved. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 40: Change Value

    Display of the pending warnings. When an error is pending, the LED PWR flashes red. When no errors are pending, no errors are displayed. → Also see page 71, chapter 12.3, list of possible errors. Table 7: Main menu © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 41: Menu "Swvers

    2 seconds to get to the "Menu". Push the key so that the parameter "HwVers" is displayed. Parameter Description HwVers Version number display Table 9: Menu "HwVers" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 42: Menu "Ssi

    • WrnTemp: Temperature is outside of thresholds. • WrnPlb: Measured value not plausible. • MF1: MF1 active • MF2: MF2 active Factory setting • All options are deactivated. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 43: Menu "More

    → more → → MFx On. Push the key for at least 2 seconds to get to the "Menu". Push the key. The currently set option is displayed here. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 44: Menu "Mf1

    Options Description ActSta Select level or flank of the multifunction input/output MF1. Options • ActLow: LOW-level at active output (normally closed/NC) or activation of the input at dropping flank • ActHi: HIGH-level at active output (normally open/NO) or activation of the input at rising flank Factory setting • ActLow © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 45: Submenu "Mf1 - Dist

    • Menu "MFx On": Option "Enable" • Parameter "Functn": Option "Dist" Parameter Description Limit Set distance-dependent switching threshold. Hysteresis Set Hysteresis for the switching threshold. – Dist" Table 14: Submenu "MF1 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 46: Submenu "Mf1 - Speed

    Set speed for the switching threshold The switching output is activated when the current speed exceeds the set speed. The switching hysteresis is set firmly to ± 0.1m/s. Adjustment range Range 0.0 … 9.9 m/s Factory setting • 0 [mm] © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 47: Submenu "Mf1 - Srvice

    • On WrnLsr Activating and deactivating warning messages when the measuring device must be replaced soon because the laser ages. Options • On • Off Factory setting • On 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 48 Activate or deactivate warning when the heating is switched on. This parameter is only displayed for measuring devices with the option "Heating". Options • On • Off Factory setting • On Table 16: Submenu "MF1 – Srvice" © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 49: Submenu "Mf1 - Preset" - Move To Initialization Position

    Since the display only has six digits, you may only enter negative values up to "–99999" in the display. Factory setting • 10 Table 17: Submenu "MF1 – Preset" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 50: Menu "Mf2

    • ActLow Functn Select function for the multifunction output. Depending on the selection, the corresponding submenu is displayed. Options • Dist • Srvice • Speed Factory setting • Dist © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 51: Menu "Offset

    For negative distances, the value output is "0". When the "Preset" function is activated, the offset is overwritten by triggering of the preset input. Adjustment range • -300000 … +300000 mm Factory setting • 0 [mm] enu "Offset" Table 19: M 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 52: Menu "Specfu

    Note: Medium and Slow use the same averaging depth. AvgSpd Select filter depth for the speed values. Options • Medium • Slow • Fast Factory setting • Medium Note: Medium and Slow use the same averaging depth. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 53: Perform Reset

    2. Push the key 3. The safety request "Sure?" is displayed. 4. Push the button to reset the measuring device to the delivery state. Push the key to cancel the process. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 54: Operation Via Ethernet (Ethernet Interface)

    • The DHCP server has an interference. • The DHCP server was not ready yet when the distance measuring device was switched on. • The network connection has an interference. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 55: Ethernet Parameter List

    Table 23: Page "Device information" – field "Software version" Field "Hardware Version" Parameter Description Hardware Displaying the hardware version. version Read/Write access • Read only Table 24: Page "Device information" – field "Hardware version" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 56: User Information

    Parameter Description Storage You may only enter user information in the user level "Maintenance staff". This requires the password "esick". Read/Write access • Write only Table 27: Page "User information" – field "Store user information" © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 57: Measured Data

    Read/Write access • Read only Unit • m/s Acceleration Measurement value "Acceleration". Read/Write access • Read only Unit • m/s Table 29: Page "Measured data" – field "Measurement values" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 58: Diagnostic Data

    Display of current internal device temperature. Read/Write access • Read only Unit • °C Operating hours Display of current operating hours. Read/Write access • Read only Unit • h Table 30: Page "Diagnostic data" © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 59: Parameter Settings

    • 0: 0.1 / 1: 0.125 / 2: 1.0 / 3: 10.0 / 4: 100.0 Factory setting • 0.1 mm Table 32: Page "Parameter settings" – field "Measured value resolution" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 60 • Device not ready for operation • Status heating (for device model with heating) Factory setting • All options are deactivated. Table 34: Page "Parameter settings" – field "Errorbit configuration" © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 61 MF1. Read/Write access • Read and write Input value • 0: High / 1: Low Factory setting • Low Table 36: Page "Parameter settings" – field "MF1 function configuration" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 62 Threshold Enter switching threshold for the multifunction output MF1. velocity Read/Write access • Read and write Input value • 0 ... 15000 Unit • mm/s Factory setting • 5000 © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 63 • The warning messages "Measurement stability", "Level", "Laser", "Temperature" and "Device not ready" are activated. The message "Heater state" is deactivated. Table 39: Page "Parameter settings" – field "MF1, Service configuration" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 64 You may reset the counters via the button "Reset MF2". Read/Write access • Read and write Input value • –2147483648 ... 2147483647 Table 41: Page "Parameter settings" – field "Number of MF activation" © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 65 Enter power up threshold for heating. threshold Read/Write access • Read and write Input value • –10 ... +40 Unit • °C Factory setting • –10 Table 43: Page "Parameter settings" – field "Heater" 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 66: Methods

    • Use the selection button to select the desired option. • Click the button to perform the option. Read/Write access • Write only Input value • 0: Off / 1: On / 2: Auto Factory setting • Auto Table 46: Page "Methods" © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 67: 10 Interface "Ssi

    Mono flop time 15 µs … 25 µs Delay time: first cycle max. 540 ns, all other cycles max. 360 ns Period duration of a cycle signal Tp Cycle pause 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 68: Ssi Protocol (Data Format)

    Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit Bit 23 22 21 20 19 18 17 16 15 14 13 12 11 10 Table 48: Data formats © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 69: 11 Cleaning And Maintenance

    Cleaning intervals Cleaning housing Skilled person depending on ambiance conditions and climate Every 6 months Check screw and plug connections at regular intervals. Skilled person Table 49: Maintenance plan 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 70: 12 Troubleshooting

    An error is pending. see page 71, chapter 12.3. LED BUS is not lit. No time signal • Check wiring. • Check clock-pulse generator. Table 50: LED status indicators © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 71: Warning Messages

    • Re-align distance measuring device and reflector. → For alignment and mounting, see page 23, chapter 6. eLaser The service life of a measurement laser is Interchange measuring device. exceeded. 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 72: Return

    • Dispose of the distance measuring device according to the respective country-specific provisions. 13 Repair Repairs must only be performed by the manufacturer. The manufacturer's warranty will lapse in case of interruptions and changes to the device. © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 73: 14 Technical Data

    Technical data 14 Technical data NOTE! You may download, save and print the online datasheet with technical data, dimensions and connection diagrams for your distance measuring device online at "www.sick.com/Dx100". 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 74: Dimensions

    All dimensions in mm Fig. 26: Dimensions distance measuring device DL100 Optical axis sender Optical axis receiver Device zero point Threaded mounting hole M5 LED "Status" Display Operating elements © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 75: Device Selection For The Ssi Interface

    655 nm Frequency ≥ 90 MHz Light spot dimensions Typical 5 mm + (2 mm x distance [m]) Average service life Typically 100 000 h at +25 °C Table 54: Laser/Optics 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 76: Performance

    • Hi > UV – 3 V • Lo < 2 V → See page 45, Table 13 and page 51, Table 18 parameter "ActStat". Maximum output current Max. 100 mA © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 77: Interfaces

    Maximum acceleration change 10 m/s² Vibration resistance (sine) EN60068-2-6 Noise EN60068-2-64 Shock resistance EN 60086-2-27 1) When used in the household area, the device may cause interferences. Table 60: Ambient conditions 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 78: 14.10 Constructive Setup

    • Casing: Cast aluminum GD-AlSi12Cu1 (3.2982.05) • Front screen: PMMA Connections M12, SpeedCon™ Display • 6 points with a 5 x 7 point matrix • Overflow is displayed with the maximum value that can be displayed, –99999 or 999999. Table 61: Constructive setup © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 79: 15 Accessories

    Fig. 27: Reflector 0.3 x 0.3 m² Diamond Grade, mounted Description Reflector 0.3 x 0.3 m² Diamond Grade, mounted on base plate ALMG3 Type PL240DG Part no. 1017910 Fig. 28: Reflector 0.6 x 0.6 m² Diamond Grade, mounted Description Reflector 0.6 x 0.6 m² Diamond Grade, mounted on base plate ALMG3 Type PL560DG Part no. 1016806 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 80 Fig. 30: Reflector 0.3 x 0.3 m² Diamond Grade, mounted, including heating Description Reflector 0.3 x 0.3 m² Diamond Grade, mounted, on base plate ALMG3, including controlled heating +20 °C, 230 V AC, 200 W, IP 64 Type PL240DG-H Part no. 1022926 © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 81: Reflective Tape

    +20 °C, 230 V AC, 200 W, IP 64 Type PL560DG-H Part no. 1023888 15.1.2 Reflective tape Fig. 32: "Diamond Grade" reflective tape Description "Diamond Grade" reflective tape, size customizable Type REF-DG- Part no. 4019634 Description "Diamond Grade" reflective tape, curve 749 x 914 mm Type REF-DG- Part no. 5320565 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 82: Connection Systems

    Type DOL-1208-G10MAH1 Part no. 6032450 Description Female connector, M12, 8-pin, straight, 20m, PUR halogen free, shielded, twisted in pairs for SSI and DME HIPERFACE Type DOL-1208-G20MAH1 Part no. 6032451 © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 83: Cable

    Cable, by meter, 8-pin, PUR halogen free, shielded, twinned pair Type LTG-3108-MW Part no. 6032456 Temperature range • Moved: –25 … +60 °C • Fixed: –50 … +80 °C Sheath PUR black Shield Tinned copper braid 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 84: Mounting Systems

    Ø 5.4 (0.21) 137 (5.39) 85.3 (3.36) (4.96) All dimensions in mm (inch) Fig. 34: Alignment bracket Description Alignment bracket Type BEF-AH-DX100 Part no. 2058653 Material: Zinc-plated steel sheet © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...

  • Page 85: Other Accessories

    Part no. 6048328 Material: Glass-fiber reinforced plastic (GFK) Operating ambiance temperature –20 … +75 °C (short-term +80 °C) Supply voltage 24 V DC ± 20 % Current consumption 15 A at 24 V DC Enclosure rating IP 54 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 86: 16 Menu Structure

    Choose option Choose option Choose option Choose option Choose option Choose option Menu depending on selection of Functn ActSta Functn Count Dist Preset Choose option Speed Srvice LsrOff Display only © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 87 Choose Option Choose Option Choose option Choose option Choose option SpecFu Only versions DL100-xxHxxxxx AvgDst ErrRej Heat Reset AvgSpd Sure? Sure? Choose option Choose option Choose option Enter value 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...

  • Page 88: Index

    Laser irradiation ............15 Technical data ............... 72 LEDs ................19 Transport ................ 21 Limitations of liability ............ 10 Transport inspection ............. 21 Troubleshooting ............. 69 Type Label ..............16 © SICK AG • Subject to change without notice • 8015280/1KIN/2023-08-21...
  • Page 89 Operating instructions Distance measuring device DL100 – SSI Index UL safety notes ..............7 Wiring notes ..............32 8015280/1KIN/2023-08-21 • © SICK AG • Subject to change without notice...
  • Page 90 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
