O P E R A T I N G I N S T R U C T I O N S

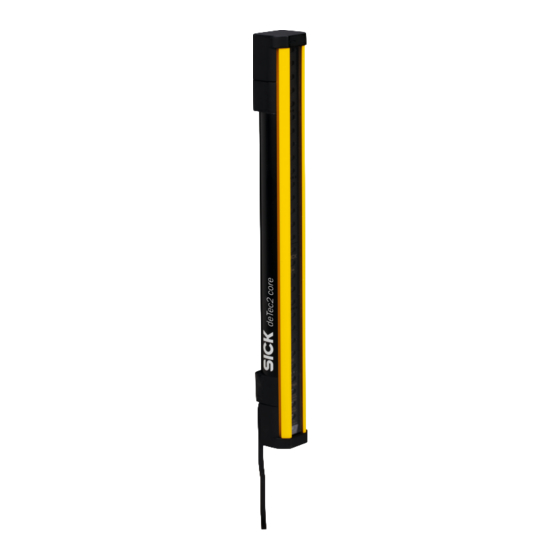

deTec2 Core
Safety light curtain

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the deTec2 Core and is the answer not in the manual?

Questions and answers

Related Manuals for SICK deTec2 Core

Summary of Contents for SICK deTec2 Core

  • Page 1 O P E R A T I N G I N S T R U C T I O N S deTec2 Core Safety light curtain...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Mounting..................... 30 Unpacking....................Installation....................5.2.1 Mounting the QuickFix bracket..........8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 4 Ordering information................ 61 13.1 Scope of delivery..................13.2 Ordering information................. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...
  • Page 5 List of figures..................74 List of tables..................75 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 6: About This Document

    Data sheets and application examples • CAD data and dimensional drawings O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 7: Symbols And Document Conventions

    The symbol indicates the sender. The symbol indicates the receiver. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 8: Safety Information

    • Outdoors • Underwater • In explosion-hazardous areas O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 9: Requirements For The Qualification Of Personnel

    For maintenance, you must be able to assess if the machine is operating safely. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 10: Product Description

    The safety light curtain has a resolution of 30 mm. This resolution provides hand protection. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 11: Product Characteristics

    8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 12: Status Indicators

    Fault indication Blue Alignment quality 1, 2, 3, 4 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 13: Example Applications

    Figure 5: Hazardous point protection Figure 6: Access protection 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 14 PRODUCT DESCRIPTION Figure 7: Hazardous area protection O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 15: Project Planning

    8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 16: Scanning Range And Protective Field Width

    "Deflector mirrors", page 67 • "Weld spark guard", page 64 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 17: Minimum Distance From The Hazardous Point

    S = (K × T) + 8 × (d – 14 mm) 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 18 S = 1,600 mm/s × 0.32 s + 8 × (14 mm – 14 mm) = 512 mm O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 19: Minimum Distance To Reflective Surfaces

    Figure 10: Minimum distance from reflective surfaces 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 20: To The Protective Field

    Further topics • "Weld spark guard", page 64 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 21: Protection Against Interference From Systems In Close Proximity To Each Other

    Figure 13: Trouble-free operation due to reversed direction of transmission of system  1 and system  8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 22: Integration In Electrical Control

    Figure 14: Dual-channel and isolated connection of OSSD1 and OSSD2 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...
  • Page 23 (SELV/PELV). Suitable power supply units are available as accessories from SICK. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 24: Restart Interlock

    • Positively guided contactors are used for shutting down the machine. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 25: Connection Diagrams

    8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 26: Test Rod Check

    The test is carried out with an opaque test rod whose diameter corresponds to the resolution of the safety light curtain. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...
  • Page 27 The OSSD LED must not illuminate green. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 28: Test Rod Check: Step 1

    The OSSD LED must not illuminate green. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 29: Visual Check Of The Machine And The Protective Device

    8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 30: Mounting

    The end with the cable connection must point in the same direction for the sender and receiver. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 31: Sender And Receiver Must Not Be Installed Such That They Are Rotated 180° Relative

    (2). 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 32 5 Nm - 2,5 Nm - 6 Nm 3 Nm O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 33: Mounting The Quickfix Bracket

    The two mounting surfaces for the brackets of the sender or receiver must be parallel and lie in the same plane. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 34 (4). Figure 21: Mounting the QuickFix bracket to a profile O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 35: Mounting The Flexfix Bracket

    A screw nut or threaded hole is required on the machine or profile frame (3). 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 36 (3) Figure 23: Inserting the safety light curtain in the FlexFix brackets O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...
  • Page 37 Figure 24: Mounting the FlexFix bracket on a device column (accessory) 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 38: Mounting The Compact Flexfix Bracket

    A screw nut or threaded hole is required on the machine or profile frame (3). O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 39: Mounting The Upgrade Bracket

    There is no need to drill new holes, since the existing ones can be used for the replacement bracket. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 40 Additional information for mounting a safety light curtain with a replacement bracket can be found in the mounting instructions for the replacement bracket. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 41: Electrical Installation

    • Mounting has been correctly executed. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 42: System Connection (M12, 5-Pin)

    System connection (M12, 5-pin) Figure 29: System connection (male connector, M12, 5-pin) O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 43: System Connection Via Connection Cable (M12, 5-Pin To 8-Pin)

    C2000 safety light curtain with a deTec2 Core , without having to route new cables. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 44: Commissioning

    Make sure that the outputs of the safety light curtain do not affect the machine during the alignment process. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 45: Aligning The Sender And Receiver

    AR60 optional laser alignment aid. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 46: Alignment With The Quickfix Bracket

    • Shift vertically • Rotate (± 15°) O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 47: Alignment With The Compact Flexfix Bracket

    • Shift vertically • Rotation (± 15°) 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 48: Indication Of The Alignment Quality

    Alignment is good, stable availability. Blue Blue Blue Green O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 49: Check During Commissioning And Modifications

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 50: Operation

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 51: Maintenance

    Then wipe the front screen with a clean, damp cloth. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 52: Regular Thorough Check

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 53: Troubleshooting

    "Ordering informa‐ tion", page 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 54 LED off. Ö LED flashes. O LED illuminates. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 55: Decommissioning

    SICK will be glad to help you dispose of these devices on request. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 56: Technical Data

    Housing material Aluminum extruded profile Front screen material PMMA O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...
  • Page 57 Ambient operating temperature     -30 °C +55 °C 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 58: Response Time

    1.06 3.12 2.11 1200 1.68 1.10 3.36 2.21 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 59: Length Of Cable

    1950 1790 1800 2100 1920 1930 Tolerance: ± 50 g. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 60: Dimensional Drawings

    IEC 61496-1 is recognized over the entire length of the housing. The limits of the protective field are identical to ends of the housing. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 61: Ordering Information

    C2C-SA19530A10000 1213223 C2C-EA19530A10000 2100 1213201 C2C-SA21030A10000 1213164 C2C-EA21030A10000 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 62: Accessories

    For devices with a protective field height of 150 mm. For devices with a protective field height of 200 mm or greater. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...
  • Page 63 Figure 35: Dimensional drawing of the FlexFix bracket 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 64: Mounting Accessories

    (see table 24). O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...
  • Page 65 Press against the weld spark guard Cut off excess ends 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 66: Connectors

    Ambient operating temperature: Down to −30° C with fixed installation. Ambient operating temperature: Down to –30 °C with fixed installation O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 67: Alignment Aid

    To mount the deflector mirrors, use the included swivel mount brackets. 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 68: Change In Scanning Range Using Deflector Mirrors

    1090 1050 PNS125-109 1019430 1240 1200 PNS125-124 1019431 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 69: Mirror Columns

    Part number Anti-static plastic cleaner 5600006 Lens cloth 4003353 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 70: Test Rods

    Test rod 30 mm 2022602 Test rod holder 2052249 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 71: Annex

    IEC 61496-3 GB 19436.3 IEC 61508 GB/T 20438 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 72 ISO 13849-1 GB/T 16855.1 ISO 13855 GB/T 19876 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK Subject to change without notice...

  • Page 73: Checklist For Initial Commissioning And Commissioning

    8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 74: List Of Figures

    38. Mount the weld spark guard..................65 39. Example of use of deflector mirrors................67 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/1DCM/2022-10-27 | SICK...

  • Page 75: List Of Tables

    38. Ordering information, test rods..................70 39. Note on standards...................... 71 8014276/1DCM/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 76 Phone +7 495 283 09 90 E-Mail info@sick.com E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG  |  Waldkirch  |  Germany  |  www.sick.com...
