OPERATION

GB
NOTE:
Familiarise yourself with the method of adjusting
the cutting height by studying the cutting height
adjustment decal below and on the SF300-RD60
mower deck before adjusting the height of cut.
CUTTING HEIGHT ADJUSTMENT
7.1 FRONT CASTOR WHEELS
7.1.1 Raise the mower deck from the ground
with the tractor lift so that the mower front
castor wheels are clear of the ground.
7.1.2 Remove the quick pin from the top of the
castor wheel pivot spindle.
7.1.3 Remove the castor wheel from the castor
support.
7.1.4 Select either Position 1 or Position 2 for
wheel mounting bracket. To change,
remove (4) mounting bolts, move to the
alternative location and bolt in place.
7.1.5 Place the selected number of spacers
below the caster support. Place the
remaining spacers above the castor
support.
7.1.6 Replace the quick pin.
7.2 REAR LIFT RODS
7.2.1 Remove the retaining pin from one of the
lift rod collars.
7.2.2 Select the position that matches the
selected setting of the front castor wheels,
i.e. with the wheel mounting bracket in
Position 1 and front castor wheel A4, set
lift rod collar at H2 to give 64 mm (2-1/2")
cutting height.
7.2.3 Replace the retaining pin.
7.2.4 Repeat the operation to the other lift rod.
Please note for 'H' position fit the lift rod
collar in reverse by turning over.
12
RANSOMES SF300-RD60 ROTARY DECK Series: YZ
SAFETY AND OPERATORS MANUAL

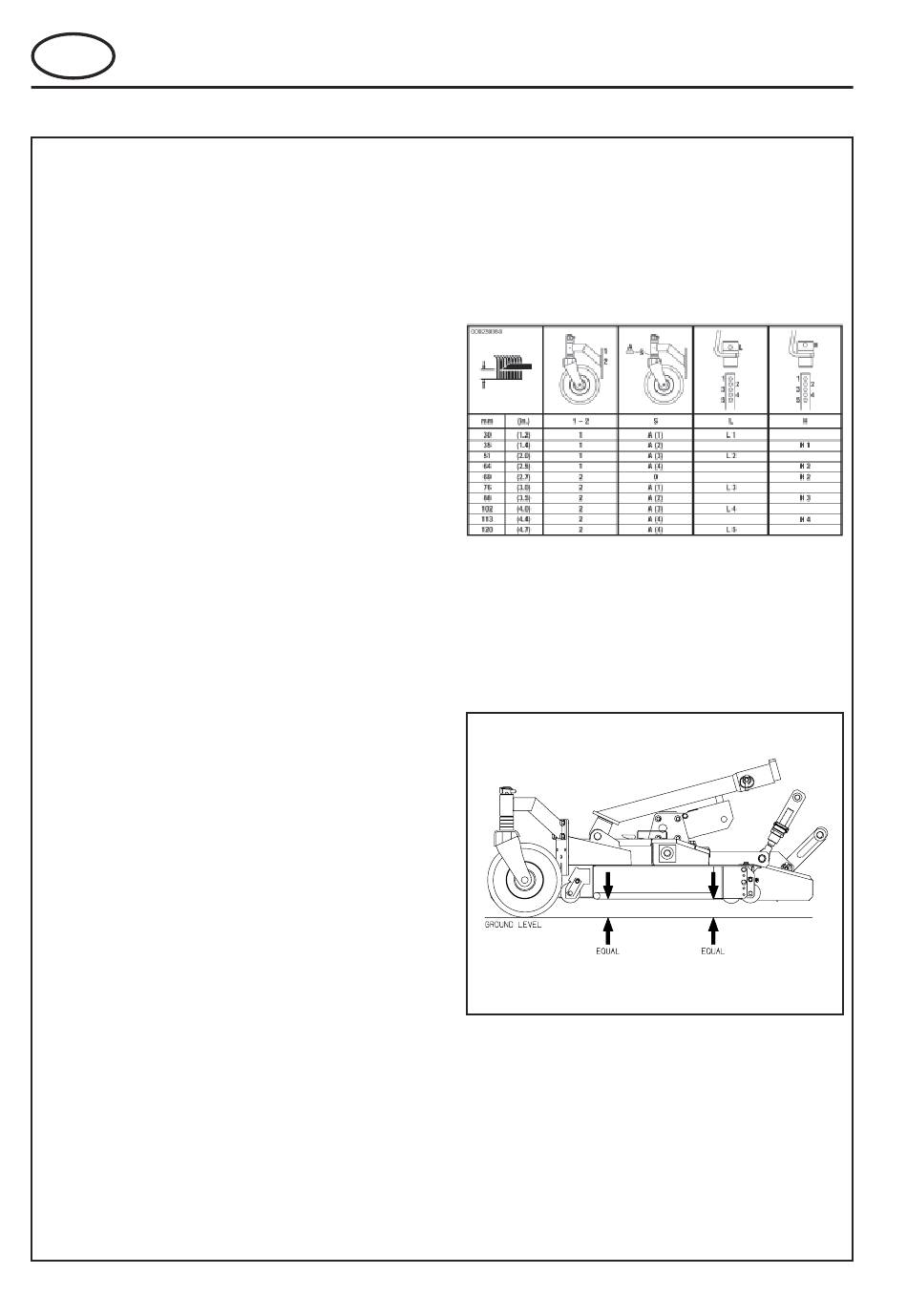

fig 6
fig 7
ROTARY DECK HEIGHT OF CUT
ADJUSTMENT DECAL
ROTARY DECK HEIGHT OF CUT
ADJUSTMENT
