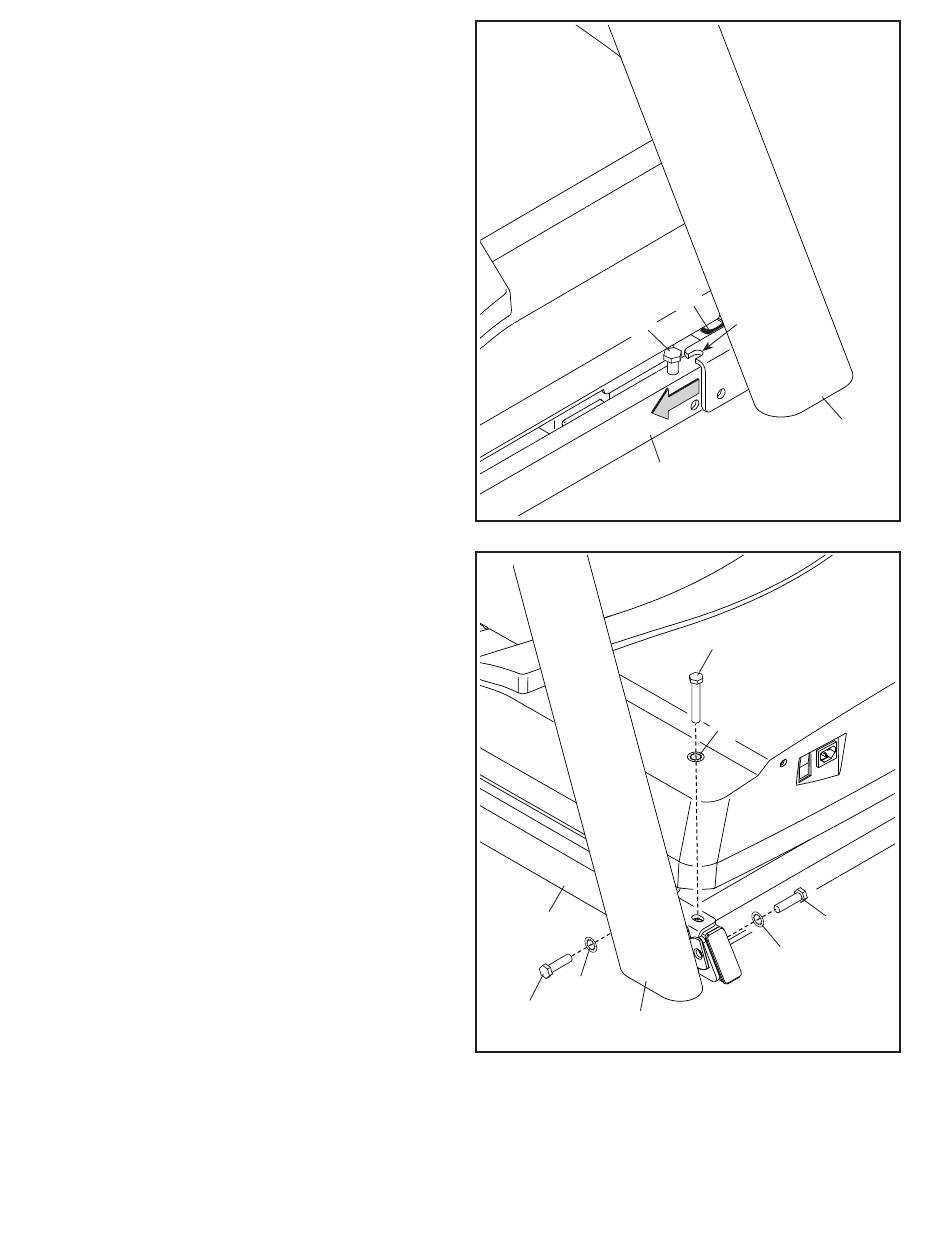

4. Set the Right Upright (79) on the Base (88) as
shown. Make sure not to pinch the Upright
Wire (80). Then, slide the Right Upright so
that the 3/8" x 2 3/8" Screw (2) in the Base is
inserted into the slot (E) in the Right Upright. Do
not tighten the Screw yet.
5. Attach the Right Upright (79) to the Base (88)
with a 3/8" x 2 3/8" Screw (2), a 3/8" x 1 1/4"
Screw (3), a 3/8" x 1 1/2" Screw (4), and three
3/8" Star Washers (6) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) as
instructed in steps 4 and 5. Note: There are no
wires on the left side.
