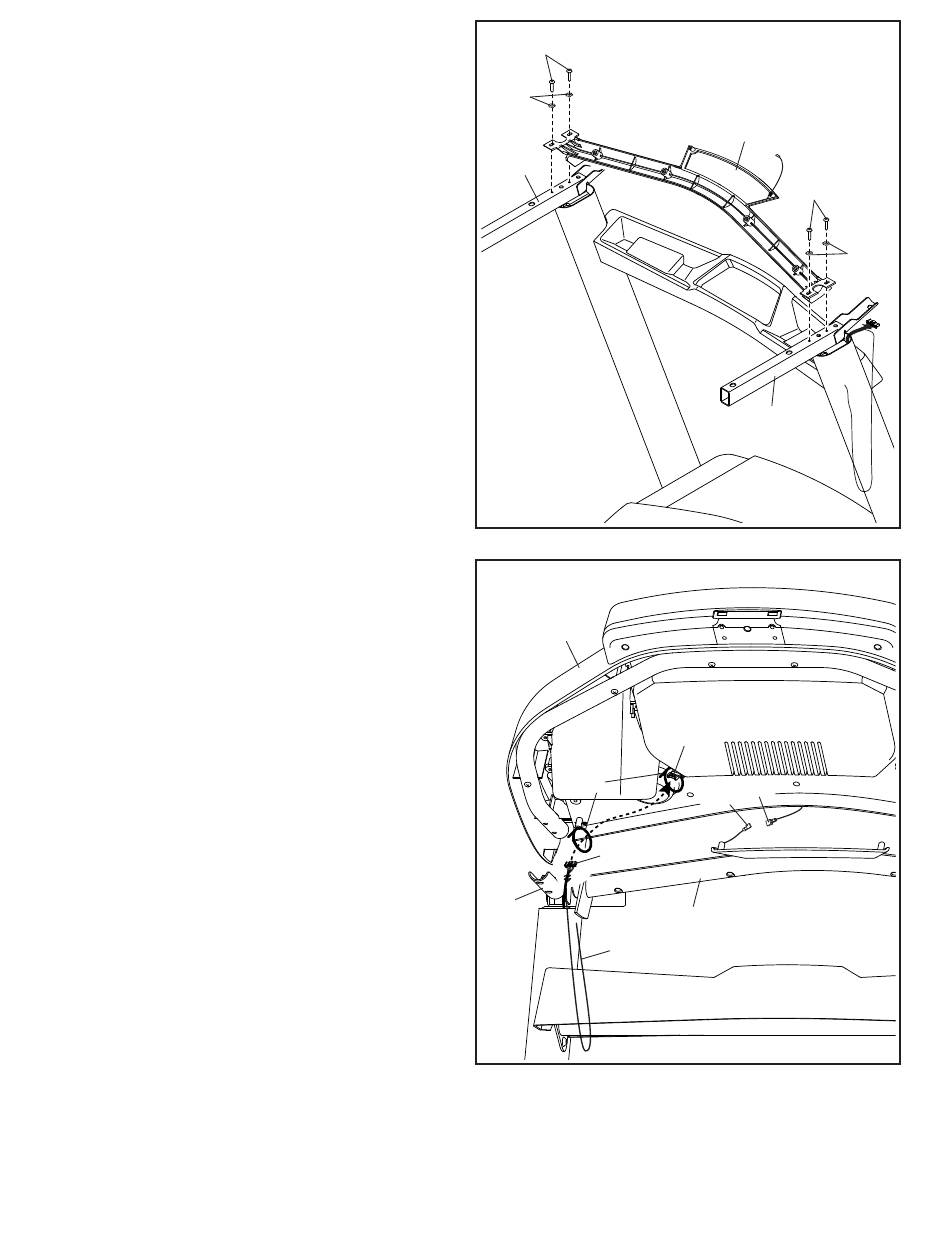

Pro-Form PFTL50919-INT.0 User Manual page 13

12. IMPORTANT: To avoid damaging the
Crossbar (75), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Crossbar (75) as shown. Attach the
Crossbar to the Handrails (72) with four #10 x
3/4" Screws (9) and four #10 Star Washers (8);
start all four Screws, and then tighten them.
13. With the help of a second person, hold the con-
sole assembly (H) near the Handrails (72).
Connect the ground wire (I) from the console
assembly (H) to the Console Ground Wire (76)
on the Crossbar (75).
Next, insert the Upright Wire (80) through the
two indicated looped ties (J).
Connect the Upright Wire (80) to the con-
sole wire (K). The connectors should slide
together easily and snap into place with an
audible click. If they do not, turn one con-
nector and try again. Then, remove the wire tie
(A) from the Upright Wire.
