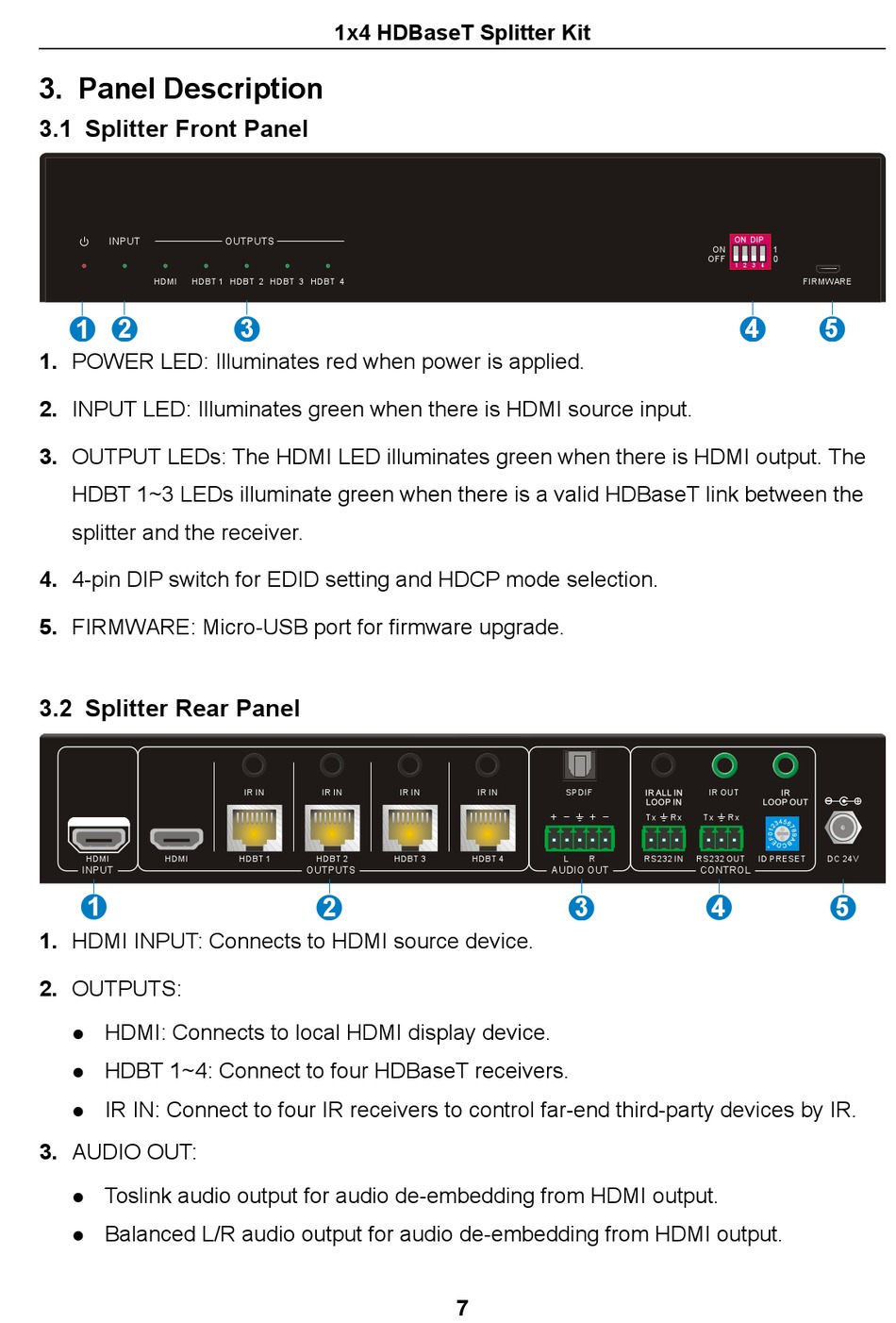

3. Panel Description

3.1 Splitter Front Panel

INPUT
HDMI HDBT 1 HDBT 2 HDBT 3 HDBT 4
1 2
1. POWER LED: Illuminates red when power is applied.
2. INPUT LED: Illuminates green when there is HDMI source input.
3. OUTPUT LEDs: The HDMI LED illuminates green when there is HDMI output. The
HDBT 1~3 LEDs illuminate green when there is a valid HDBaseT link between the
splitter and the receiver.
4. 4-pin DIP switch for EDID setting and HDCP mode selection.
5. FIRMWARE: Micro-USB port for firmware upgrade.

3.2 Splitter Rear Panel

HDMI HDMI
INPUT
1
1. HDMI INPUT: Connects to HDMI source device.
2. OUTPUTS:
HDMI: Connects to local HDMI display device.

HDBT 1~4: Connect to four HDBaseT receivers.

IR IN: Connect to four IR receivers to control far-end third-party devices by IR.

3. AUDIO OUT:
Toslink audio output for audio de-embedding from HDMI output.

Balanced L/R audio output for audio de-embedding from HDMI output.

1x4 HDBaseT Splitter Kit
OUTPUTS
3
IR IN IR IN
HDBT 1 HDBT 2
OUTPUTS
2
IR IN IR IN
HDBT 3 HDBT 4
AUDIO OUT
7
ON
OFF
SPDIF IR OUT
Tx Rx Tx Rx
L R RS232 IN RS232 OUT
CONTROL
4
3
1
0
1 2 3 4
FIRMWARE
4 5
ID PRESET DC 24V
5
