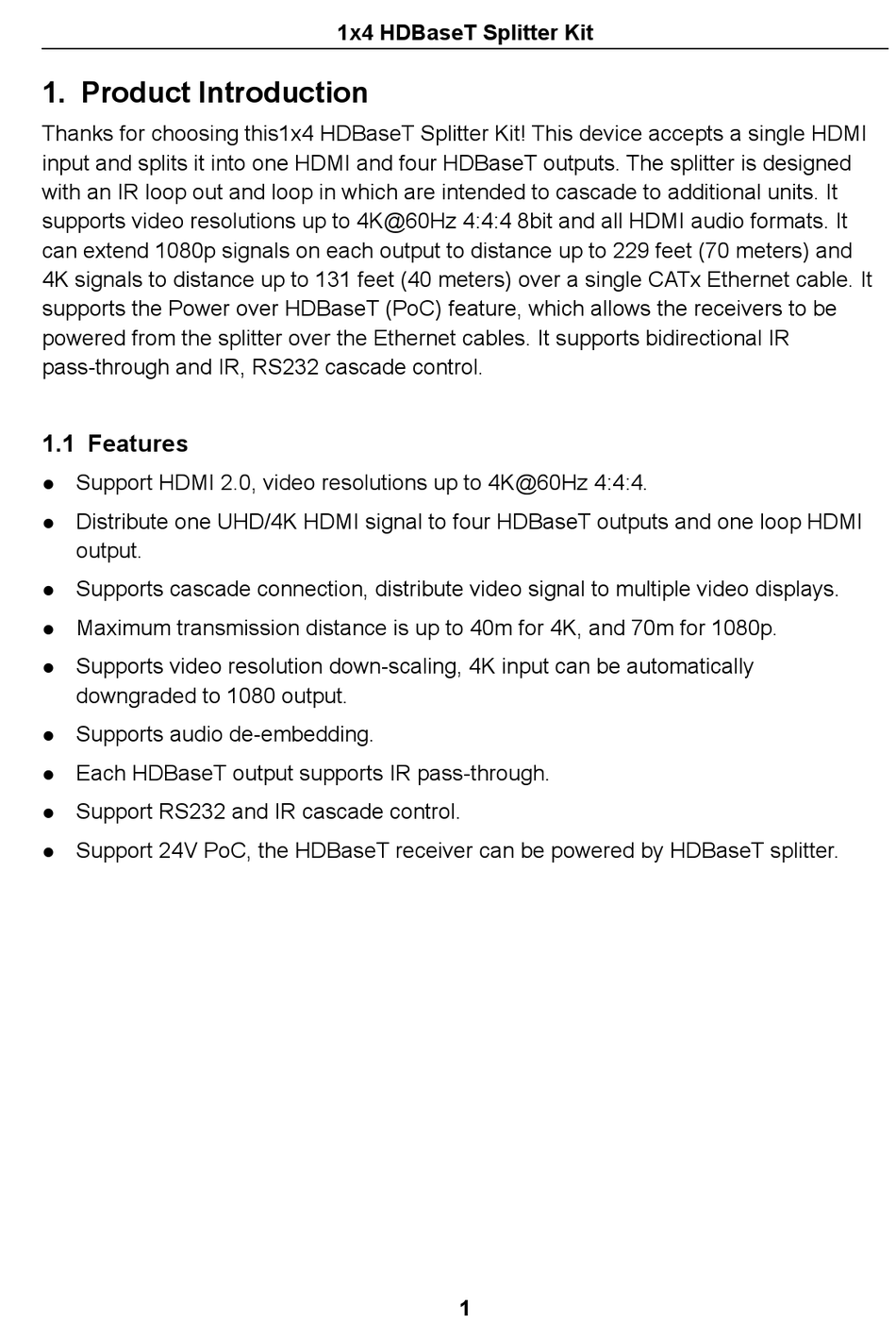

1. Product Introduction

Thanks for choosing this1x4 HDBaseT Splitter Kit! This device accepts a single HDMI
input and splits it into one HDMI and four HDBaseT outputs. The splitter is designed
with an IR loop out and loop in which are intended to cascade to additional units. It
supports video resolutions up to 4K@60Hz 4:4:4 8bit and all HDMI audio formats. It
can extend 1080p signals on each output to distance up to 229 feet (70 meters) and
4K signals to distance up to 131 feet (40 meters) over a single CATx Ethernet cable. It
supports the Power over HDBaseT (PoC) feature, which allows the receivers to be
powered from the splitter over the Ethernet cables. It supports bidirectional IR
pass-through and IR, RS232 cascade control.

1.1 Features

Support HDMI 2.0, video resolutions up to 4K@60Hz 4:4:4.

Distribute one UHD/4K HDMI signal to four HDBaseT outputs and one loop HDMI

output.
Supports cascade connection, distribute video signal to multiple video displays.

Maximum transmission distance is up to 40m for 4K, and 70m for 1080p.

Supports video resolution down-scaling, 4K input can be automatically

downgraded to 1080 output.
Supports audio de-embedding.

Each HDBaseT output supports IR pass-through.

Support RS232 and IR cascade control.

Support 24V PoC, the HDBaseT receiver can be powered by HDBaseT splitter.

