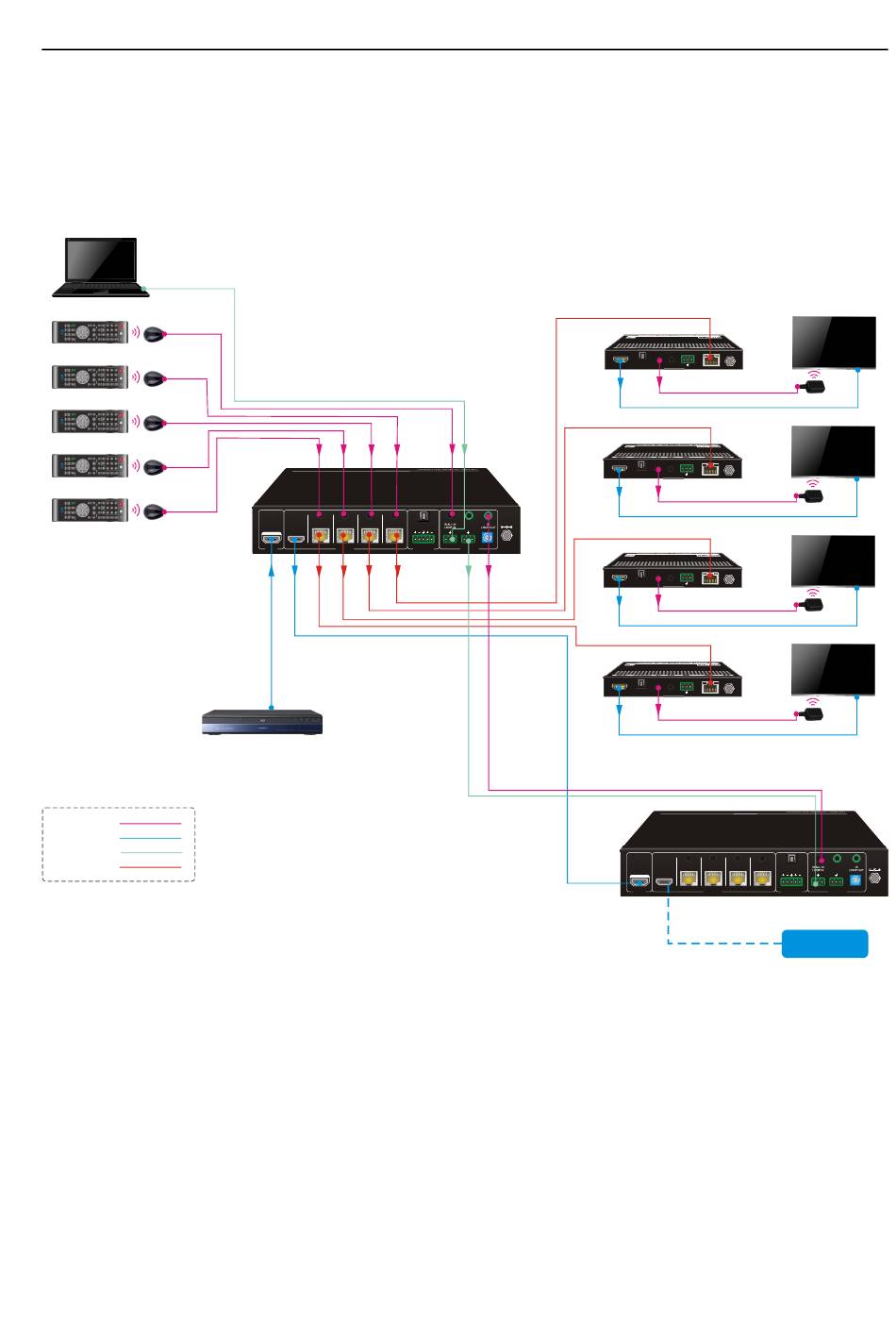

Cascade Connection:
The splitter supports cascade connection to distribute video signal to multiple video
displays. Use the following connection diagram as a guide for cascading multiple units.
Note that each unit must have a unique ID if using RS232 control.
Laptop
Remote
IR Receiver
Remote
IR Receiver
Remote
IR Receiver
Remote
IR Receiver
Remote
IR Receiver
IR:
HDMI:
RS232:
HDBaseT:
1x4 HDBaseT Splitter Kit
IR IN
IR IN
IR IN
IR IN
HDMI
HDMI
HDBT 1
HDBT 2
HDBT 3
HDBT 4
L
INPUT
OUTPUTS
AUDIO OUT
Blu-Ray
SPDIF
IR OUT
Tx
Rx
Tx
Rx
R
RS232 IN
RS232 OUT
ID PRESET
DC 24V
CONTROL
10
Receiver
HDCP
LINK
Tx
Rx
Receiver
HDCP
LINK
Tx
Rx
Receiver
HDCP
LINK
Tx
Rx
Receiver
HDCP
LINK
Tx
Rx
IR IN
IR IN
IR IN
IR IN
SPDIF
HDMI
HDMI
HDBT 1
HDBT 2
HDBT 3
HDBT 4
L
R
INPUT
OUTPUTS
AUDIO OUT
Next 1x4 Splitter
4K TV
IR Emtter
4K TV
IR Emtter
4K TV
IR Emtter
4K TV
IR Emtter
IR OUT
Tx
Rx
Tx
Rx
RS232 IN
RS232 OUT
ID PRESET
DC 24V
CONTROL
