4. CONTROL:
IR ALL IN/LOOP IN: Connects to IR receiver to control far-end display device,

or it can be connected to IR LOOP OUT of previous splitter.
IR OUT: Connects to IR emitter to control the local source device by IR.

IR LOOP OUT: Connects to IR ALL IN port of next splitter.

RS232 IN: Connects to control device (e.g. PC) to control the splitter or far-end

third-party devices by RS232, or it can be connected to the RS232 OUT port of
previous splitter.
RS232 OUT: Connects to the RS232 IN port of next splitter.

ID PRESET: Assigns a unique ID to each splitter when cascading multiple

splitters. There are sixteen ID (0~9, A~F) can be set by using a small, flathead
screwdriver. The new ID will take effect after device reboot.
5. DC 24V: DC connector for the power adapter connection.

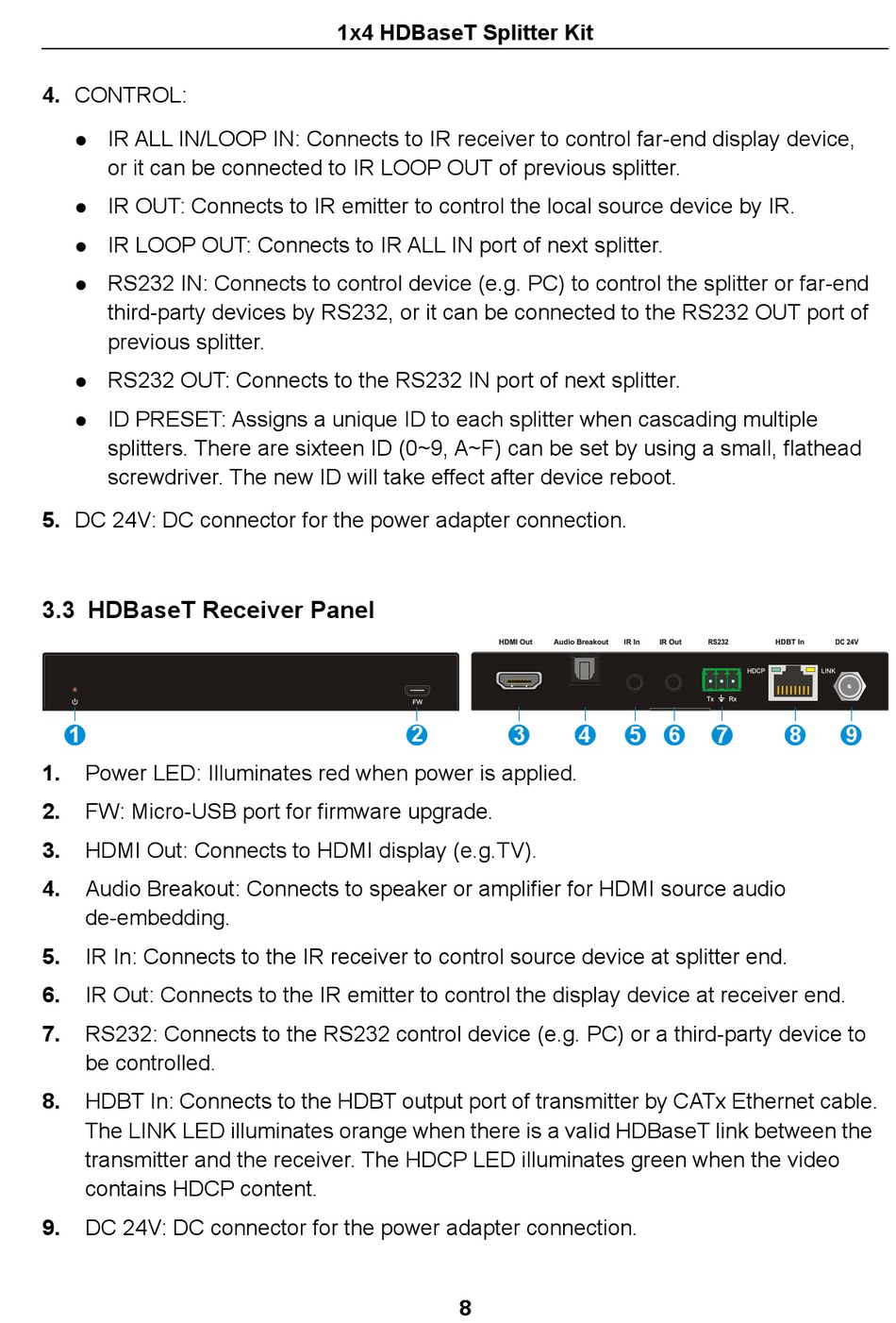

3.3 HDBaseT Receiver Panel

1
1. Power LED: Illuminates red when power is applied.
2.
FW: Micro-USB port for firmware upgrade.
3.
HDMI Out: Connects to HDMI display (e.g.TV).
4.
Audio Breakout: Connects to speaker or amplifier for HDMI source audio
de-embedding.
5. IR In: Connects to the IR receiver to control source device at splitter end.
6. IR Out: Connects to the IR emitter to control the display device at receiver end.
7. RS232: Connects to the RS232 control device (e.g. PC) or a third-party device to
be controlled.
8. HDBT In: Connects to the HDBT output port of transmitter by CATx Ethernet cable.
The LINK LED illuminates orange when there is a valid HDBaseT link between the
transmitter and the receiver. The HDCP LED illuminates green when the video
contains HDCP content.
9.
DC 24V: DC connector for the power adapter connection.
