7. DIP Switch Operation

7.1 EDID Management

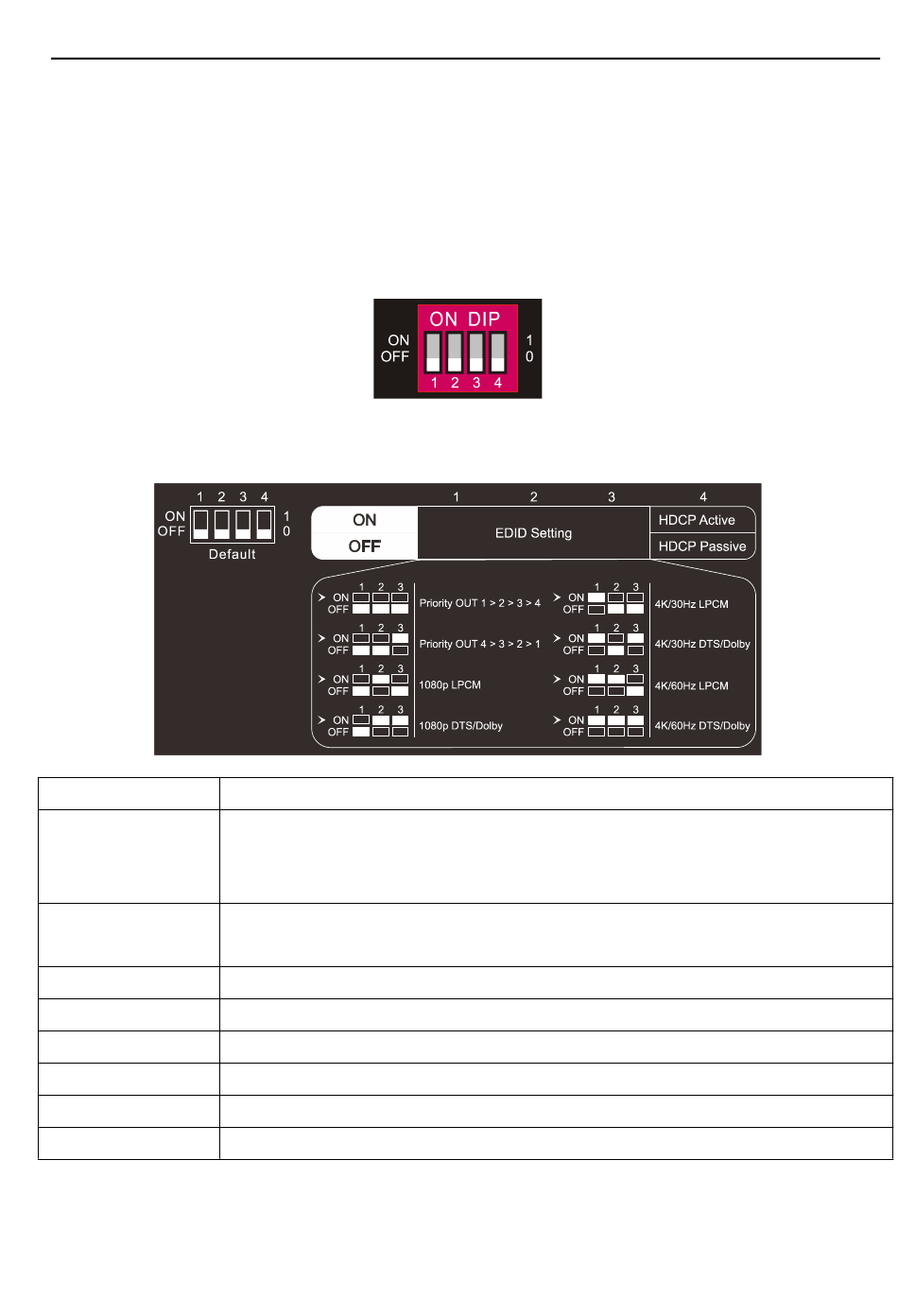

The DIP switch on the front panel can be used to set the EDID to a fixed value to
ensure the compatibility in video resolution.
The switch represents "0" when in the lower (OFF) position, and it represents "1" while
putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding
setting are shown at the back of the product.
Switch Status
000
001
010
011
100
101
110
111
1x4 HDBaseT Splitter Kit
Obtains the EDID from the first detected display device which is
connected to HDBaseT receiver starting at HDBT output 1>2>3>4
(Default).
Obtains the EDID from the first detected display device which is
connected to HDBaseT receiver starting at HDBT output 4>3>2>1.
3840x2160@30Hz HDR DTS/Dolby
3840x2160@60Hz HDR DTS/Dolby
EDID
1080p LPCM
1080p DTS/Dolby
3840x2160@30Hz HDR LPCM
3840x2160@60Hz HDR LPCM
