5.3 Controlling the Source Device

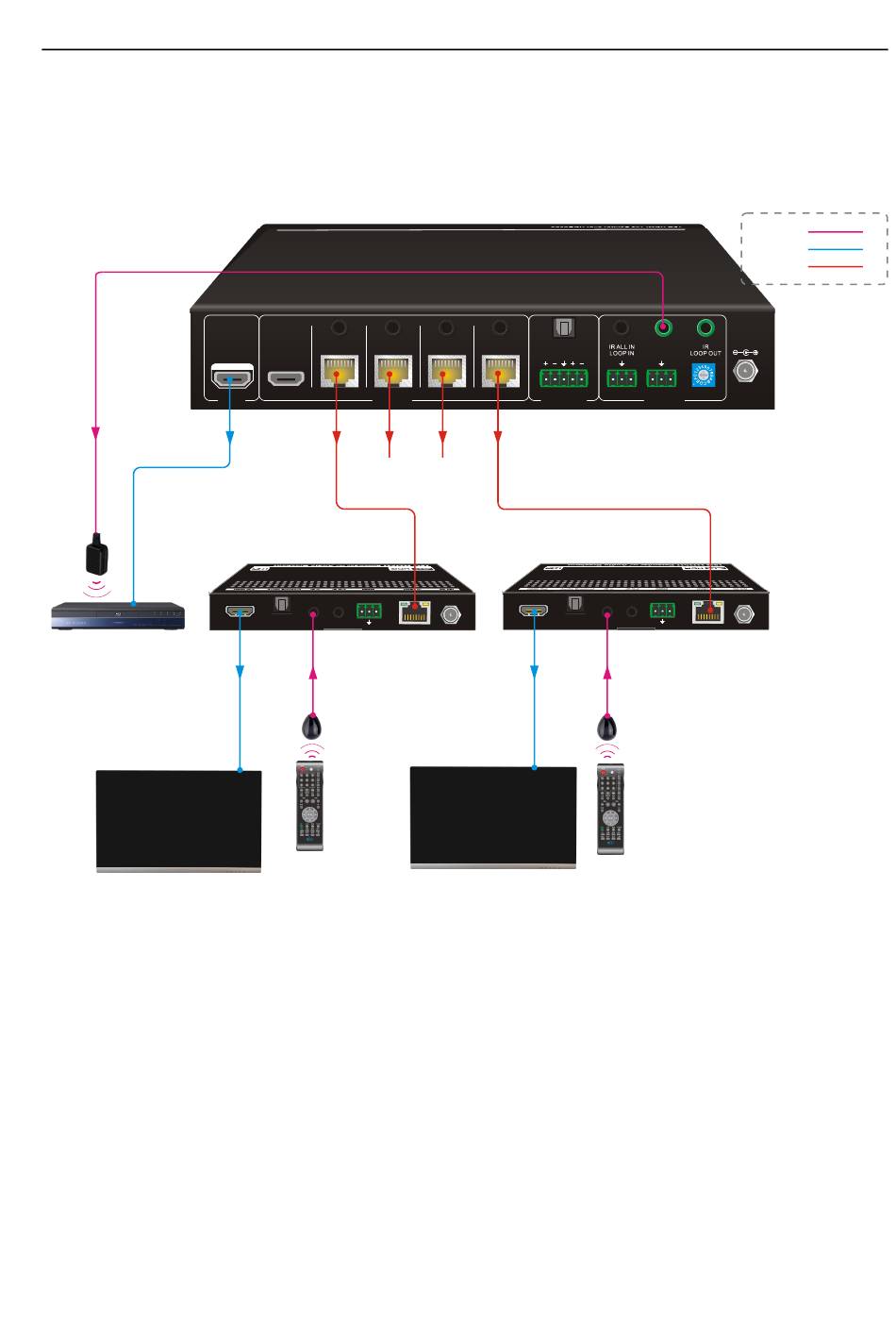

The IR OUT port of the splitter can send all IR signals to control source device.
Connect four IR receivers to IR IN ports on HDBaseT receivers, and then connect an
IR emitter to IR OUT port of the splitter.
IR
Emitter
DVD
4K TV-1
1x4 HDBaseT Splitter Kit
IR IN IR IN
HDMI HDMI HDBT 1 HDBT 2
INPUT OUTPUTS
1080P 70M
4K 40M
HDCP
Tx Rx
IR
Receiver
DVD Remote
IR IN IR IN SPDIF
HDBT 3 HDBT 4 L
AUDIO OUT
1080P 70M
LINK
Receiver
Receiver
4K TV-4
13
IR OUT
Tx Rx Tx Rx
R RS232 IN RS232 OUT ID PRESET
CONTROL
4K 40M
HDCP LINK
Tx Rx
Receiver
IR
DVD Remote
IR:
HDMI:
HDBT:
DC 24V
