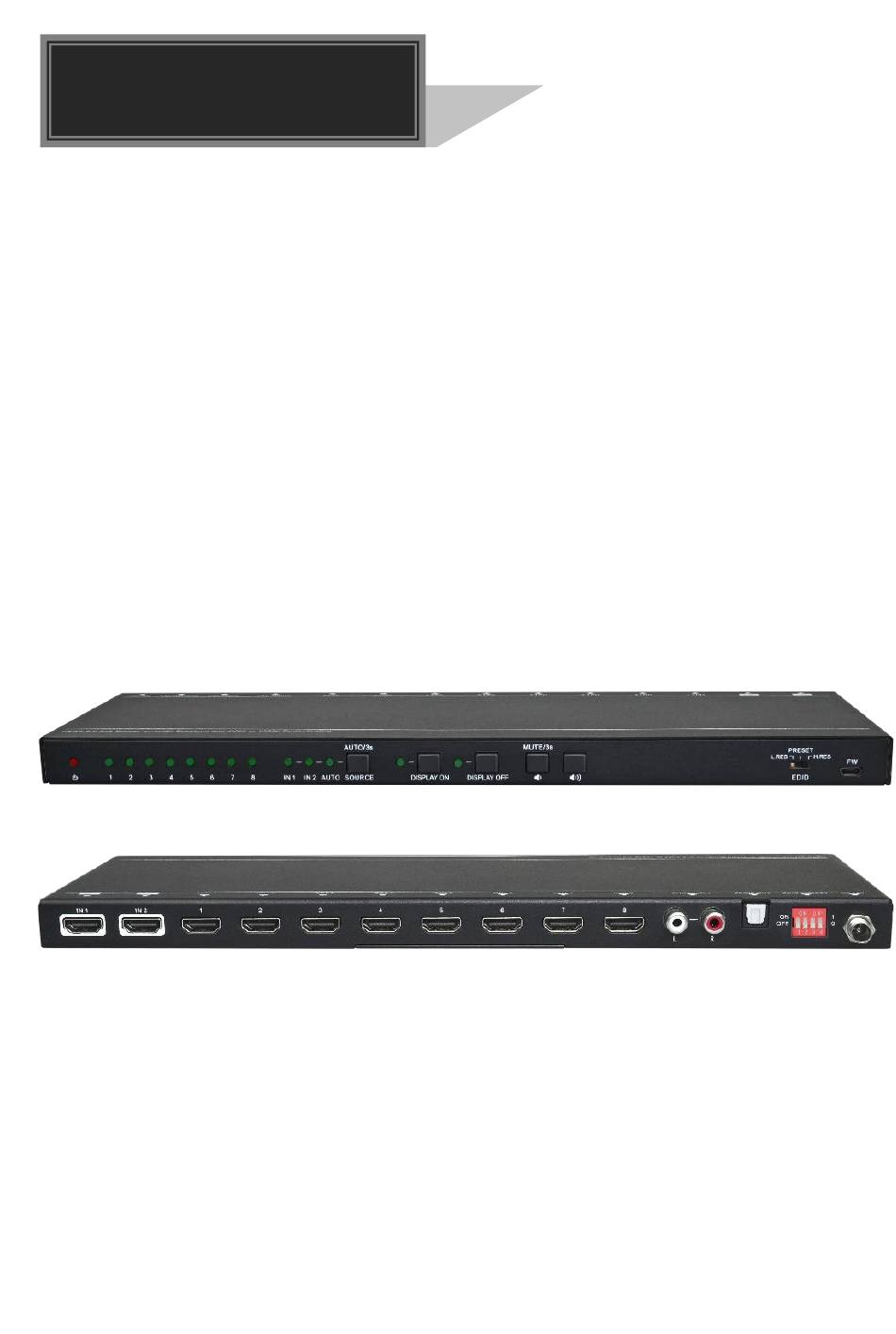

- Page 1 User Manual MP-DA28UHD HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling All Rights Reserved Version: MP-DA28UHD_2018V1.0...
- Page 2 HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling Preface Read this user manual carefully before using the product. Pictures are shown in this manual for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
-
Page 4: Table Of Contents
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling Table of Content 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Packing List ....................... 2 2. Technical Specification ....................3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ...................... -
Page 5: Product Introduction
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 1. Product Introduction Thanks for choosing the HDMI 2.0 2x8 Splitter, which can distribute either one of two HDMI inputs to eight outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D and multichannel audio formats. -
Page 6: Packing List
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 1.2 Packing List 1x HDMI 2.0 2x8 Splitter 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x Power Adapter (12V DC 1A) 1x User Manual ... -
Page 7: Technical Specification
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 2. Technical Specification Video Input Input (2) HDMI Input Connector (2) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version Supported Video Output Output (8) HDMI Output Connector... - Page 8 HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling >70dB, 10KHz sine at 0dBFS level (or max level before Crosstalk Isolation clipping) < 0.3dB, 1KHz sine at 0dBFS level (or max level before L-R Level Deviation clipping) Frequency Response <±...
-
Page 9: Panel Description
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 3. Panel Description 3.1 Front Panel 5 6 7 ① POWER LED: The LED illuminates red when power is applied. ② OUTPUT LEDs: The LED illuminates green when there is HDMI output on the corresponding channel. -
Page 10: Rear Panel
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling mute mode if the displays is already in the mute mode. ⑧ EDID: 3-pin DIP Switch for the Extended Display Identification Data (EDID) value setting. Please refer to the 5.EDID Management for more details. ⑨... -
Page 11: System Connection
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and ... -
Page 12: Edid Management
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 5. EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. - Page 13 HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling Predefined EDID setting When the 3-pin DIP switch on the front panel is in PRESET mode, the 4-pin DIP switch on the rear panel can be used to set the EDID to a built-in fixed value. Use the following table to determine the settings for the 4-pin DIP switch for specific video resolution and audio capabilities.
- Page 14 HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling User defined EDID setting Except directly invoking the built-in EDID, the specific EDID can be customized by following the below operation process. Rename the user defined EDID according the following format. EC_xx_xxxx_xxx.bin EC: Represents EDID.
-
Page 15: Firmware Upgrade
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 6. Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. 2) Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”. -
Page 16: Panel Drawing
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 7. Panel Drawing 324 mm... -
Page 17: Troubleshooting And Maintenance
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 8. Troubleshooting and Maintenance Problems Potential Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly and Colour losing or no video or it may be broken. -
Page 18: Customer Service
HDMI 2.0 2x8 Splitter with Audio Breakout and 4K to 1080P Down-Scaling 9. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice.
