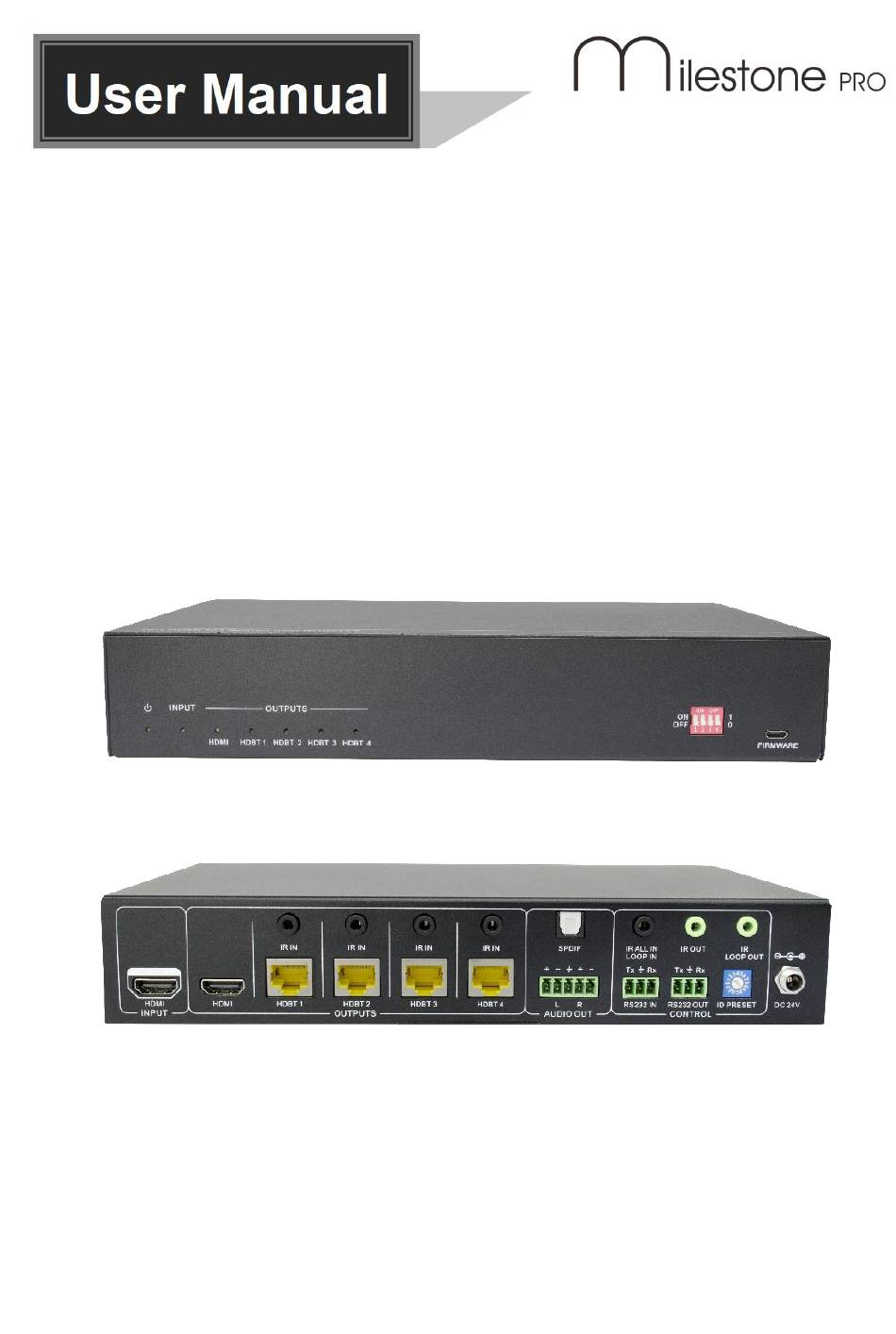

- Page 1 MPHT-4T-H2 KIT 1x4 HDBaseT Splitter Kit All Rights Reserved Version: MPHT-4T-H2 KIT_2019V1.1...
-
Page 2: Table Of Contents
1x4 HDBaseT Splitter Kit Table of Contents ......................1 1. Product Introduction ......................... 1 1.1 Features ......................2 1.2 Package List ......................3 2. Technical Specification .......................3 2.1 HDBaseT Splitter ....................4 2.2 HDBaseT Receiver ..................6 2.3 Video Resolution Down-scaling ....................... -
Page 3: Product Introduction
1x4 HDBaseT Splitter Kit 1. Product Introduction Thanks for choosing this1x4 HDBaseT Splitter Kit! This device accepts a single HDMI input and splits it into one HDMI and four HDBaseT outputs. The splitter is designed with an IR loop out and loop in which are intended to cascade to additional units. It supports video resolutions up to 4K@60Hz 4:4:4 8bit and all HDMI audio formats. -
Page 4: Package List
1x4 HDBaseT Splitter Kit 1.2 Package List 1x MPHT-4T-H2 1x4 HDBaseT Splitter 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x RS232 Cable (3-pin to 3-pin, used for RS232 cascade) 1x RS232 Cable (3-pin to DB9) ... -
Page 5: Technical Specification
1x4 HDBaseT Splitter Kit 2. Technical Specification 2.1 HDBaseT Splitter Video Input (1) HDMI Input Input Connector (1) Female type A HDMI HDMI Input Resolution Up to 4K@60Hz 4:4:4 8bit Video Output (1) HDMI, (4) HDBT Output Output Connector (1) Female type A HDMI; (4) RJ45 HDMI Output Resolution Up to 4K@60Hz 4:4:4 Up to 4K@60Hz 4:4:4 (Signal has been compressed.) -
Page 6: Hdbaset Receiver
1x4 HDBaseT Splitter Kit Control (1) EDID, (1) FIRMWARE, (1) ID PRESET, (1) IR ALL IN/LOOP IN, Control port (1) IR OUT, (4) IR IN, (1) IR LOOP OUT, (1) RS232 IN, (1) RS232 OUT, (1) 4-pin DIP switch, (1) Micro-USB, (1) DIP switch, (7) 3.5mm mini Control Connector jacks, (2) 3-pin terminal blocks General... - Page 7 1x4 HDBaseT Splitter Kit nominal consumer line level signal < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS THD+N level (or max level) > 85dB, 20Hz-20 kHz bandwidth Crosstalk Isolation > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) L-R Level Deviation <...
-
Page 8: Video Resolution Down-Scaling
1x4 HDBaseT Splitter Kit 2.3 Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart. HDMI Output: Input Output Resolution Refresh Color Space Downscale 1080p Specs... -
Page 9: Panel Description
1x4 HDBaseT Splitter Kit 3. Panel Description 3.1 Splitter Front Panel INPUT OUTPUTS 1 2 3 4 HDMI HDBT 1 HDBT 2 HDBT 3 HDBT 4 FIRMWARE 1. POWER LED: Illuminates red when power is applied. 2. INPUT LED: Illuminates green when there is HDMI source input. 3. -
Page 10: Hdbaset Receiver Panel
1x4 HDBaseT Splitter Kit 4. CONTROL: IR ALL IN/LOOP IN: Connects to IR receiver to control far-end display device, or it can be connected to IR LOOP OUT of previous splitter. IR OUT: Connects to IR emitter to control the local source device by IR. ... -
Page 11: System Connection
1x4 HDBaseT Splitter Kit 4. System Connection Speaker Receiver 4K TV IR Emtter Laptop Receiver Remote IR Receiver Blu-Ray Receiver ID = 1 Receiver HDMI: Audio: RS232: HDBaseT: ID = 2 Next 1x4 Splitter... - Page 12 1x4 HDBaseT Splitter Kit Cascade Connection: The splitter supports cascade connection to distribute video signal to multiple video displays. Use the following connection diagram as a guide for cascading multiple units. Note that each unit must have a unique ID if using RS232 control. Laptop Receiver Remote...
-
Page 13: Ir Control
1x4 HDBaseT Splitter Kit 5. IR Control The IR receivers and emitters can be connected to the system to allow for IR control of remote devices. The bidirectional IR feature provides the two-way control either for the source or display device(s). Use the following sample connection diagrams to connect for IR remote control. -
Page 14: Controlling The Display Device By Ir All In
1x4 HDBaseT Splitter Kit 5.2 Controlling the Display Device by IR ALL IN The IR ALL IN port of the splitter can receive all IR signals from remotes to send to control displays. Connect an IR receiver to IR ALL IN port of the splitter, and then connect four IR emitters to IR OUT port on HDBaseT receivers. -
Page 15: Controlling The Source Device
1x4 HDBaseT Splitter Kit 5.3 Controlling the Source Device The IR OUT port of the splitter can send all IR signals to control source device. Connect four IR receivers to IR IN ports on HDBaseT receivers, and then connect an IR emitter to IR OUT port of the splitter. -
Page 16: Rs232 Control
1x4 HDBaseT Splitter Kit 6. RS232 Control The splitter and compatible receivers features RS232 ports to transmit RS232 signals from computer to control far-end third-party devices by using 3-pin to DB9 cable and a RS232 control software, such as docklight. After installing the RS232 control software, please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly. - Page 17 1x4 HDBaseT Splitter Kit Command Example and Command Function Feedback param1=0~15. The splitter ID 0~9, A~F. @ID:5 param1=ALL. All splitters. @5_V1.x.x @5_RS232_BAUD xxx @5_HDBT_PoC_x_ON/OF @5_SPDIF_ON/OFF @5_I2S_ON/OFF @5_EDID:xxx @5_HDCP:xxx Get EDID DIP switch status. #5_GET_DIP #param1_GET_DIP param1=0~15. The splitter ID 0~9, A~F. @5_EDID:xxx param1=ALL.
- Page 18 1x4 HDBaseT Splitter Kit The following commands do not require end mark. Command Example and Command Function Feedback Send ASCII command to control the far-end #5_SET_A_1_0:ABC12345 third-party device which is connected to the RS232 port of HDBaseT receiver. param1=0~15. The splitter ID 0~9, A~F. param1=ALL.
-
Page 19: Dip Switch Operation
1x4 HDBaseT Splitter Kit 7. DIP Switch Operation 7.1 EDID Management The DIP switch on the front panel can be used to set the EDID to a fixed value to ensure the compatibility in video resolution. The switch represents “0” when in the lower (OFF) position, and it represents “1” while putting the switch in the upper (ON) position. -
Page 20: Hdcp Mode
1x4 HDBaseT Splitter Kit 7.2 HDCP Mode Put switch 4 on “ON” position to select HDCP Active mode, or to “OFF” for HDCP Passive mode. Switch Status Mode HDCP Passive Automatically follows the HDCP version of source OFF (0) (Default) device.
